FANUC Series 16i/18i/21i-TB/MB
SERVO GUIDE Mate Specification
A
-79087EN
Drawing No.
Title
Page
3.3.2 ' SET CHANNEL 'Setup
The measurement axes, the kind of data and unit are set up.
3.3.2.1 Soft key operation to the setup screen (A transition from the 'MEASURE
SETTING' screen)

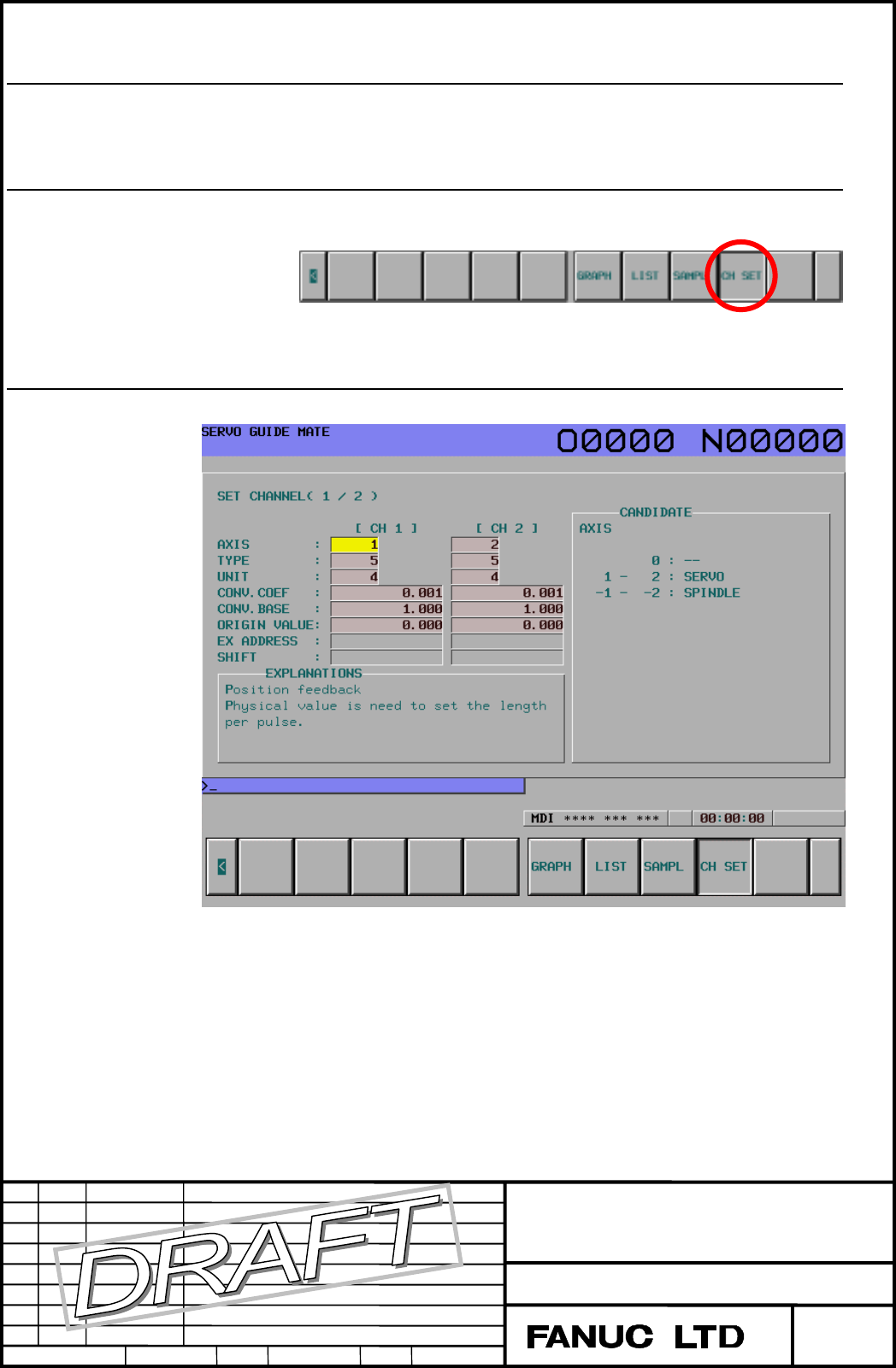

To select soft keys as follows, 'SET CHANNEL' screen is displayed.
(1) [CH SET] is selected.
(2) 'SET CHANNEL' the screen is displayed.
3.3.2.2 Constitution of the screen
Screen (softkey type : 12)
Operation method
Cursor movement :
"↑" "↓" "←" "→" … It moves each direction
"Page↓" … Following page is displayed.
"Page↑" … Preceding page is displayed.
