FANUC Series 16i/18i/21i-TB/MB
SERVO GUIDE Mate Specification
A
-79087EN
Drawing No.
Title
Page

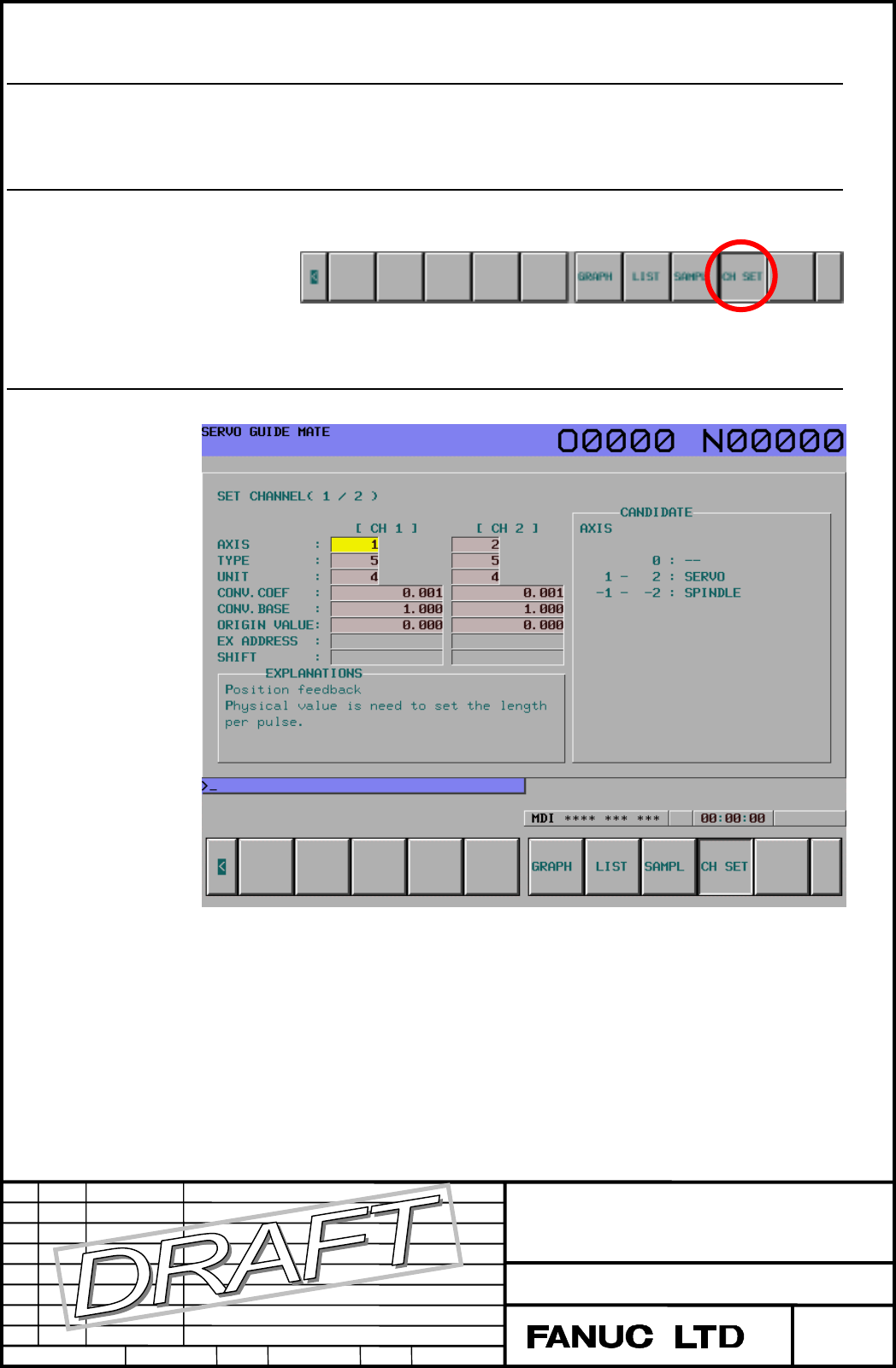

3.4.2 'SET CHANNEL ' Setup
The measurement axis, kind of the data and a unit are set up.
3.4.2.1 Soft key operation to the setup screen (A transition from the 'SET CHANNEL'
screen)
To select soft keys as follows, the 'set channel’ screen is displayed.
(1) [CH SET] is selected.
(2) 'SET CHANNEL' screen is displayed.
3.4.2.2 Constitution of the screen
Screen (softkey type : 12)
Operation method
Cursor movement :
"↑" "↓" "←" "→" … It moves each direction
"Page↓" … Following page is displayed.
"Page↑" … Preceding page is displayed.
