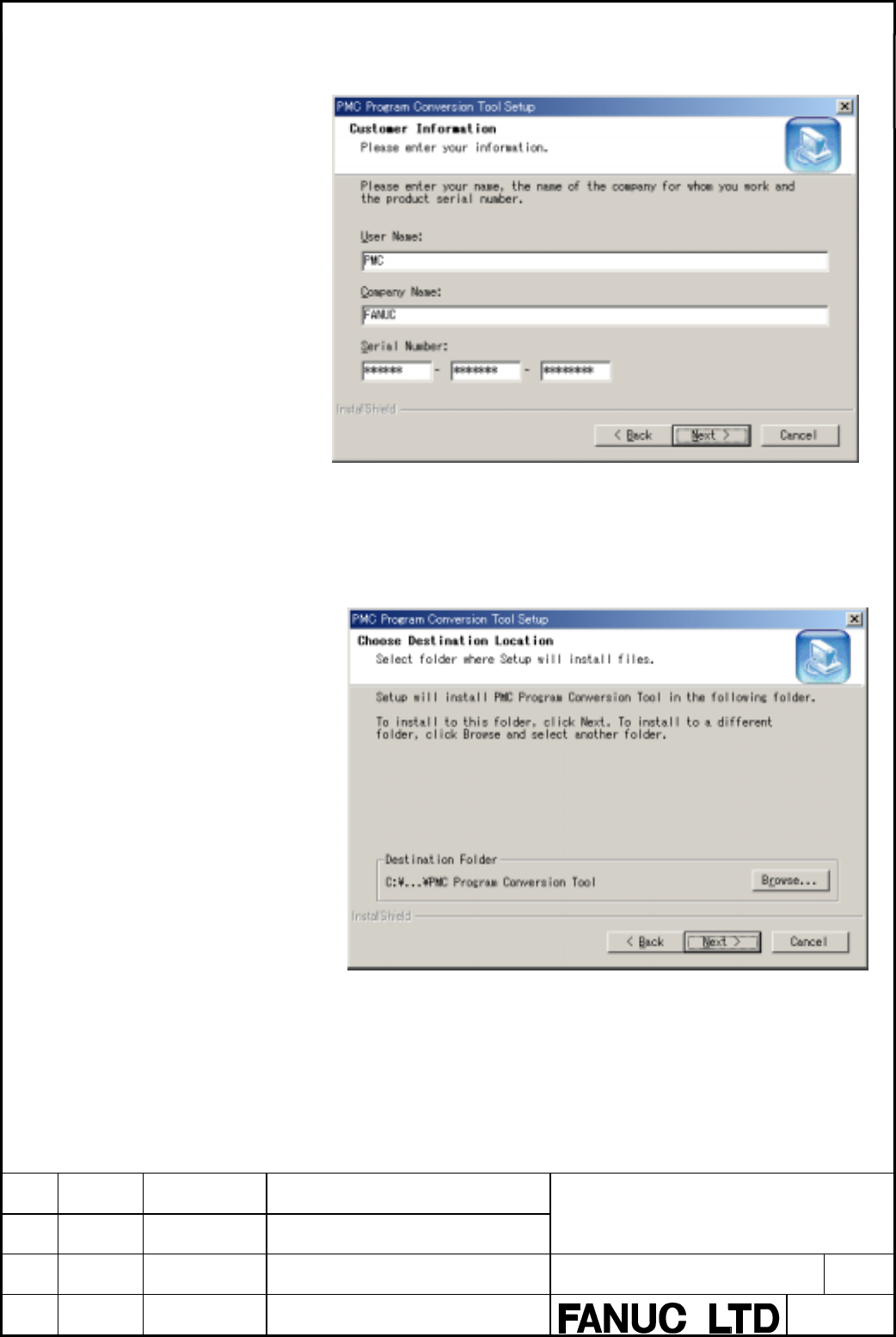

3. Entering user information
- [Customer Information] screen appears.
- Enter the user information and the license serial number enclosed
with the CD, when instructed by the installer.
4. Selecting the installation destination
- [Choose Destination Location] screen appears.
- By default, the program is installed in C:\Program Files\FANUC
PMC Programmer\PMC Program Conversion Tool. To change the
installation destination, click the [Browse...] button, and then select
the installation destination.
- Click <Next> button.
