PMC Program Conversion Tool, Operator Additional Manual Page 66

Additional Manual
PMC Program Conversion Tool
Operator’s Manual
001 04.08.09 M.Ichijo New A-79700E
EDIT
DATE
DESIG.
DESCRIPTION
66/97
TITLE
DRAW.NO.
SHEET
CUST.
TITLE

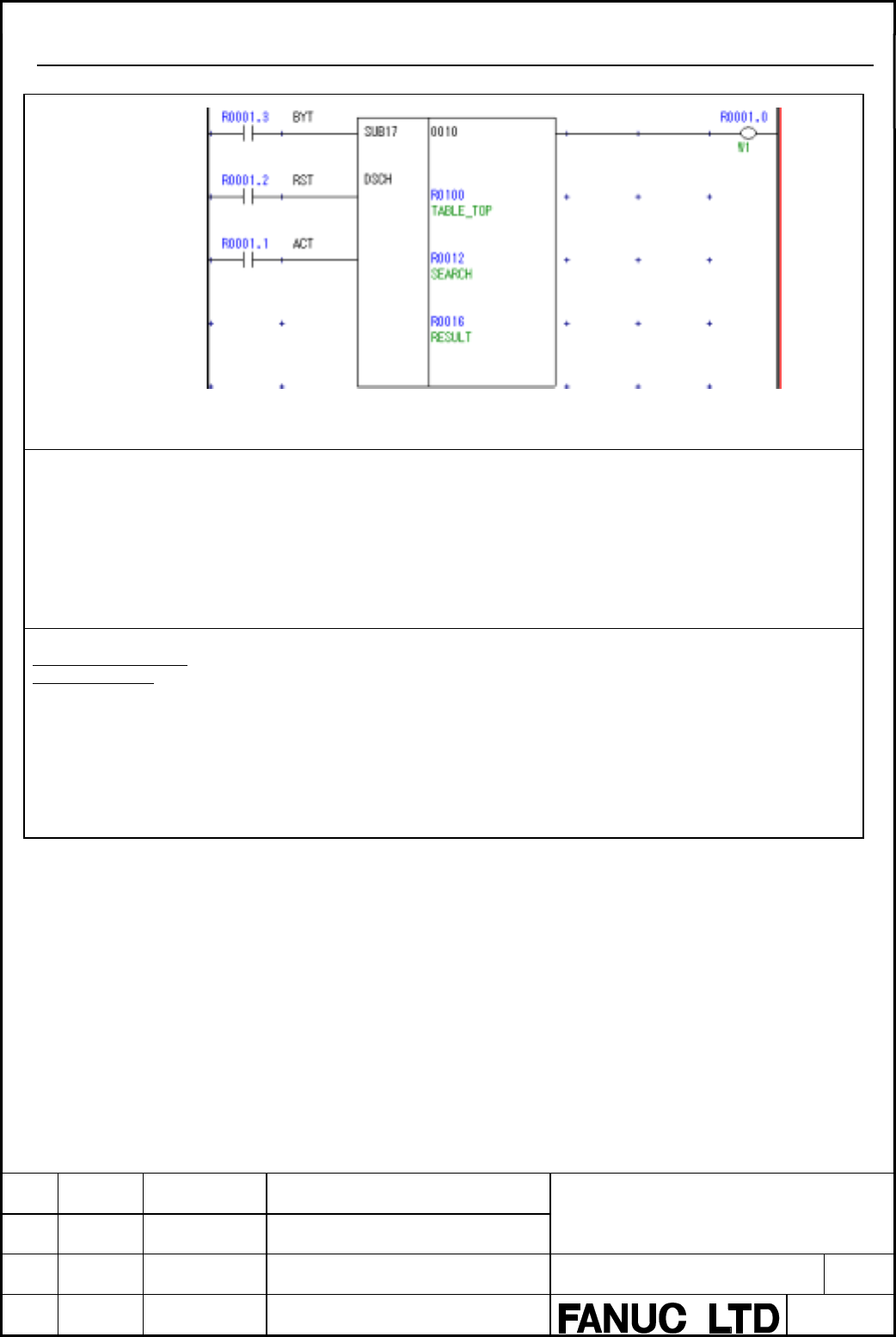

5.4.29 DSCH
PMC-SB7
DSCH
- BYT signal specifies the data size is BCD two digit or four digit.
PMC-SD7
(Not converted)
Not converted.
- Conversion tool cannot decide data size because it is impossible to tell the contents of BYT
signal when conversion.
User’s operations to
finish conversion
Please replace by SEARCH_EQ_(type).
Please note the followings.
- Meaning of ENO of SEARCH_EQ_(type) is opposite to W1 of DSCH.
（ENO is turned on when the function finds data but W1 is turned on when the function
cannot find data.）
- Number of table of SEARCH_EQ_(type) starts from 1 but it starts from 0 in case of DSCH.
- Behavior is different when the data to search is not one in data table.
(SEARCH_EQ_(type) starts the search from the next position of the data last found but
DSCH starts the search from the top of data table every time.
