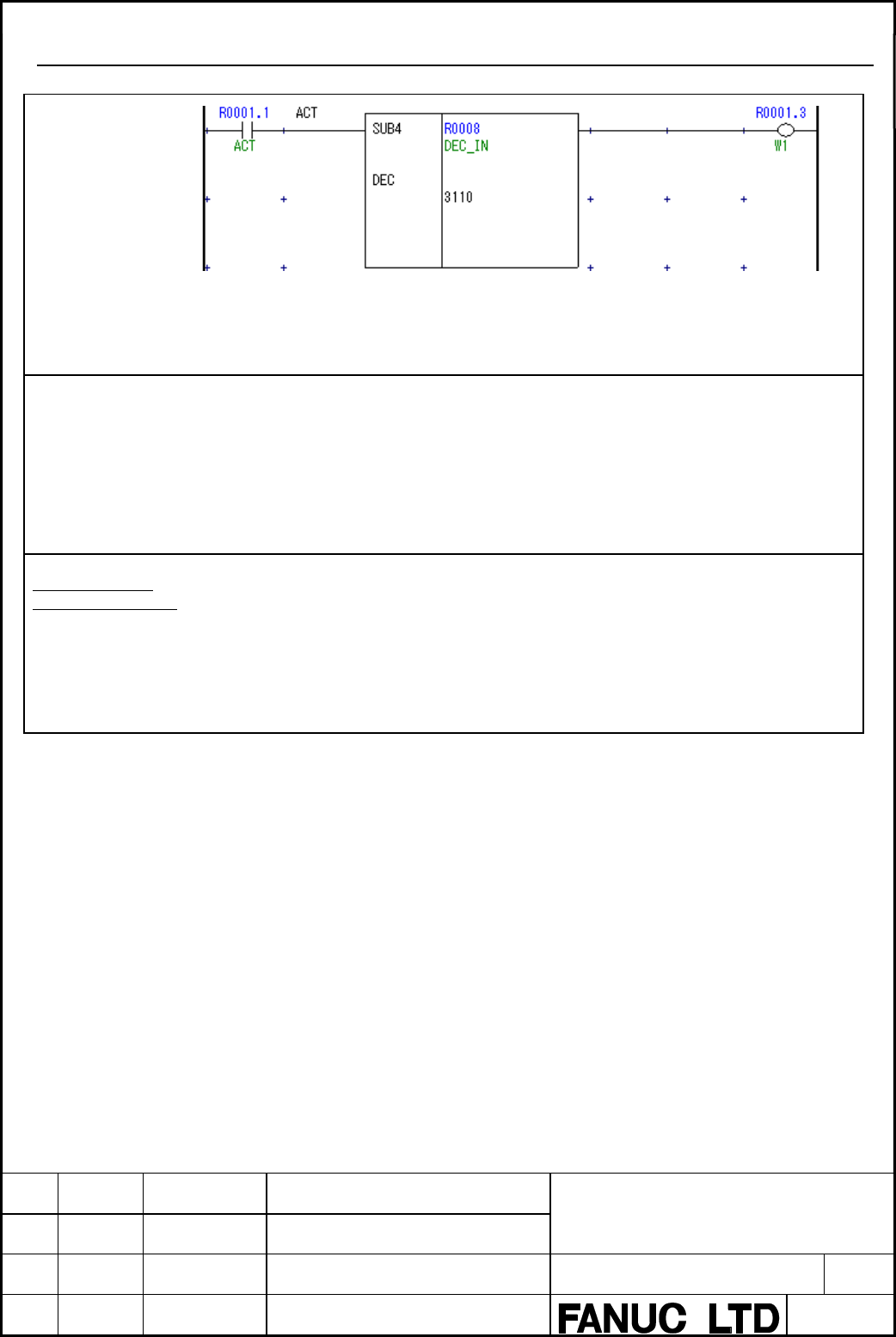

5.4.7 DEC
PMC-SB7
DEC
- Higher two digit of the decode specification specifies the decode number.
- Lower two digit of decode specification specifies the number of digits to decode.
01: Only low-order digit is decoded.
10: Only high-order digit is decoded.
11: Both two digits are decoded.
PMC-SD7
(Not converted)
Not converted.
- PMC_DECODE_(type) does not support BCD value.
User’’ operations
to finish conversion
Please replace with PMC_DECODE_(type).
- Please note that this instruction does not support BCD.
Therefore, following modification might be necessary.
- Convert BCD to decimal number before executes PMC_DECODE_(type) .
- Changing the all part handling BCD around this function to handle decimal number.
