PMC Program Conversion Tool, Operator Additional Manual Page 71

Additional Manual
PMC Program Conversion Tool
Operator’s Manual
001 04.08.09 M.Ichijo New A-79700E
EDIT
DATE
DESIG.
DESCRIPTION
71/97
TITLE
DRAW.NO.
SHEET
CUST.
TITLE

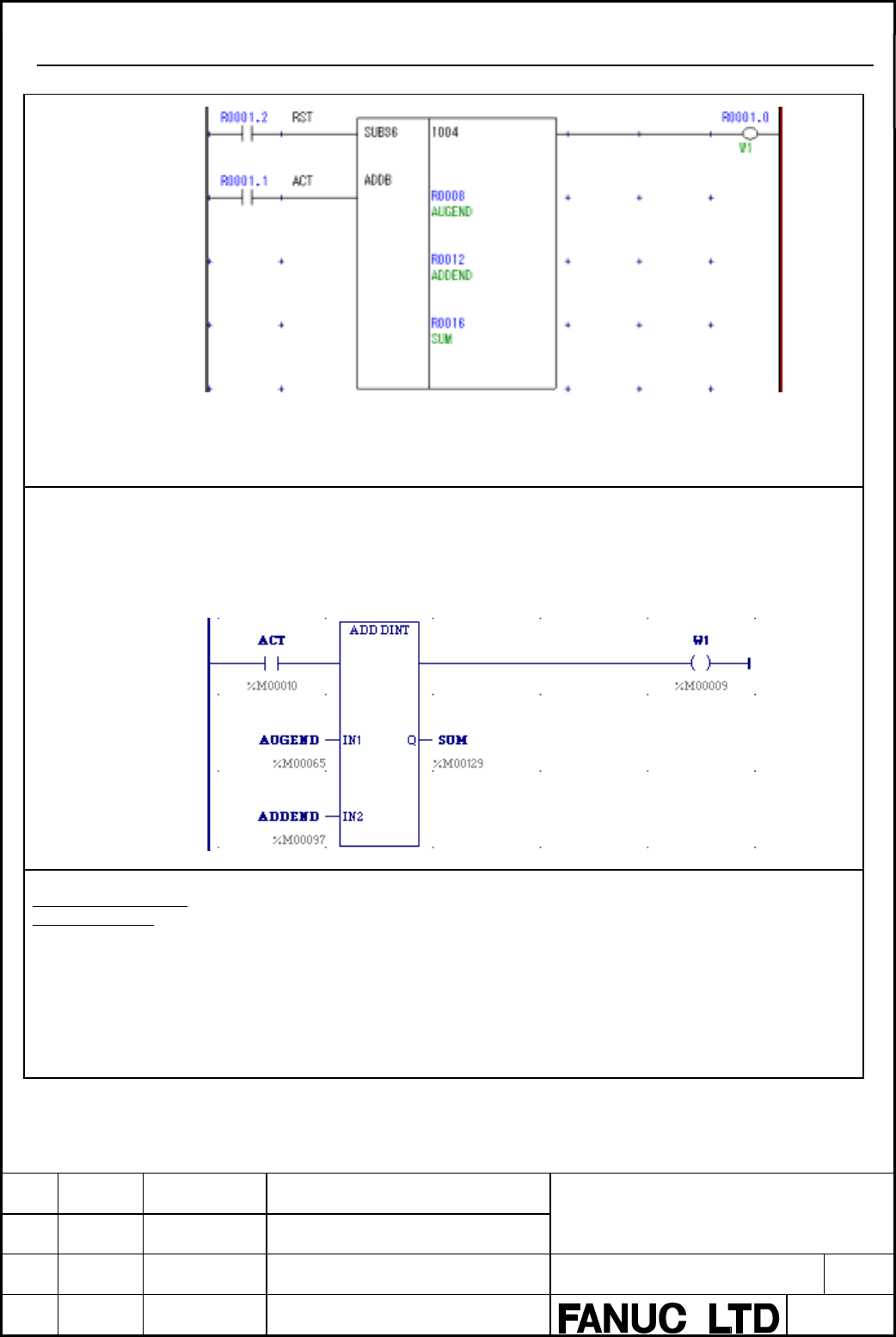

5.4.34 ADDB
PMC-SB7
ADDB
- Whether the addend is constant or a content of address is specified by format parameter of
the instruction.
- Data size is specified by format parameter of the instruction.
PMC-SD7
ADD_SINT
ADD_INT
ADD_DINT
ADDB is converted to ADD_(type).
- Converted instruction is changed according to format specification as follows.
in case of format specification is 1
in case of format specification is 2
in case of format specification is 4
User’s operations to
finish conversion
- Please turn over the ENO coil because the meaning of ENO of ADD_(type) is opposite to
W1 of ADDB.
（ENO of ADD_(type) is turned on when process is normally end but W1 of ADDB is
turned on when error occurs.
Operation output register is not supported.
- If zero flag and negative flag are needed, please made them by using EQ_(type), LT_(type)
and so on.
