PMC Program Conversion Tool, Operator Additional Manual Page 69

Additional Manual
PMC Program Conversion Tool
Operator’s Manual
001 04.08.09 M.Ichijo New A-79700E
EDIT
DATE
DESIG.
DESCRIPTION
69/97
TITLE
DRAW.NO.
SHEET
CUST.
TITLE

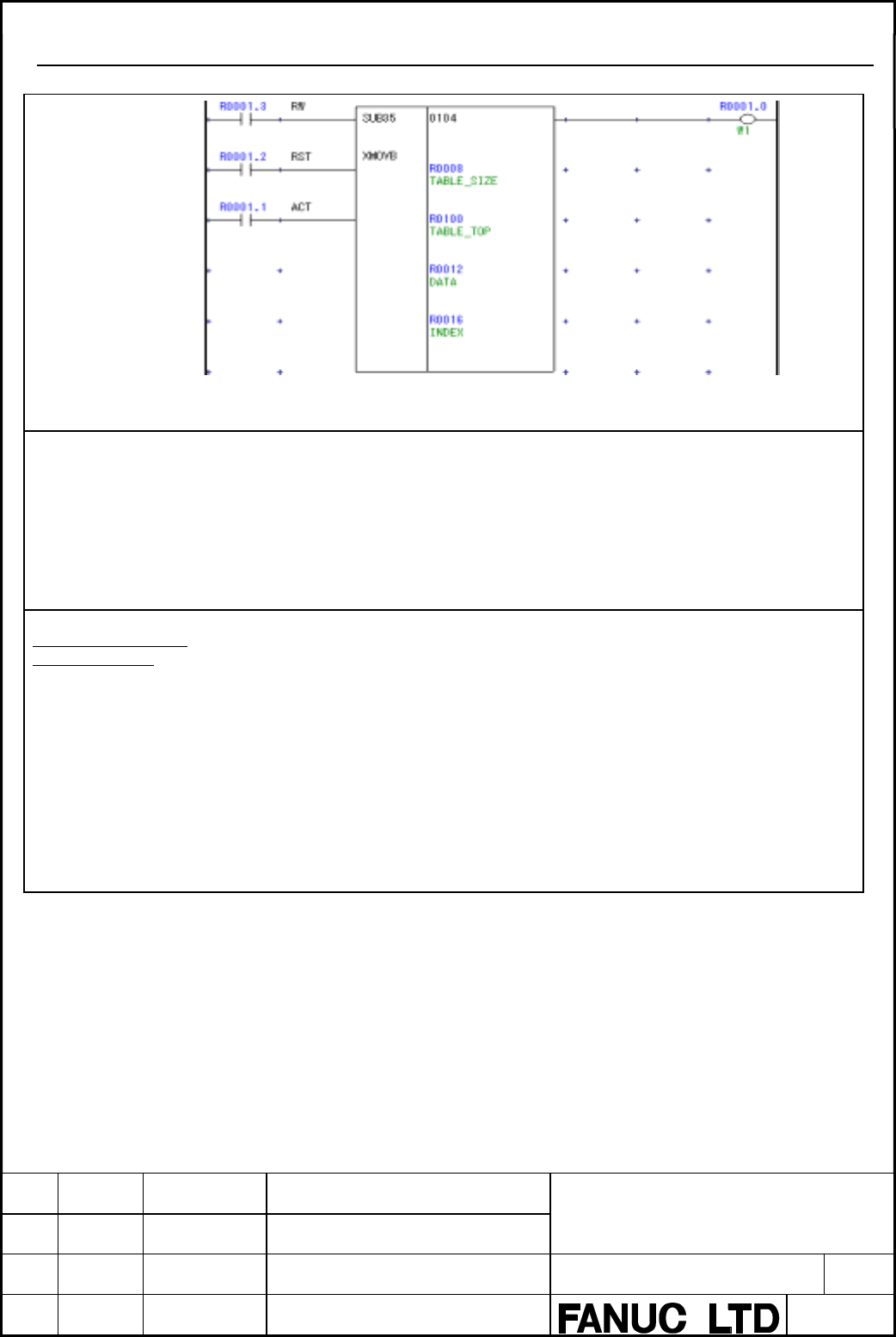

5.4.32 XMOVB
PMC-SB7
XMOVB
- Data size is specified by format parameter of the instruction.
- RW signal specifies whether the data is read from table or writes to table.
PMC-SD7
(Not converted)
Not converted.
- Conversion tool cannot decide read/write because it is impossible to tell the contents of RW
signal when conversion.
User’s operations to
finish conversion
Please make similar function by using ARRAY_MOVE_(type).
Please note the followings.
- Meaning of ENO of ARRAY_MOVE_(type) is opposite to W1 of XMOVB.
（ENO is turned on when process is normally end but W1 is turned on when error occurs.）
- Number of table of ARRAY_MOVE_(type) starts from 1 but it starts from 0 in case of
XMOVB.
- Table size of ARRAY_MOVE_(type) is specified by constant but it is specified by content of
address in case of XMOVB.
- In case XMOVB is used with extended specification.
If the specified plural area to read or write is continuous area, the same function can be
done by ARRAY_MOVE_(type). However, the area does not continue, it cannot be realized
by ARRAY_MOVE_ (type).
