PMC Program Conversion Tool, Operator Additional Manual Page 55

Additional Manual
PMC Program Conversion Tool
Operator’s Manual
001 04.08.09 M.Ichijo New A-79700E
EDIT
DATE
DESIG.
DESCRIPTION
55/97
TITLE
DRAW.NO.
SHEET
CUST.
TITLE

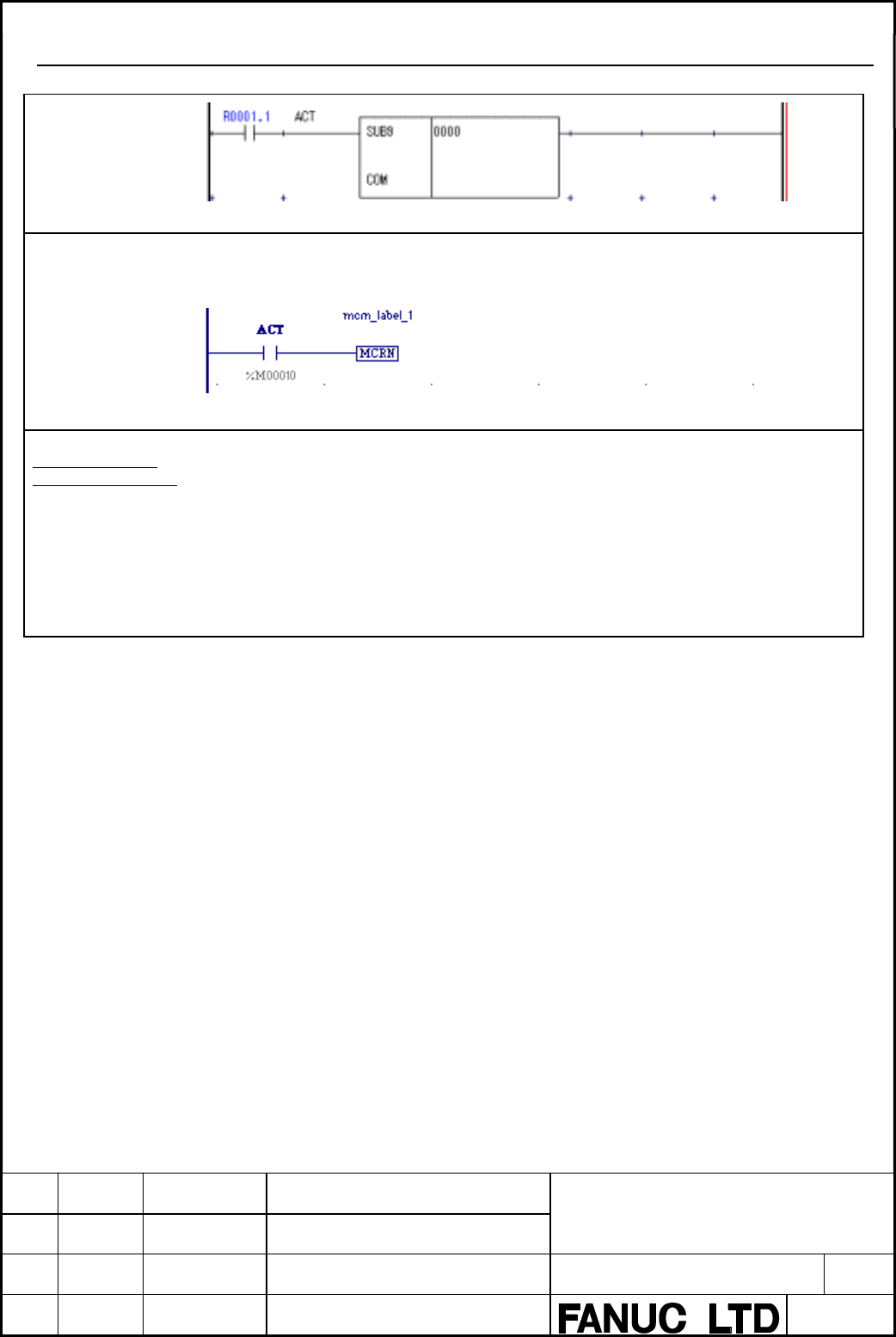

5.4.18 COM
PMC-SB7
COM
PMC-SD7
MCRN
COM is converted to MCRN.
- Label name is defined to 'mcrn_label**' automatically by conversion tool.
User’s operations
to finish conversion
Please turn over logic of EN of MCRN because meaning of it is opposite to ACT of COM.
. COM ACT=1: No processing is performed
ACT=0: Coil between COM and COME is turned off.
MCRN EN=1: EN between MCRN and ENDMCRN is turned off.
EN=0: No processing is performed.
Please confirm the movement of nets between MCRN and ENDMCRN.
- There are some differences of specification like following.
Function between MCRN and ENDMCRN works as EN=0.
Function between COM AND COME works according to ACT but W1 is not turn on.
