5.4.39 NUMEB
PMC-SB7
NUMEB
- Data size is specified by format parameter of the instruction.
- Format specification specifies follows.
0nn1: 1byte signed binary, nn specifies the multiple number of data array
0nn2: 2byte signed binary
0nn4: 4byte signed binary
PMC-SD7
MOVE_SINT
MOVE_INT
MOVE_DINT
NUMEB is converted to MOVE_(type).

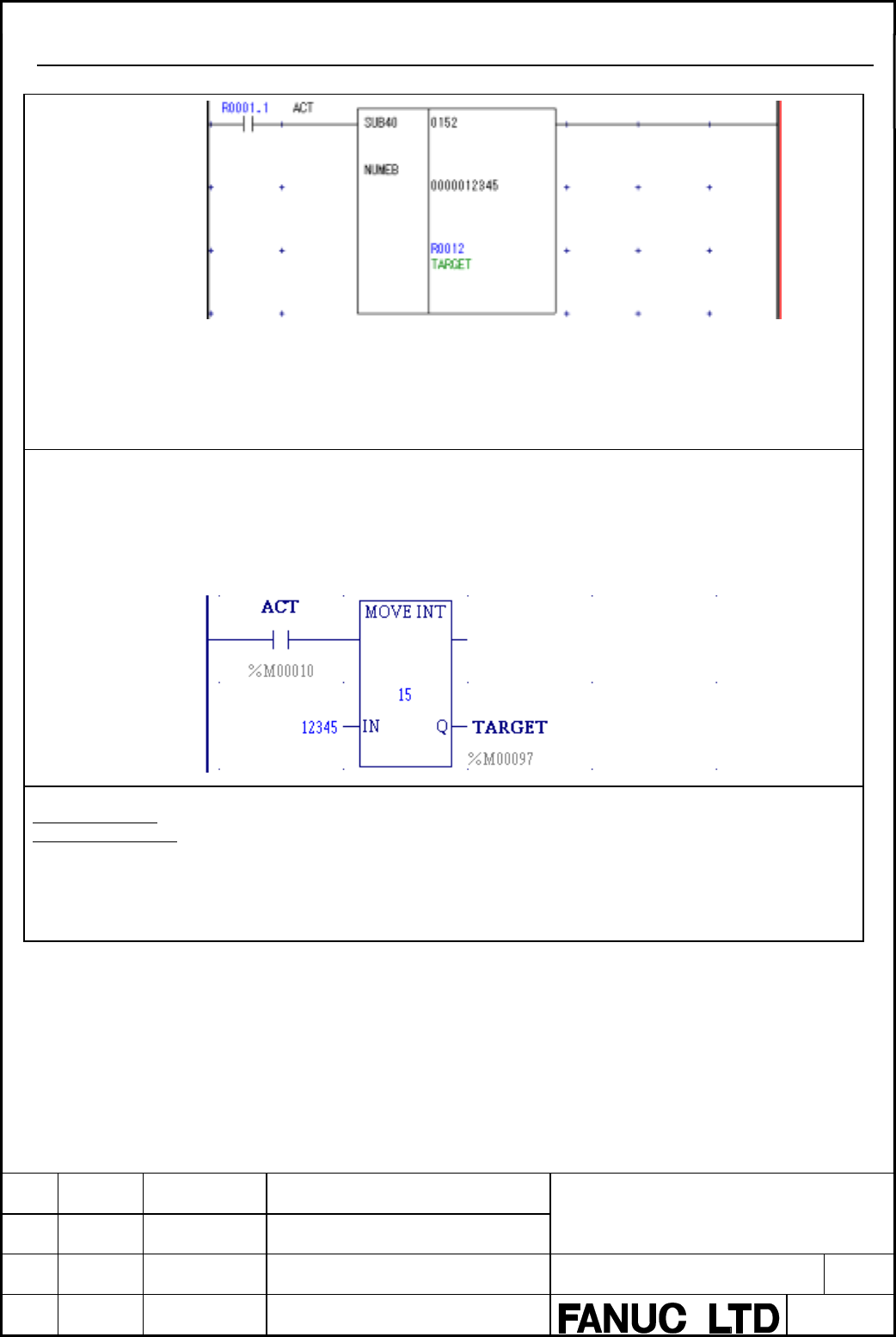

- Converted instruction is changed according to format specification as follows.
in case of format specification is 1
in case of format specification is 2
in case of format specification is 4
- nn is specified to len of MOVE_(type).
User’s operations
to finish conversion
No operation is needed.
