7. SERVO INTERFACE
97
NOTE
The +5V signals above can be used to feed power to linear
scales. The supply current per linear scale is 0.35 A
maximum.
Minimum tolerance to 5 V: 4.95 V for main unit and 4.9 V
for expanded section
(Parallel interface)
D For incremental detector
1 PCA
2 *PCA
3 PCB
4 *PCB
11
12 0V
13
14 0V
5 PCZ
6 *PCZ
7 +6V
8 REQ
15
16 0V
17
18 +5V
9 +5V 19
JF101 to JF104
(PCR–EV20MDT)
10 20 +5V
SHIELD
GROUNDING PLATE

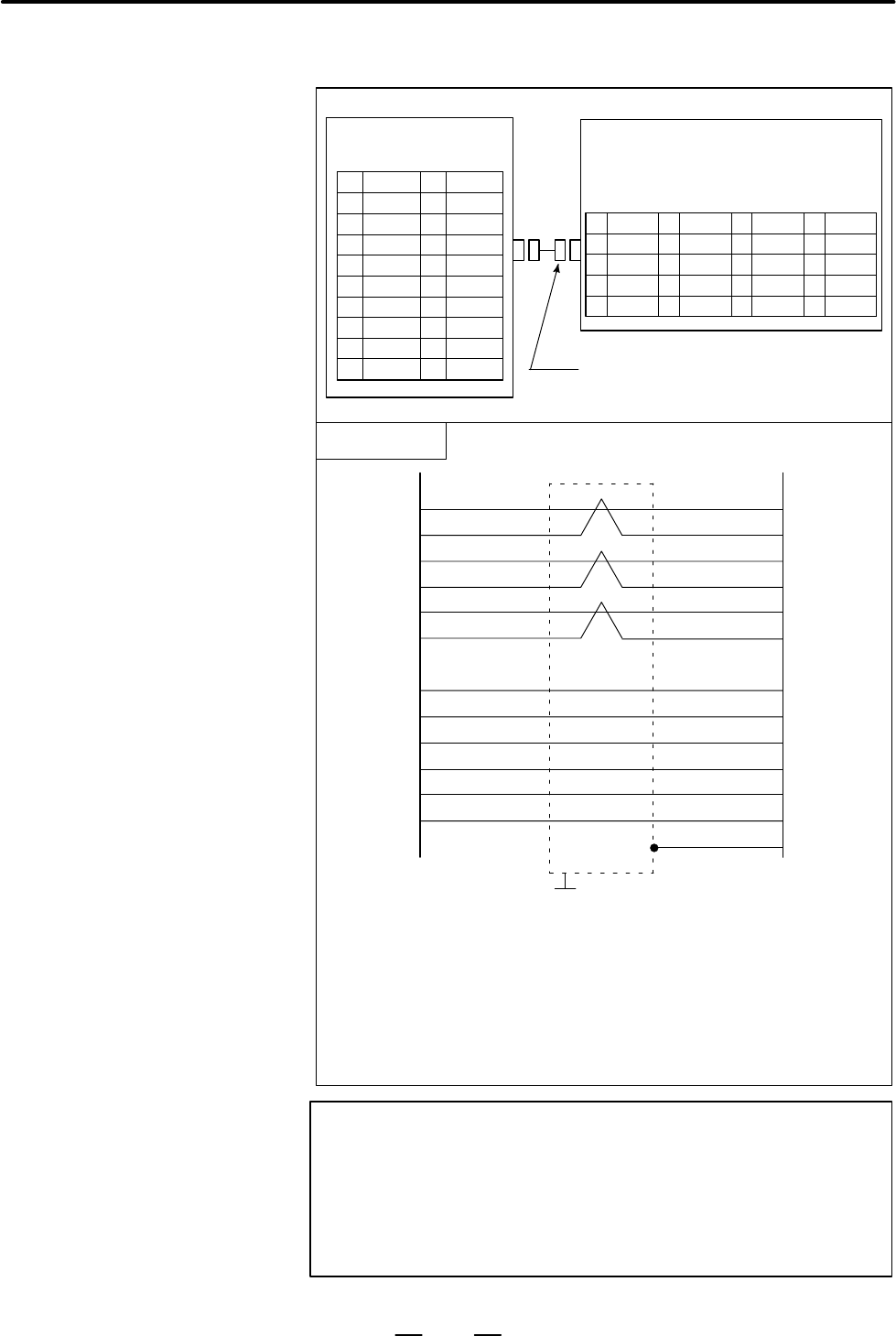

Cable wiring
Stand–alone type detector
1
2
PCA
*PCA
PCA
*PCA
3
4
PCB
*PCB
PCB
*PCB
5
6
PCZ
*PCZ
PCZ
*PCZ
+5V
+5V
9
18
+5V
0V
+5V
+5V
20
12
0V
0V
0V
RECOMMENDED CABLE MATERIAL
A66L–0001–0286 (#20AWG 6 + #24AWG 3–pair)
A PCA B PCB C +5V D *PCA
E *PCB F PCZ G *PCZ H SHLD
J +5V K +5V L M
N 0V P 0V R S
T 0V
A
D
B
E
F
G
C
J
K
N
P
T
H
14
16
0V
SHLD
(Shield)
Pulse coder
(MS3102A–20–29P)
MS3106B20–29SW
REQ is not used.
+5V
0V
Separate detector interface unit
Recommended connectors:
PCR–E20FA (Honda Tsushin Kogyo)
FI30–20S (Hirose Electric)
FCN–247J020–G/E (Fujitsu)
52622–2011 (Molex)
FI40B–2015S (Hirose Electric)
