20i-MB Connection manual (Hardware) Page 224

Connection manual (Hardware)
8. CONNECTION TO FANUC I/O Link
B–64193EN/01
212

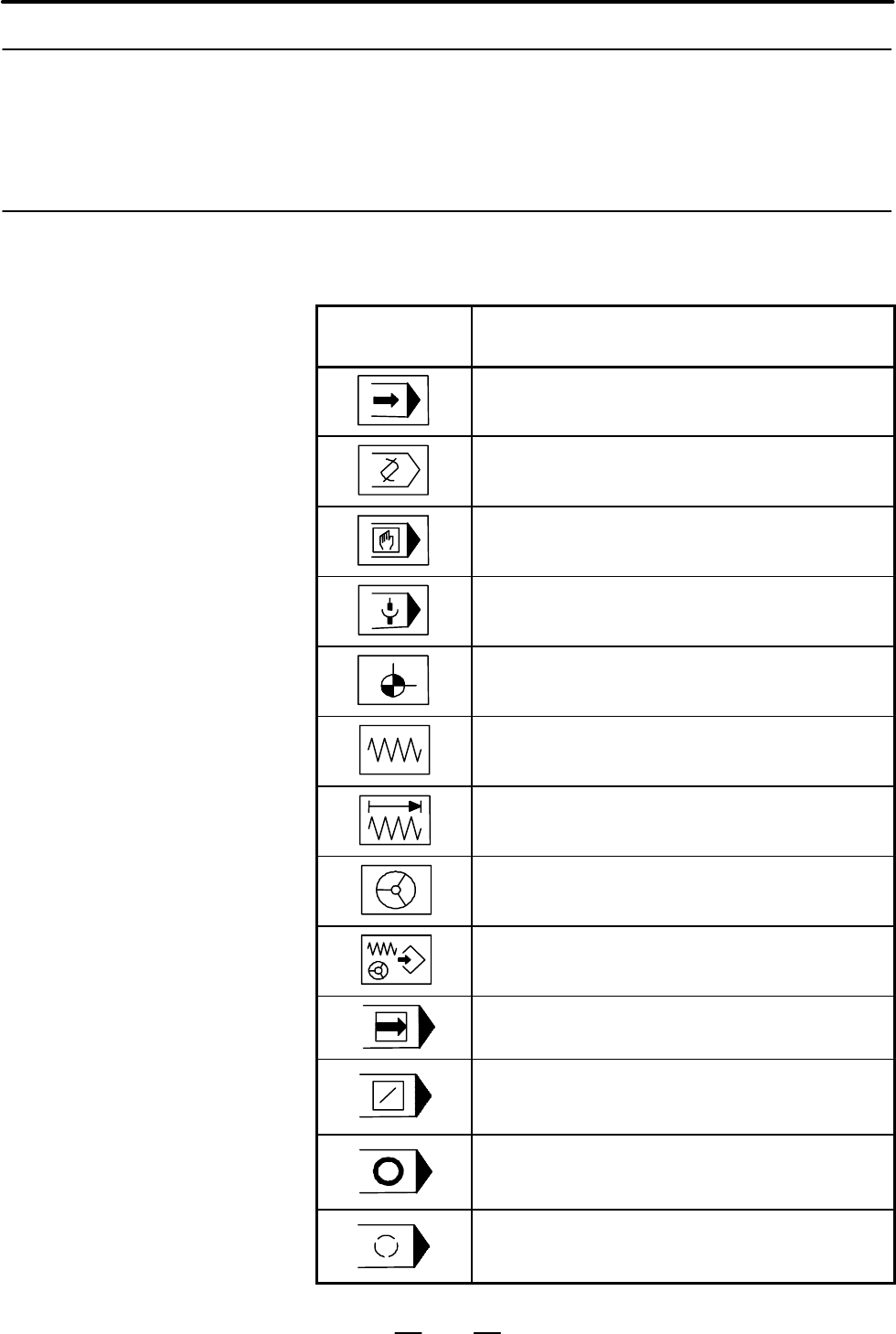

Symbol
indication
Meaning of key
AUTO mode selection signal; Sets automatic operation
mode.
EDIT mode selection signal; Sets program edit operation
mode.
MDI
mode
selection;
Sets
MDI
mode.
DNC operation mode; Sets DNC operation mode.
Reference position return mode selection; Sets reference
position return mode.
JOG feed mode selection; Sets jog feed mode.
Step
feed
mode
selection;
Sets
step
feed
mode.
Manual handle feed mode selection; Sets manual handle
feed mode.
Teach–in jog (reach–in handle) mode selection signal;
Sets teach–in jog (teach–in handle) mode.
Single block signal; Executes program one by one. This
key is used to check a program.
Block delete; Skips the execution of the blocks ending
with the end of block (;) when this button is pressed during
automatic operation.
Program stop(output only); Turns on the LED on the
button when automatic operation is stopped by M00
specified in the program.
Optional stop; Stops automatic operation after execution
of the block of a program where M01 is specified in the
program.
8.8.8
Key Symbol Indication
on Machine Operator’s
Panel
8.8.8.1
Meaning of key symbols
