10. REMOTE BUFFER INTERFACE

B–64193EN/01

222

When the remote buffer is connected to the host computer or input/output

device via serial interface, a great amount of data can be sent to CNC

consecutively at a high speed.

RESET

FILE

PROTECT

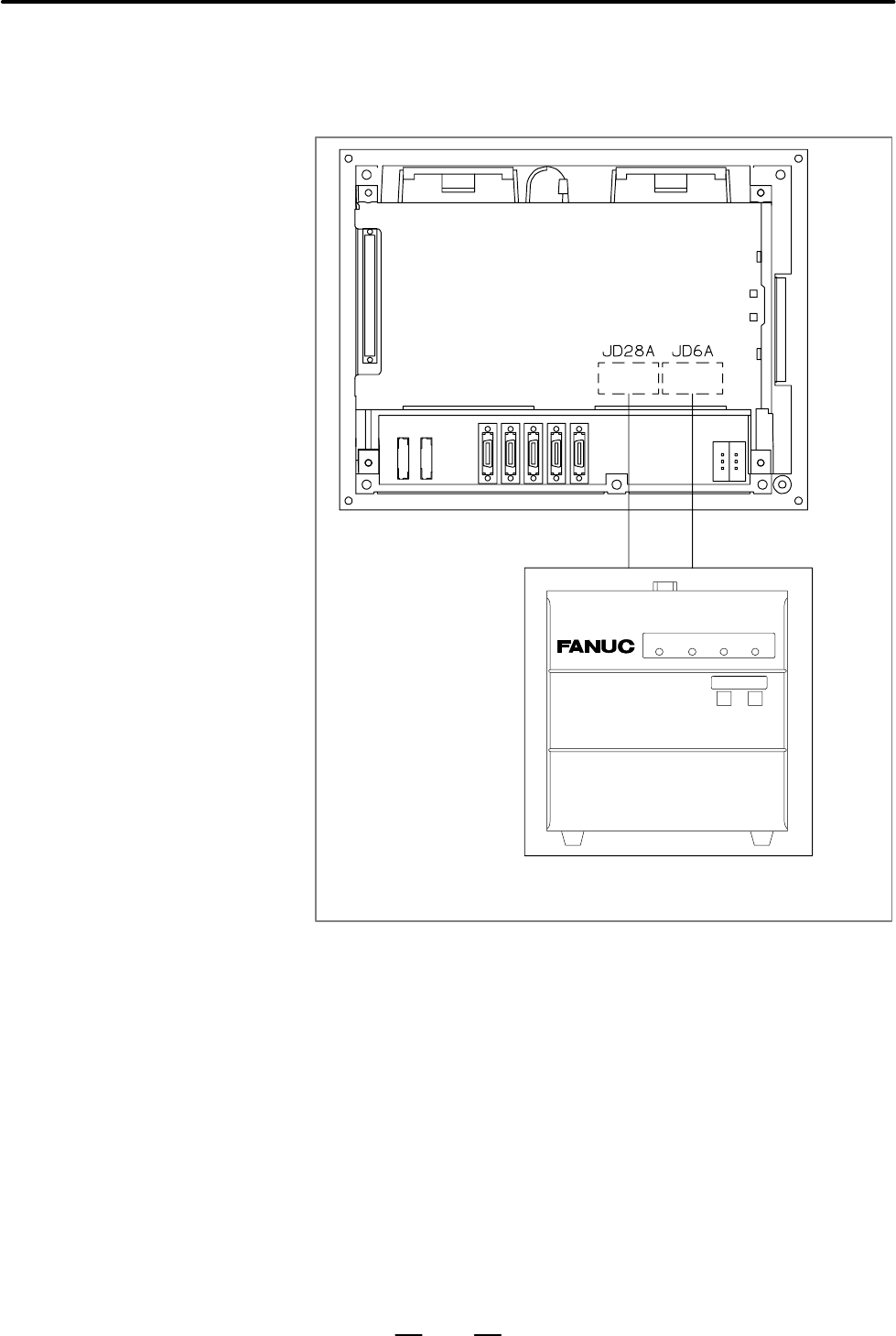

Use either the RS–232–C or RS–422 interface.

(Case of Remote Buffer)

RS–232–C

interface

FILE

PROTECT

POWER READY ALARM

RS–422

interface

The remote buffer enables the following operations:

D When connected to the host computer online, it performs DNC

operation with high reliability and at a high speed.

D The CNC program and parameters can be down–loaded from the host

computer.

D When connected to an input/output device, it enables DNC operation,

and various data can be down–loaded. The following input/output

devices can be connected.

- FANUC PPR

- FANUC FA Card

- FANUC FLOPPY CASSETTE

- FANUC PROGRAM FILE Mate

- FANUC Handy File

10.1

GENERAL
