For the cabling diagram, see the control unit configuration and
component names in Section 1.1.
The cabinet and pendant box that house a display and a operator’s panel
that are to be designed and manufactured by the machine tool builder are
susceptible to dust, cutting debris, oil mist, etc. Note the following and
make sure that they are structured to prevent their entry.
1) The cabinet and pendant box must be of a hermetically sealed
structure.
2) Apply packing to the panel mounting surface to which a display and
operator’s panel are to be mounted.
3) Make sure that the door packing of the cabinet and pendant box is
sealed firmly.
4) For a cabinet or pendant box with a rear cover, apply packing to the
mounting surface.
5) Make sure that the cable entrance is sealed with packing, connectors
for conduits, etc.
6) Make sure that all other openings are blocked, if any.
7) Make sure that the display and operator’s panel do not receive cutting
debris and coolant directly.
8) Oil can easily stay on the top of the cabinet and pendant box, possibly
dripping down the display and operator’s panel. Make sure that the
cabinet and pendant box is of such a structure that oil do not collect
or that oil do not drip down the display or panel.

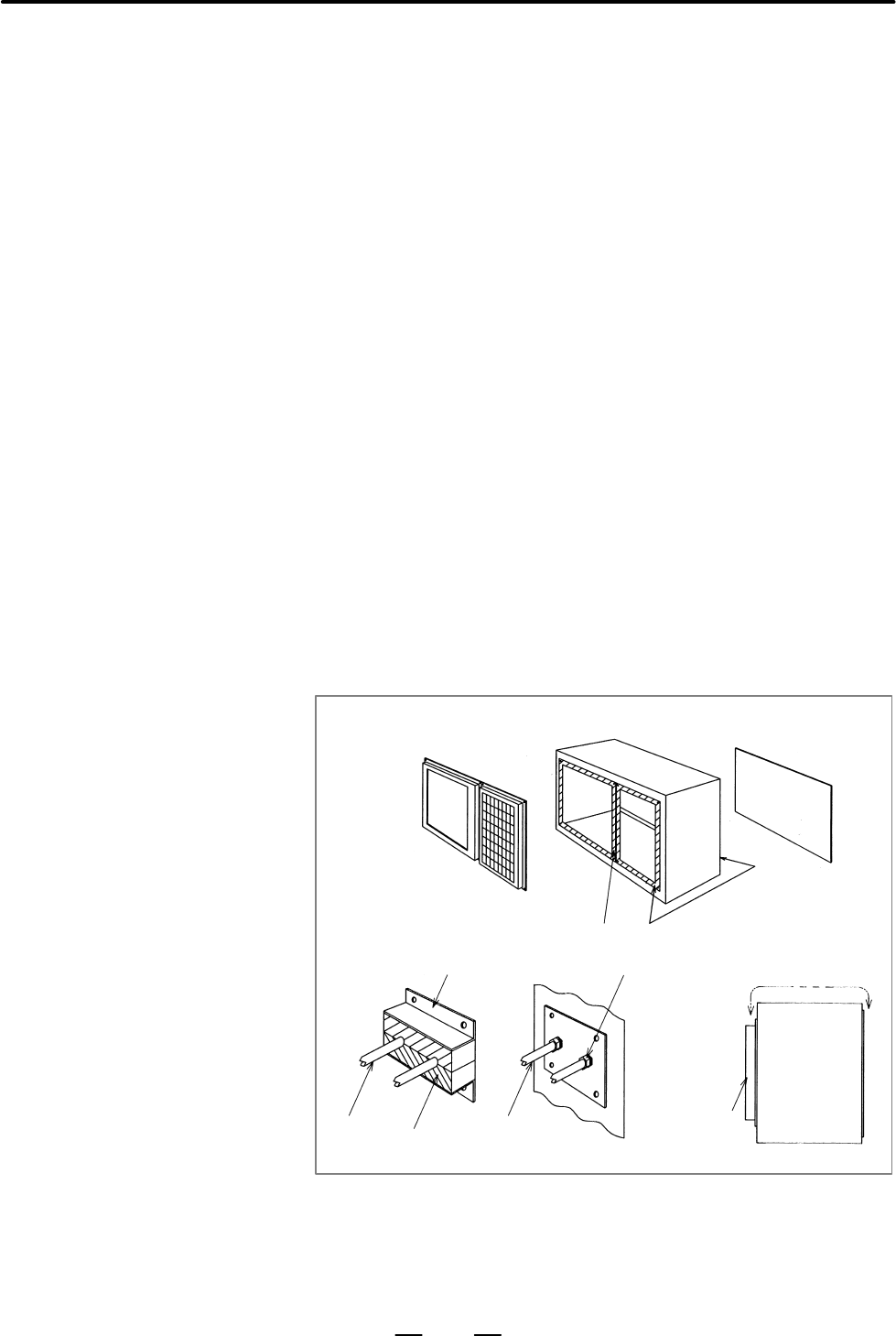

Panel (display/
operator’s panel)
Cabinet/pendant box
Panel (rear cover)
If the frame is weak, reinforce it.
Apply packing.
Cable entrance (example)
Hardware
Cable
Packing
Cable
Connector for conduit
Beware of collection of oil.
Oil must not collect or drip.
Display/
operator’s
panel
3.7
CABLING DIAGRAM
3.8
DUSTPROOF
MEASURES FOR
CABINETS AND
PENDANT BOXES
