B–64193EN/01

4. POWER SUPPLY CONNECTION

(1)Prepare a new lithium battery (ordering drawing number:

A02B–0200–K102).

(2)Turn the CNC on for about 30 seconds.

(3)Turn the CNC off.

(4)Remove the old battery from the top of the CNC control unit.

First unplug the battery connector then take the battery out of its case.

The battery case of a control unit without option slots is located at the

top right end of the unit. That of a control unit with 2 slots is located

in the central area of the top of the unit (between fans).

(5)Insert a new battery and reconnect the connector.

NOTE

Steps (3) to (5) should be completed within 30 minutes. Do

not leave the control unit without a battery for any longer

than the period shown, as this will result in the contents of

memory being lost.

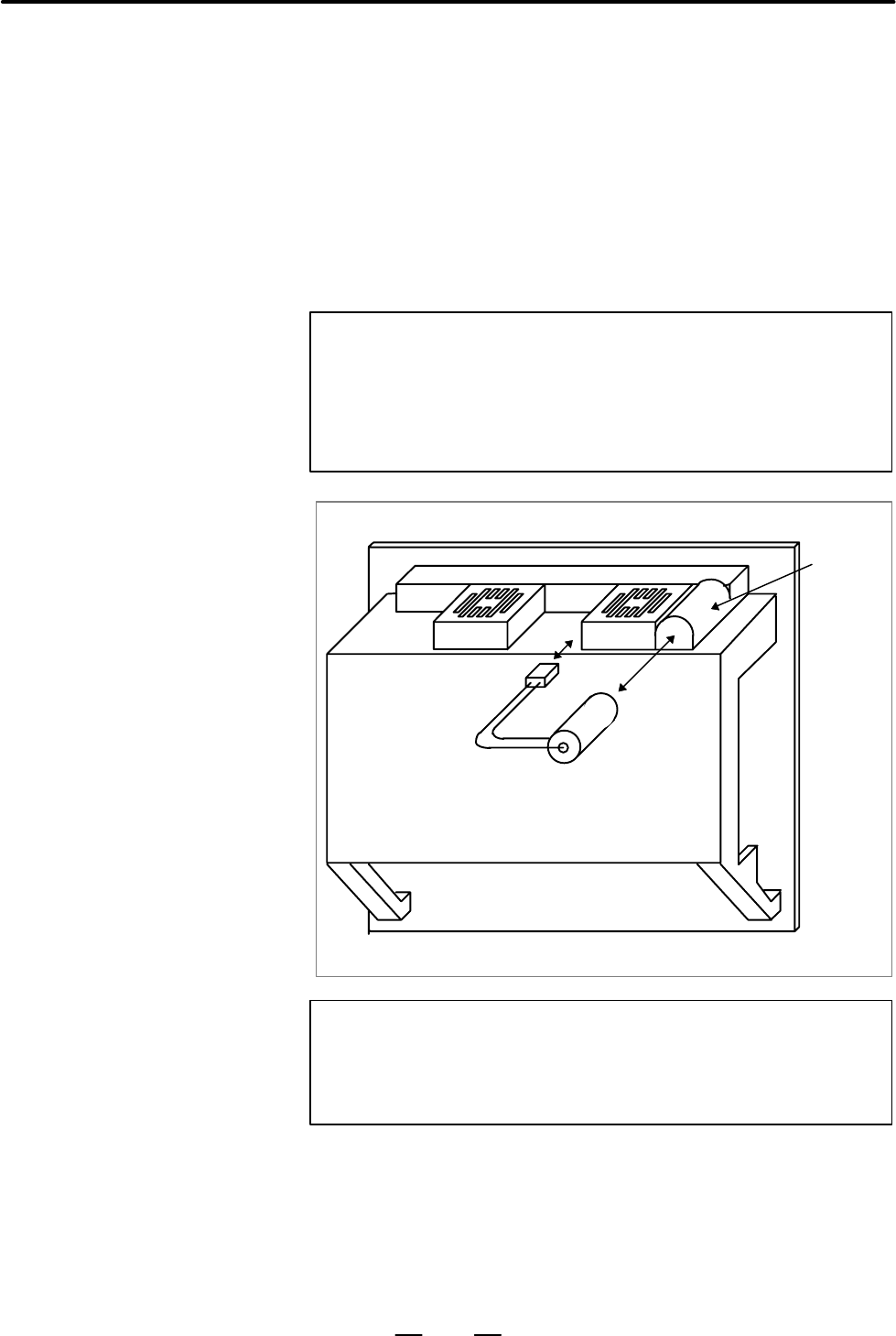

Lithium battery

A02B–0236–K102

Battery

case

Connector

WARNING

Incorrect battery replacement may cause an explosion. Do

not use a battery other than that specified (specification:

A02B–0200–K102).

Replacing the lithium

battery
