Series 0i/0i Mate - Model B Maintenance manual Page 255

Maintenance manual

Page of 719

/ 719

B–63835EN/03

2. HARDWARE

231

(1)After a lapse of five minutes from power up, power off the CNC

display unit with PC functions or the PANEL i. Then remove the CNC

display unit with PC functions or the PANEL i from the panel so that

it can be accessed from the back.

(2)Remove the connector for the lithium battery, then remove the battery

from the battery holder.

(3)Within five minutes, plug the connector (BAT1) for a new battery and

insert a new battery.

(4)Reinstall the CNC display unit with PC functions or the PANEL i.

(5)Turn on the power and make sure the BIOS parameter is not cleared

(no error occurs during startup).

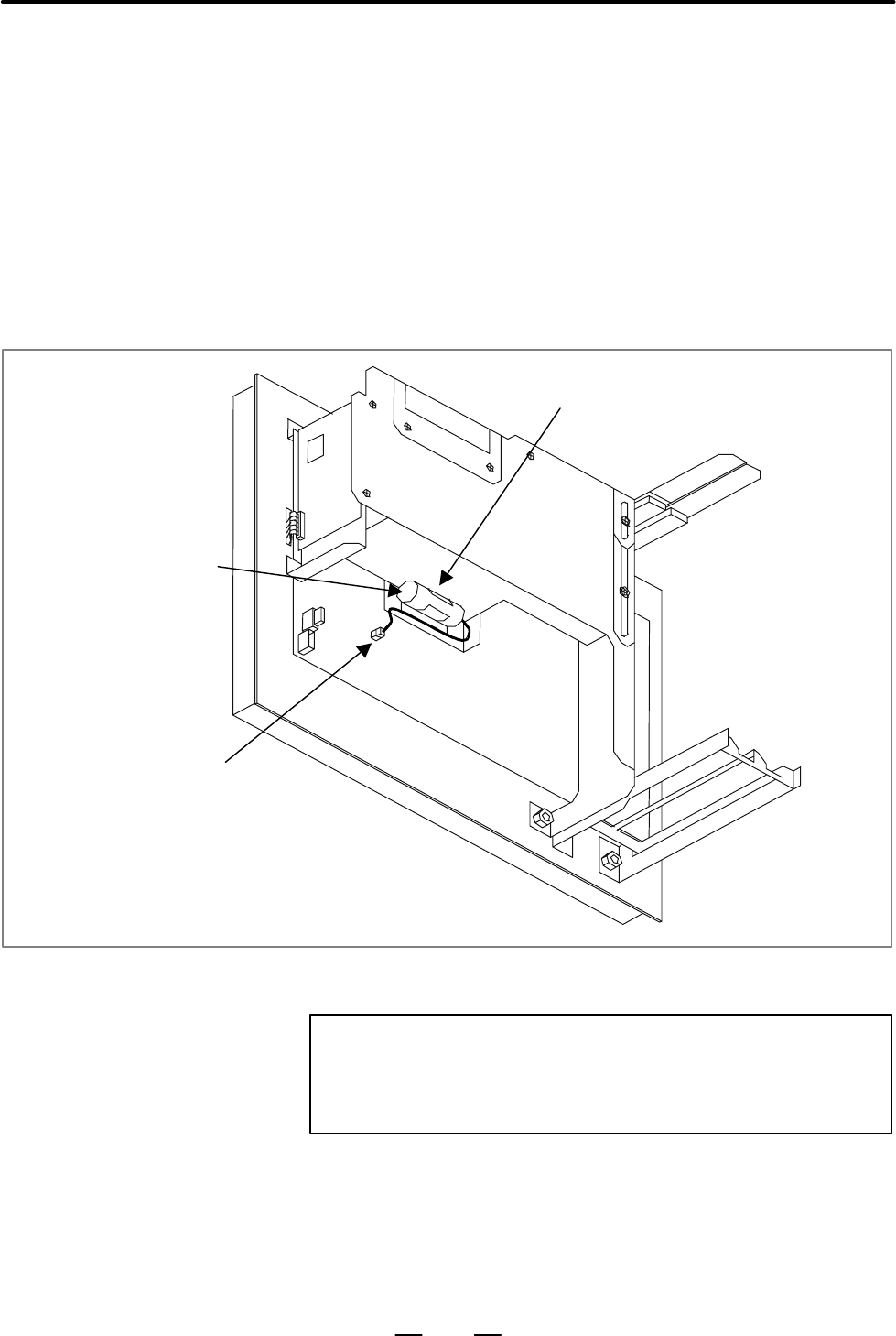

Battery holder

Lithium battery

A02B–0200–K102

Connector

(BAT1)

Fig. 2.20.1 Replacing the battery

NOTE

It must not take more than five minutes from the time the old

battery is removed until the connector for the new battery is

plugged into the connector.

D Replacing method
