Series 0i/0i Mate - Model B Maintenance manual Page 352

Maintenance manual

Page of 719

/ 719

4. INTERFACE BETWEEN CNC AND PMC

B–63835EN/03

328

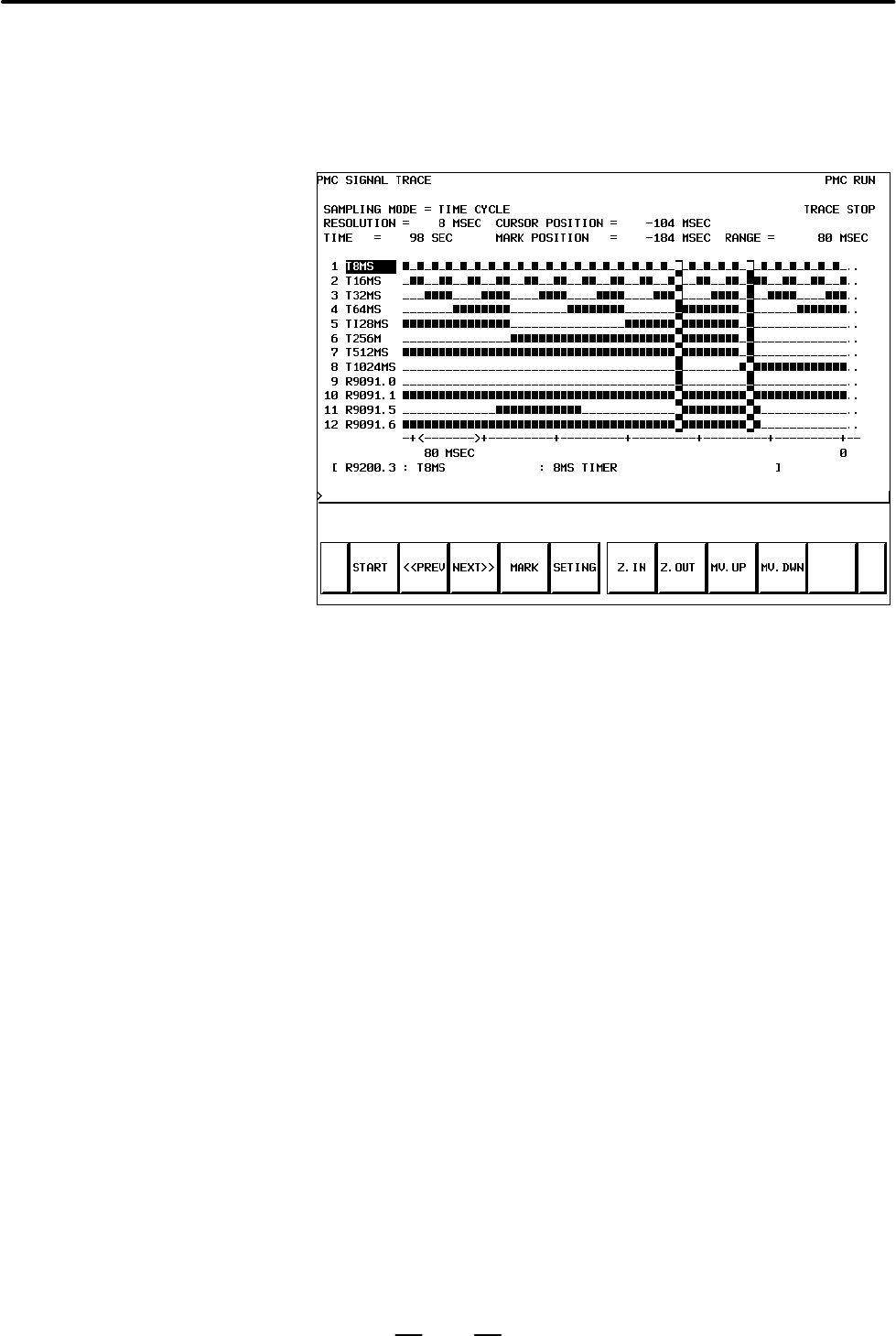

(3)Trace screen

<1> Press the system key, then press the [PMC] soft key.

<2> Press the [PMCDGN] soft key.

<3> Press the [TRACE] soft key.

(a) Executing trace operation

[START] : Executes trace operation.

(b)Stopping trace operation

[STOP] : Stops trace operation. Trace operation

ends also when the trace stop

condition set on the trace parameter

setting screen is satisfied.

Upon completion of trace execution, the results of trace

operation can be checked.

D Scrolling display

Cursor up/down key, page switch key:

Scrolls the set sampling signal

addresses up and down.

[<<PREV], [NEXT>>] Soft key, current right/left key:

Scrolls the graphical display of trace

results right and left.

D Performing automatic calculation and display of a selected

range

[MARK] : Marks the current cursor position, and

displays the mark cursor. To cancel

the range selection, press the [MARK]

soft key again.

D Enlarging/reducing display of trace results

[Z.IN]/[Z.OUT] : Enlarges/reduces graphical display.
