4. INTERFACE BETWEEN CNC AND PMC

B–63835EN/03

318

<1> Press the [SEARCH] soft key on the ladder diagram

display screen.

<2> Move the cursor to the ladder net to be read.

<3> Press the [PICKUP] soft key.

(4)Jumping to a ladder diagram on the ladder diagram display screen

[JUMP]

Make a jump by finding, on the ladder diagram display screen, the

ladder net where the cursor is placed on the selection monitor screen.

<1> Move the cursor to the net to which you want to jump.

<2> Press the [JUMP] soft key.

(5)Switching to the ladder diagram display screen [SWITCH]

The screen display can be switched to the ladder diagram display

screen.

(6)Deleting the display of one ladder diagram net [ERASE]

One ladder net read into the selection monitor screen can be erased

from the screen.

(7)Deleting the display of all ladder diagram nets [ERALL]

All ladder nets read into the selection monitor screen can be erased

from the screen.

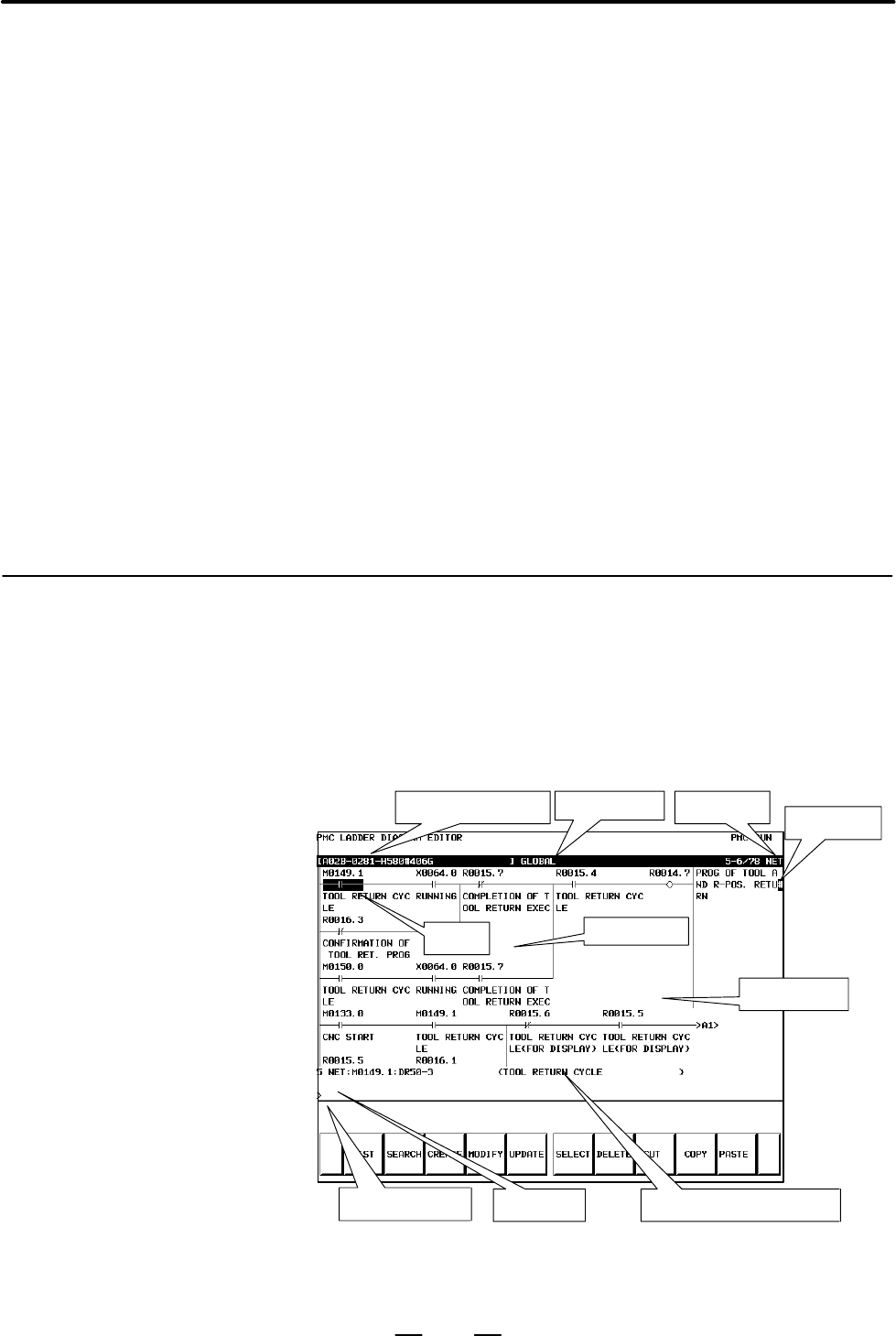

On the ladder diagram editing screen, a ladder diagram can be edited to

change its operation.

(1)Display method

<1> Display the ladder diagram monitor display screen by pressing

the [PMCLAD] soft key.

<2> Press the [EDIT] soft key.

(2)Display information

Title information (remarks)

Display program

Display position

information

Display position

gage

Cursor

Ladder diagram

display position

Editing target net

Message display line

Key input line Additional information display line

(3)Editing ladder programs

By using the keys below, a ladder diagram can be edited.

4.4.2.3

Ladder diagram editing

screen
