B–63835EN/03

4.INTERFACE BETWEEN CNC AND PMC

335

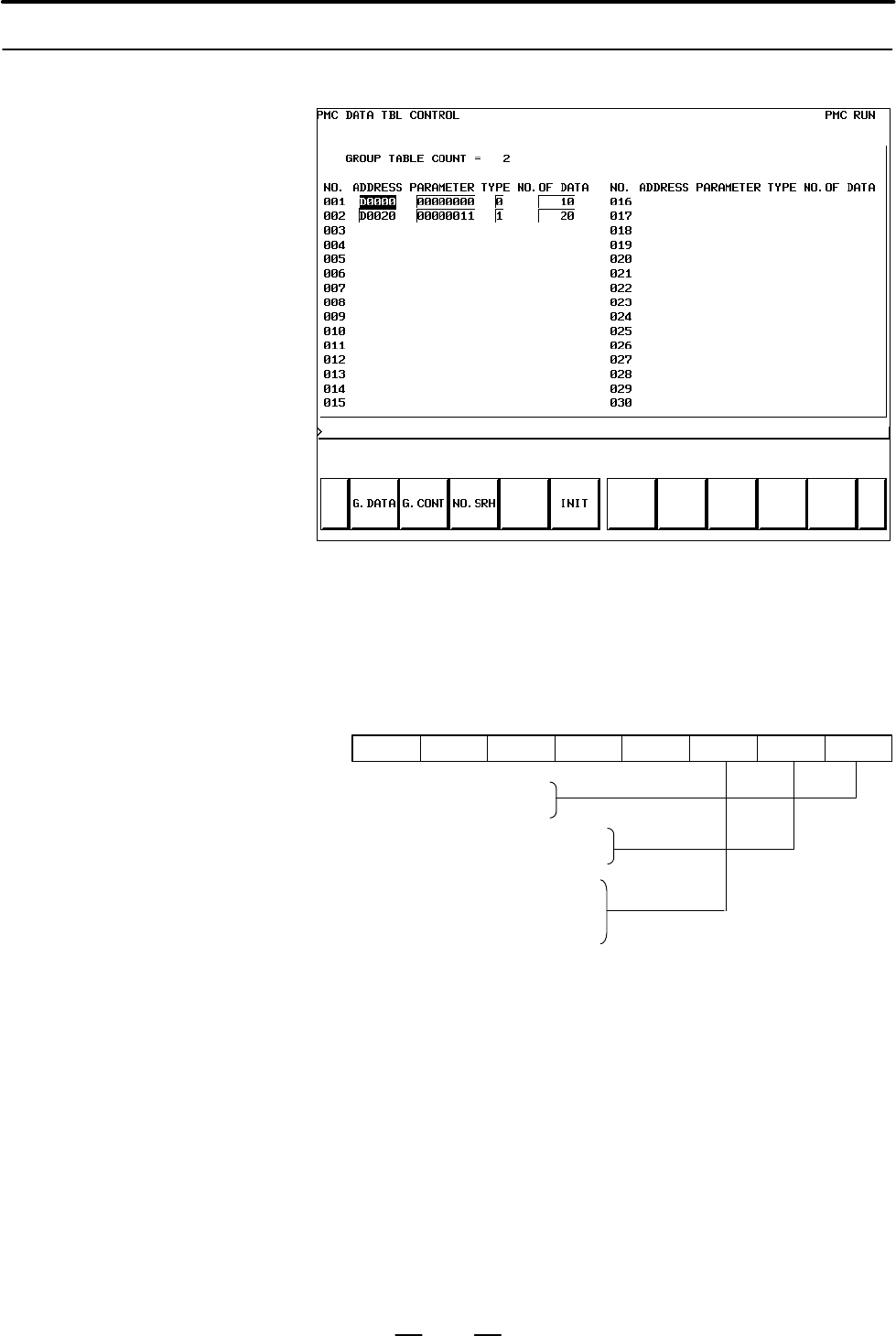

(1)Data group setting screen

a) Display information

• GROUP TABLE COUNT : Number of data table groups

• NO. : Group number

• ADDRESS : Data table start address

• PARAMETER : Table parameter

#0 0 : Binary format

1 : BCD format

#1 0 : Without input protection

1 : With input protection

#2 0 : Binary or BCD format

(Bit 0 is valid.)

1 : HEX format

(Bit 0 is invalid.)

#7 #6 #5 #4 #3 #2 #1 #0

• TYPE : Data length (0: 1byte long, 1: 2bytes long,

2: 4bytes long)

• NO. OF DATA : Number of data items of each data table

b) Soft key

• [G.DATA] :

Switches the screen display to the data table screen.

• Number of groups + [G.CONT] :

Sets the number of data table groups.

• Group number + [NO.SRH] :

Moves the cursor to a specified group.

• [INIT] :

Initializes the setting of the data table.

4.4.4.5

Data table screen
