6. AC SPINDLE (SERIAL INTERFACE)

437

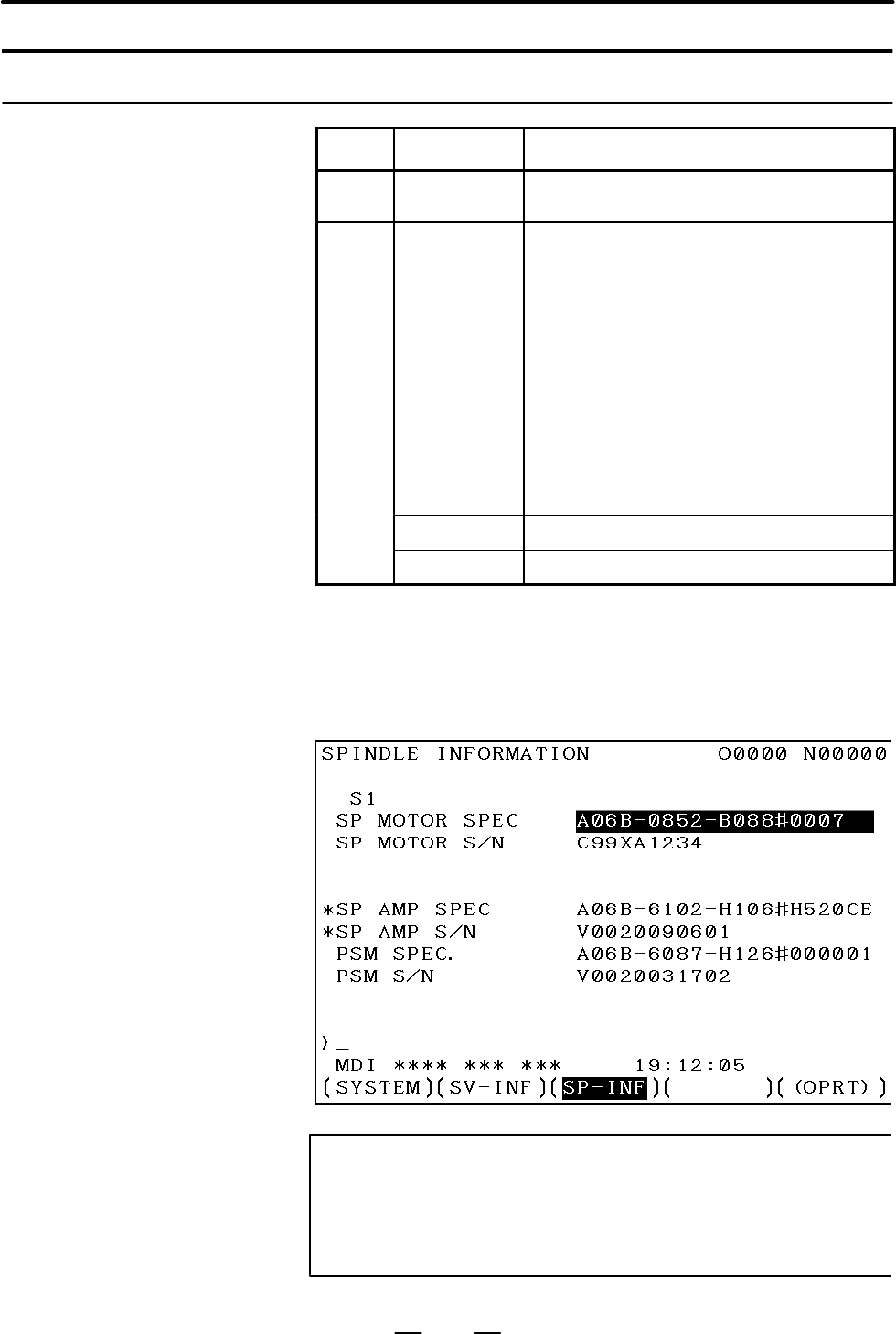

Screen operation on the editing screen

Mode Key operation Use

Viewing

(*1)

Page key Scrolls up or down on a screen–by–screen basis.

Editing

(*2)

Soft key

[INPUT]

[CANCEL]

[CHANGE]

[SAVE]

[RELOAD]

Replace the selected ID information at the cursor posi-

tion with the character string in key–in buffer.

Deletes the character string in key–in buffer.

Transfers the selected ID information at the cursor posi-

tion that was sent by the servo, to key–in buffer. Only

the items preceded by * (*3) are valid.

Saves the ID information that has been changed on the

spindle information screen in flash ROM.

Cancels the ID information that has been changed on

the spindle information screen and loads ID information

from flash ROM.

Page key Scrolls up or down on a screen–by–screen basis.

Cursor key Scrolls up or down the selection of ID information.

*1 Viewing mode: when parameter No.13112#0 = 0

*2 Editing mode: when parameter No.13112#0 = 1

*3 Spindle information is stored in flash ROM. If there is a difference

between the spindle information in flash ROM and the actual spindle

information, the corresponding items are preceded by *.

CAUTION

For mixed connection of an αi spindle and a spindle that

does not belong to the αi spindle system, ID information of

connected units for serial spindle including ai spindles

cannot be obtained.
