FS 16/18-MB/TB/MC/TC Additional Manual Page 12

Additional Manual
Distance between scale zero and reference position (1) 1883
Data type : Two-word axis
Unit of data : Detection unit
Valid data range : -99999999 to 99999999
06
06
06
06
Distance between scale zero and reference position (2) 1884
Data type : word axis
Unit of data : Detection unit*100,000,000
Valid data range : -20 to 20
When the distance between scale zero and reference position is over the
setting range of parameter 1883, please set this parameter.
Set the distance between scale zero and reference position by parameter
No.1883, 1884. The actual distance is determined by following formula :
06
06
Actual distance = Parameter 1884 * 100,000,000 + Parameter 1883

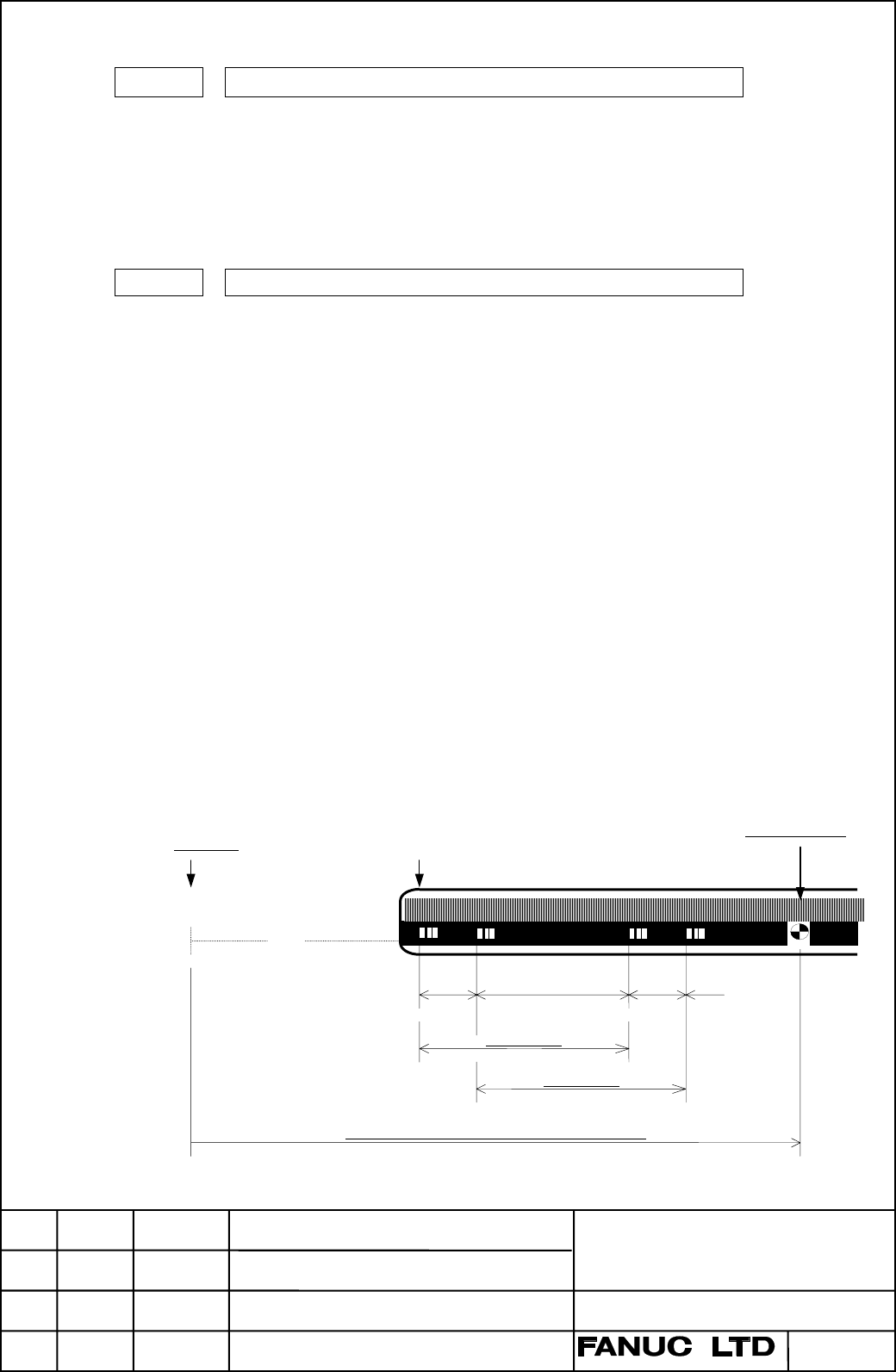

The scale zero means a point where reference mark 1 and reference mark 2 are
equal. Generally, this is a virtual point that exists on the out of scale
stroke.( Refer to following figure )
When a reference point is located in plus side of a scale zero, set a plus value to
this parameter. And a reference point is located in minus side, set a minus
value.
PRM.1884 × 100,000,000 ＋ PRM.1883
PRM.1882
PRM.1821
8.0
42.0
8.2
41.8
Mark1=Mark2
…….
Reference point
Scale end
Scale zero
Mark2 Mark1 Mark2 Mark1
12/15
A- 61209EN
DRAW.No.
FANUC Series 16/18-MB/TB/MC/TC
FANUC Series 16i/18i/21i-MA/TA/MB/TB
Specifications of Distance Coded
Linear Scale Interface
Title
Descriptions of products are altered.
Straightness compensation is supported.
First edition
DESCRIPTION
A.Fukumoto
A.Fukumoto
DESIGNE
02.09.24
00.06.20
95.11.14
DATE
13
12
01
EDIT.
T.Endo
H.Kochiya
