FS 16/18-MB/TB/MC/TC Additional Manual Page 13

Additional Manual

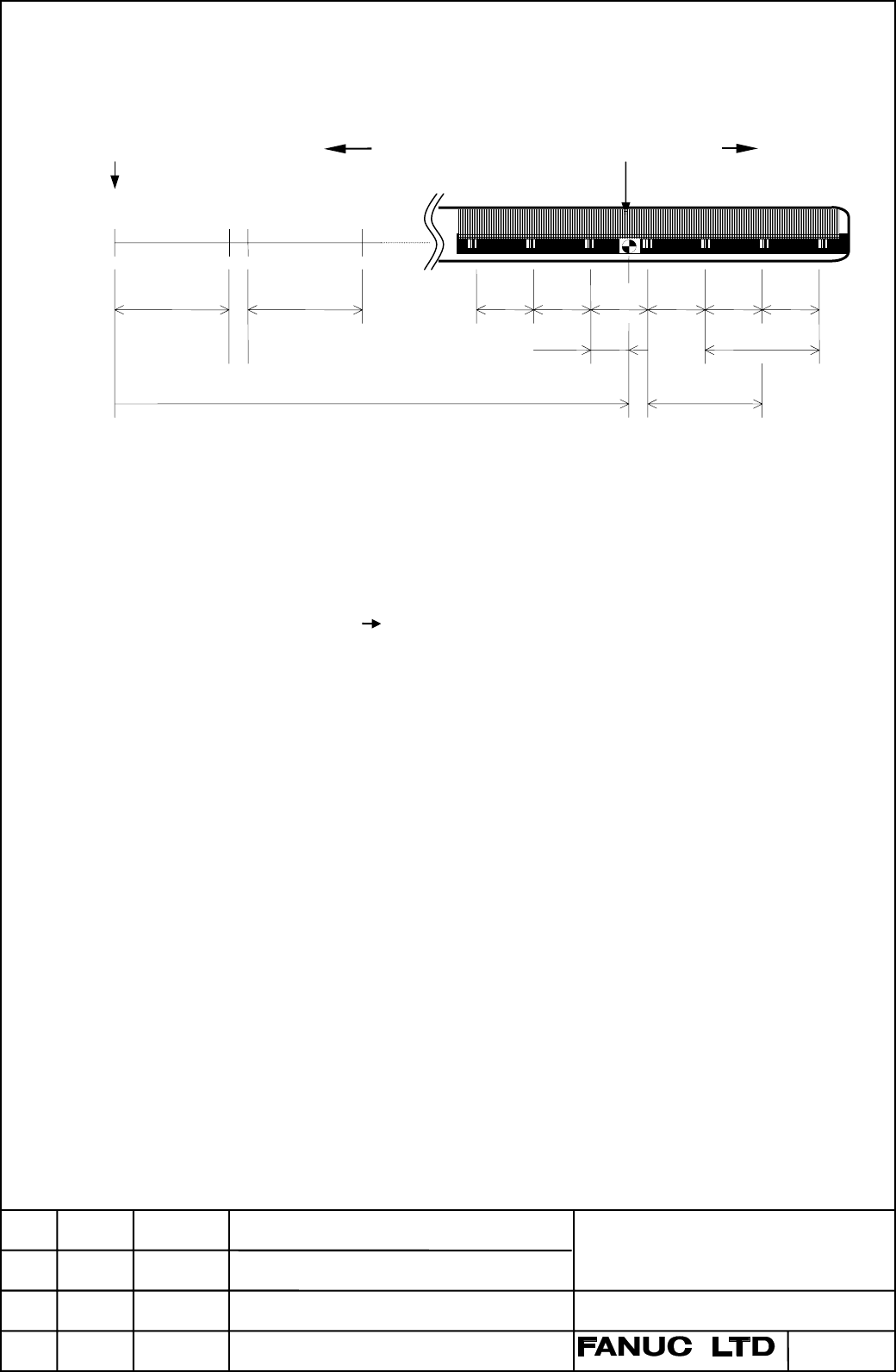

[ Example of parameter setting ]
When IS-B and millimeter machine and using a scale figured below :
Reference point
Minus direction Plus direction
Scale zero
Mark1=Mark2 Mark1
Mark1
Mark2 Mark1
Mark1
Mark2
A
Mark2
B
Mark1 Mark2
Mark1
-[9960/(20020-20000)*20000+5000] = -9965000 20.020mm
20.000mm 5.000
10.020 9.980 10.040
9.960
10.060 9.940 19.980 20.000
Parameter No.1821 (Mark1 interval) = “20000”
No.1882 (Mark2 interval) = “20020”
No.1883 (Reference position) = Position of point A + 5.000
= (Distance of A to B) / ( Mark2 interval - Mark1 interval)
* Mark1 interval + 5.000
= 9960 / (20020-20000) * 20000 + 5000
= 9965000
“-9965000”(Reference point is located in minus side)
[The setting method of parameter No.1883]
When the measurement of a parameter No.1883 (Distance between scale zero and
reference position) is difficult, you can determine the setting value by the following
procedure.
(1)Set "1" to parameter No.1815#2,#1 to make this function available.
Set a correct value to parameter No.1821, No.1882.
Set "0" to parameter No.1240.
Set "0" to parameter No.1883,1884.
(2)Establish a reference point by the procedure described in "2.1 Procedure for
Reference Position Establishment". (As a result, the machine coordinate becomes the
distance between scale zero and actual position.)
(3)Positioning the axis to reference position by mechanical measurement in "HND" or
"JOG" mode.
(4)Set an actual machine coordinate value (DGN.301) to the parameter No.1883
after conversion of least command increment to detection unit. (Multiply
DGN.301 and CMR)
(5)Set a parameter No.1240 if necessary.
(Note) When the setting value is greater than 99,999,999, this method can not be
used.
13/15
A- 61209EN
DRAW.No.
FANUC Series 16/18-MB/TB/MC/TC
FANUC Series 16i/18i/21i-MA/TA/MB/TB
Specifications of Distance Coded
Linear Scale Interface
Title
Descriptions of products are altered.
Straightness compensation is supported.
First edition
DESCRIPTION
A.Fukumoto
A.Fukumoto
DESIGNE
02.09.24
00.06.20
95.11.14
DATE
13
12
01
EDIT.
T.Endo
H.Kochiya
