1. Outline

The interval of each reference marks of distance coded linear scale are variable.

Accordingly, if the interval is determined, the absolute position can be determined.

The CNC measures the interval of reference marks by axis moving of short distance

and determines the absolute position. Consequently the reference position can be

established without moving to reference position.

Mark 1 Mark 2 Mark 1 Reference mark 2Reference mark 1

20.00

20.02

10.04

10.02

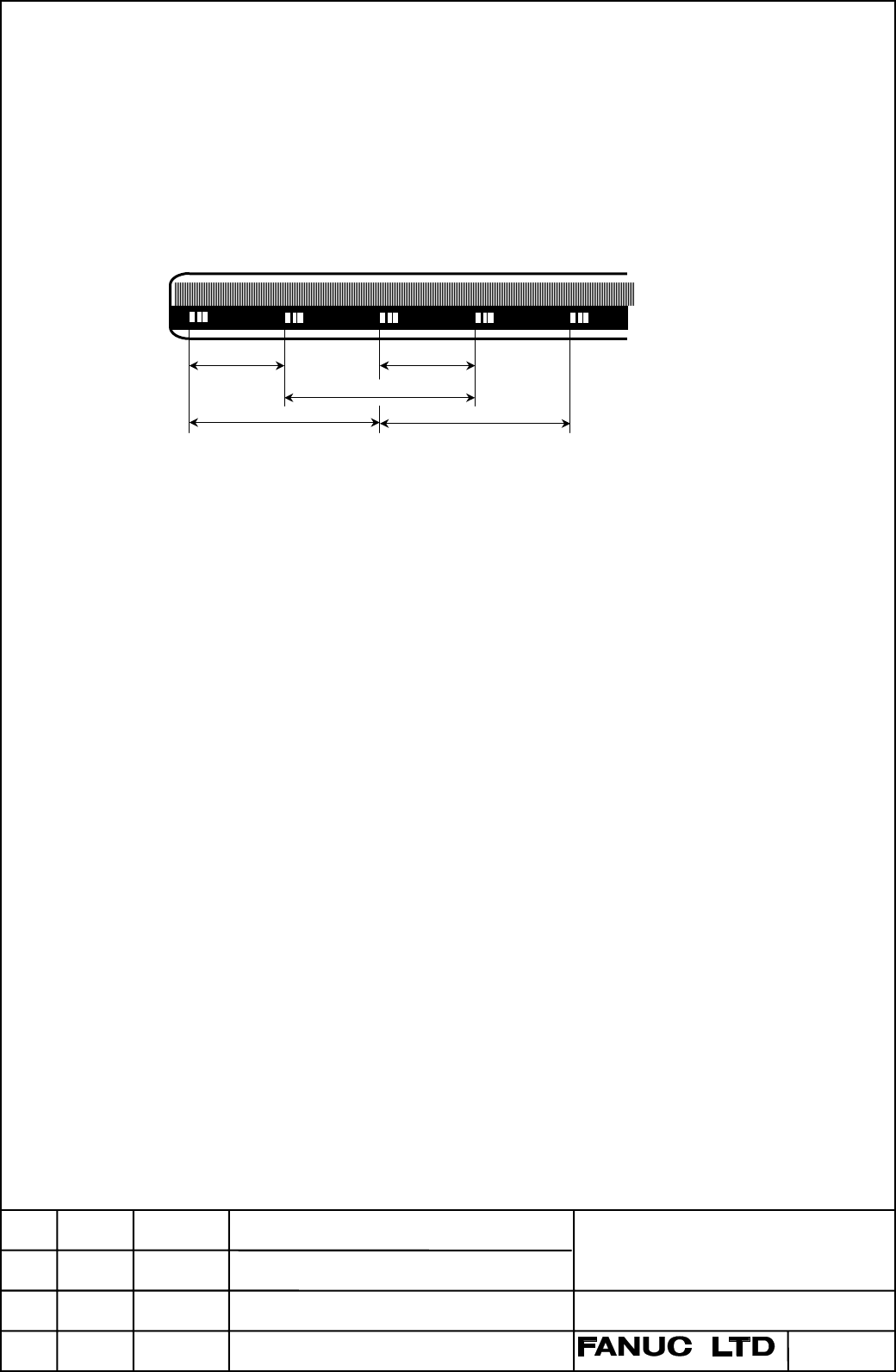

Fig.1 Example of distance coded linear scale

* This is a optional function.

2. Specifications

2.1 Procedure for Reference Position Establishment

(1) Select the JOG mode, and set the manual reference position return selection

signal ZRN to "1".

(2) Set a direction selection signal(+J1,-J1,+J2,-J2,…) for a target axis.

(3) The axis is fed at a constant low speed (reference position return FL feedrate

specified by parameter (No.1425) setting).

(4) When a reference mark is detected, the axis stops, then the axis is fed at a

constant low speed again.

(5) Above (4) is executed repeatedly until two or three or four reference marks are

detected. And absolute position is determined and reference position

establishment signal (ZRF1,ZRF2,ZRF3,＋ _…) turns to "1". The number of

reference marks to be detected is defined by parameter No.1802.

The axis does not stop and reference position establishment is proceeded even if the

feed axis direction selection signal (+J1,-J1,+J2,-J2,…) turns to "0" between step (2)

and (5).

The timing chart for this procedures is given below.

2/15

A- 61209EN

DRAW.No.

FANUC Series 16/18-MB/TB/MC/TC

FANUC Series 16i/18i/21i-MA/TA/MB/TB

Specifications of Distance Coded

Linear Scale Interface

Title

Descriptions of products are altered.

Straightness compensation is supported.

First edition

DESCRIPTION

A.Fukumoto

DESIGNE

02.09.24

00.06.20

95.11.14

DATE

EDIT.

T.Endo

H.Kochiya
