2.4 Note

(1) In the following cases, the reference position establishment described in "2.1

Procedure for Reference Position Establishment" is not executed and the axis

moves to reference position.

(a) The reference position is already established and REF mode is selected and

feed axis direction selection signal (+J1,-J1,+J2,-J2, …) turns to "1".

(b) The refer

ence position is already established and reference position return

(G28 command) is specified.

(2) When the automatic reference position return (G28 command) is specified and

the reference position is not established, at first, the reference position

establishment above term 2.1 is executed, then the axis moves to reference

position.

(1) In the following case, P/S090 alarm occurs.

(a) The actual interval of reference marks is different from parameter setting

value.

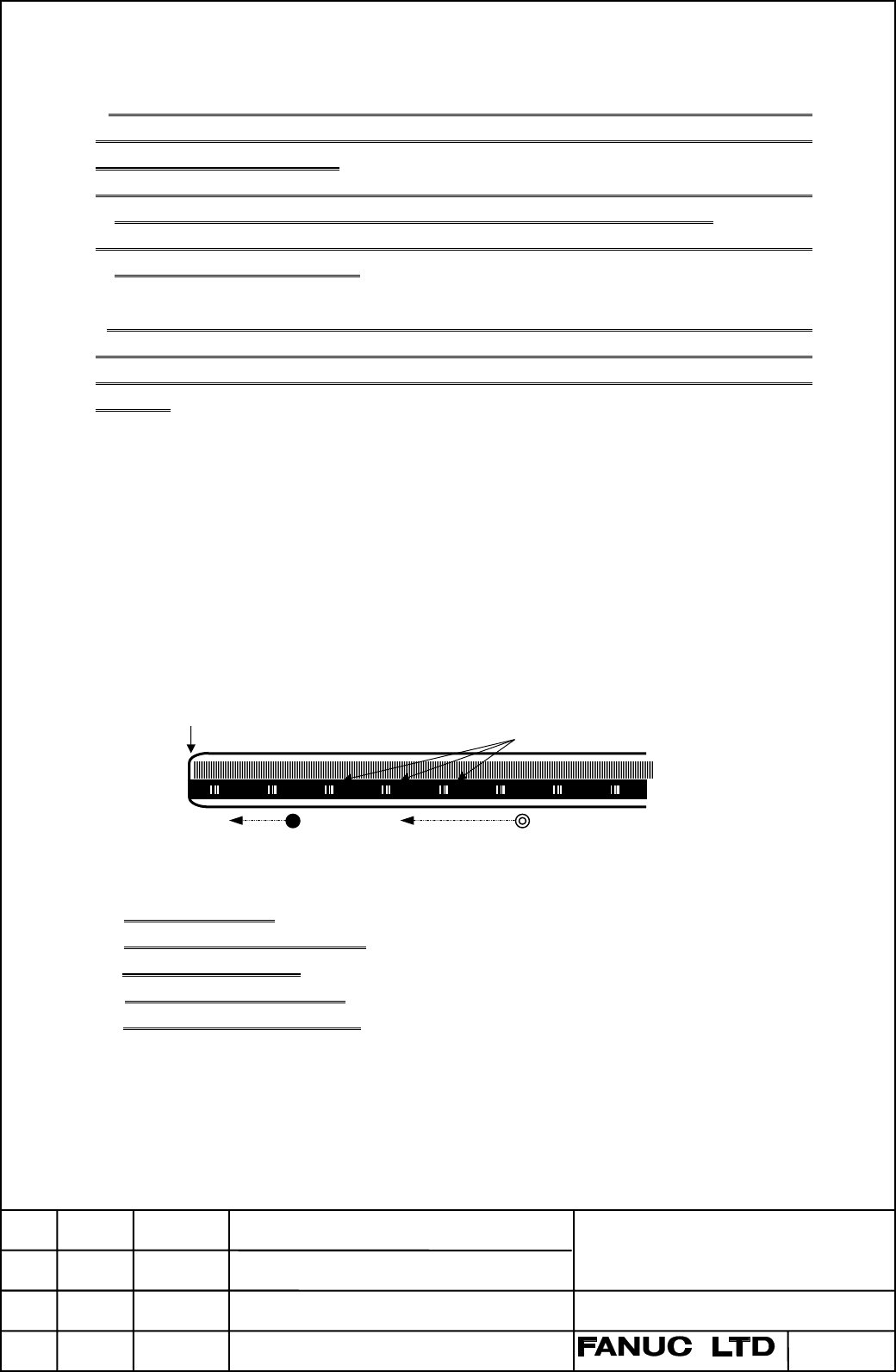

(2) In this procedure, the axis does not stop until three or four reference marks are

detected. If this procedure is started at the position near the scale end, CNC can

not detect three or four reference marks and the axis does not stop until over

travel alarm occurs. Please care to start at the position that has enough distance

from scale end.

Start point (Good)

Start point (Bad)

Reference marks

Scale end

(3) When the axis used this function, the following function can not be used.

(a) PMC axis control

(b) Simple synchronous control

(d) Pitch error compensation

(e) Straightness compensation

5/15

A- 61209EN

DRAW.No.

FANUC Series 16/18-MB/TB/MC/TC

FANUC Series 16i/18i/21i-MA/TA/MB/TB

Specifications of Distance Coded

Linear Scale Interface

Title

Descriptions of products are altered.

Straightness compensation is supported.

First edition

DESCRIPTION

A.Fukumoto

DESIGNE

02.09.24

00.06.20

95.11.14

DATE

EDIT.

T.Endo

H.Kochiya
