FS 16/18-MB/TB/MC/TC Additional Manual Page 14

Additional Manual

Page of 15

/ 15

SCPx

1817

#7 #4 #3 #2 #1 #0

Data type : Bit axis type

SCP The direction of scale zero.

0： Minus side (reference point is located on the plus side based on the

scale zero)

1： Plus side (reference point is located on the minus side based on the

scale zero)

This parameter is effective when a parameter No.1802#2(DC2) is set to “1”.

Note) An incorrect coordinate system will be established when a wrong

value is set in this parameter. In such a case, please execute

reference point return again after setting the correct value in this

parameter.

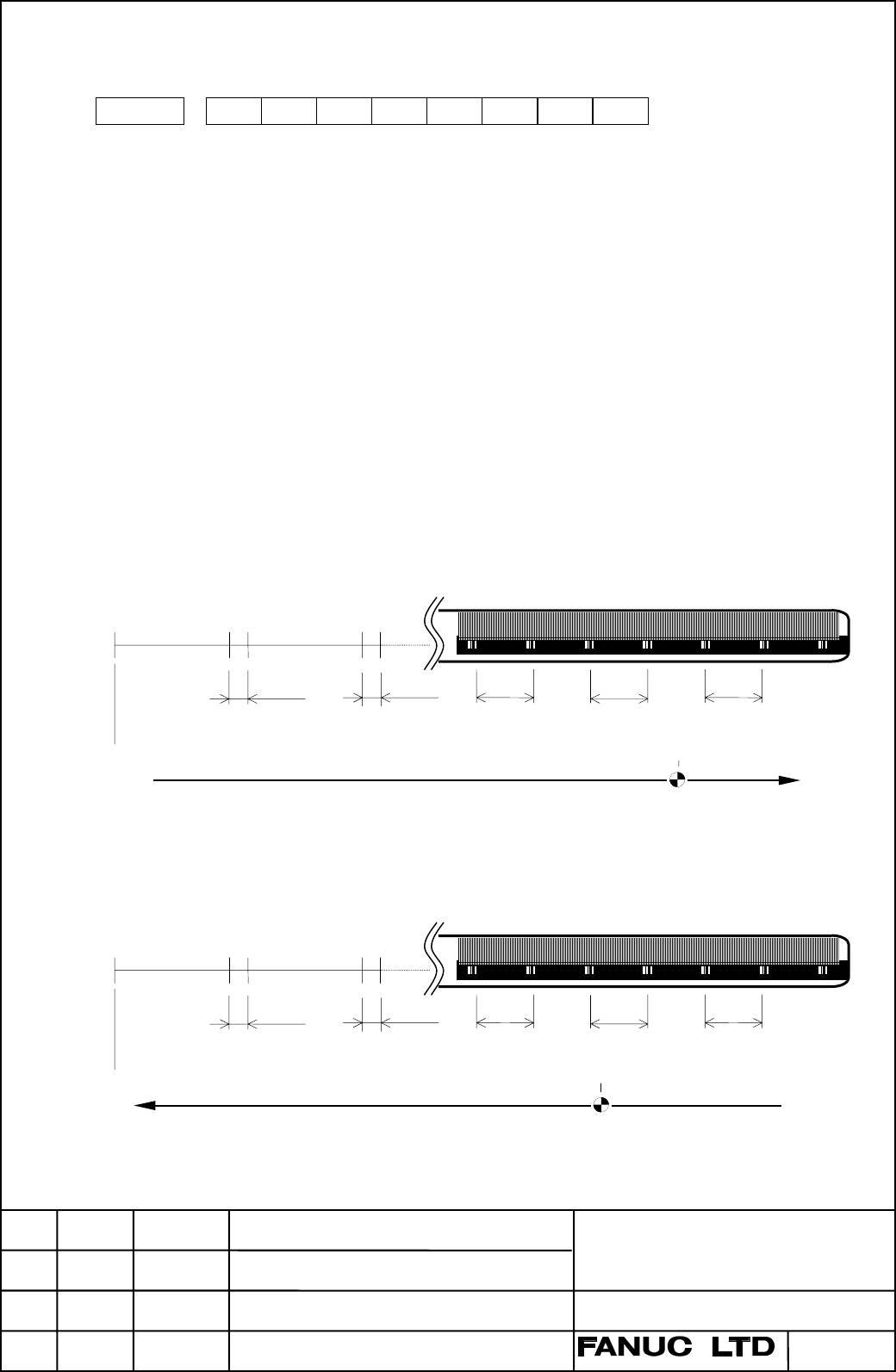

[ Example ]

• When the parameter SCP is set to “0”

• When the parameter SCP is set to “1”

Reference point

＋

0.040

0.020

Mark1=Mark2

M2 M1 M2 M1

M1 M2 M1 M2

9.980 9.960 9.940

Machine coordinate system

－

Scale zero

0.040

0.020

Mark1=Mark2

M2 M1 M2 M1

M1 M2 M1 M2

9.980 9.960 9.940

Machine coordinate system

Reference point

－

＋

Scale zero

14/15
