PROGRAMMING

B–64114EN/01

13. FUNCTIONS TO SIMPLIFY

PROGRAMMING

161

In G code system A, the tool returns to the initial level from the bottom

of a hole. In G code system B or C, specifying G98 returns the tool to the

initial level from the bottom of a hole and specifying G99 returns the tool

to the point–R level from the bottom of a hole.

The following illustrates how the tool moves when G98 or G99 is

specified. Generally, G99 is used for the first drilling operation and G98

is used for the last drilling operation.

The initial level does not change even when drilling is performed in the

G99 mode.

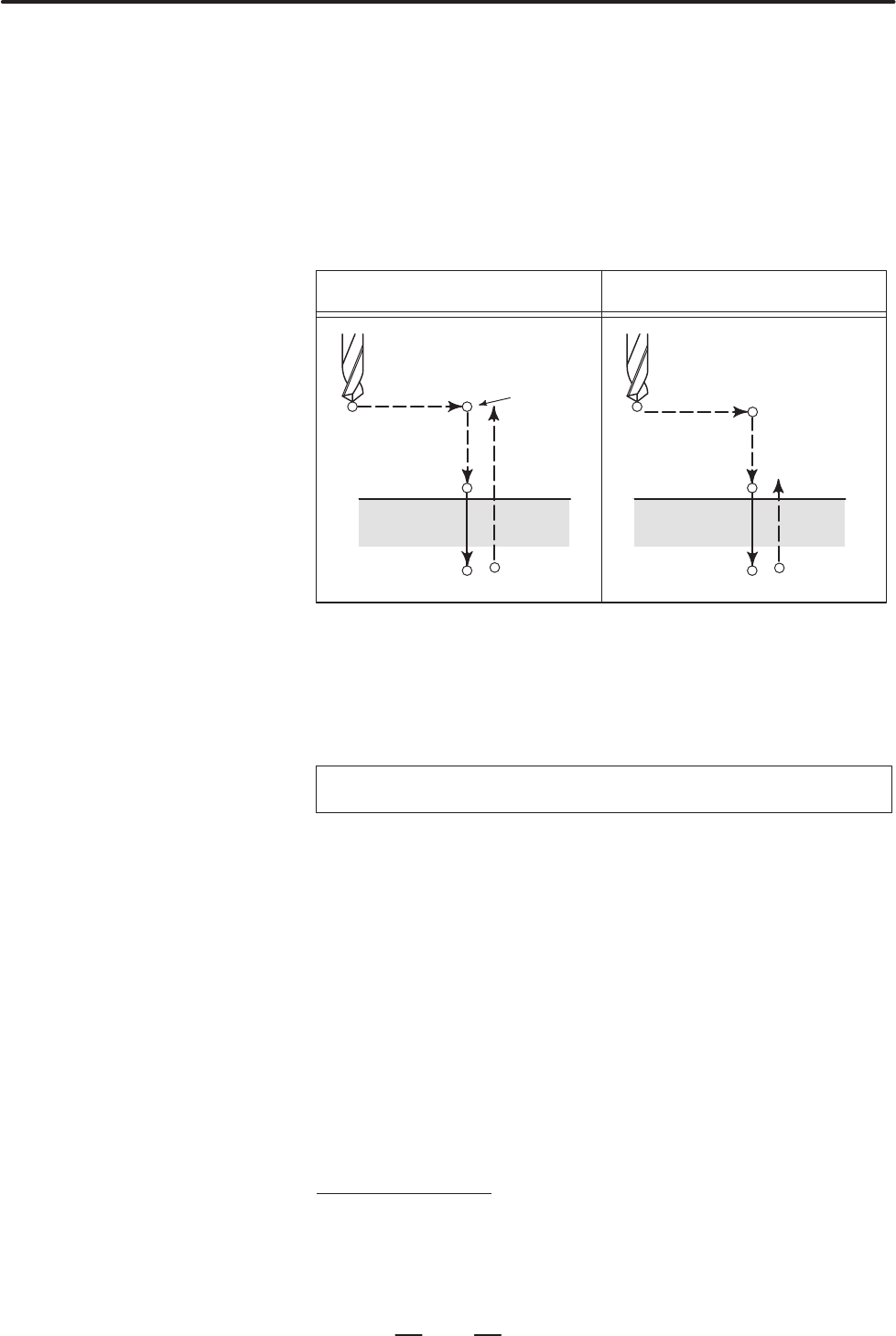

G98(Return to initial level ) G99(Return to point R level)

Initial level

Point R level

To repeat drilling for equally–spaced holes, specify the number of repeats

in K_.

K is effective only within the block where it is specified.

Specify the first hole position in incremental mode.

If it is specified in absolute mode, drilling is repeated at the same position.

Number of repeats K The maximum command value = 9999

When K0 is specified with parameter K0E (parameter No. 5102 #4) set

to 0, drilling is performed once.

When K0 is specified with parameter K0E (parameter No. 5102 #4) set

to 1, drilling data is just stored without drilling being performed.

When an M code specified in parameter No.5110 for C–axis clamp /

unclamp is coded in a program, the CNC issues the M code for C–axis

clamp after the tool is positioned and before the tool is fed in rapid traverse

to the point–R level. The CNC also issues the M code (the M code for

C–axis clamp +1) for C–axis unclamp after the tool retracts to the point–R

level. The tool dwells for the time specified in parameter No. 5111.

To cancel a canned cycle, use G80 or a group 01 G code.

Group 01

G codes

G00 : Positioning (rapid traverse)

G01 : Linear interpolation

G02 : Circular interpolation (CW)

G03 : Circular interpolation (CCW)

D Return point level

G98/G99

D Number of repeats

D M code used for C–axis

clamp/unclamp

D Cancel
