0i-TC Operators manual Page 306

Operators manual

Page of 848

/ 848

PROGRAMMING15. CUSTOM MACRO

B–64114EN/01

280

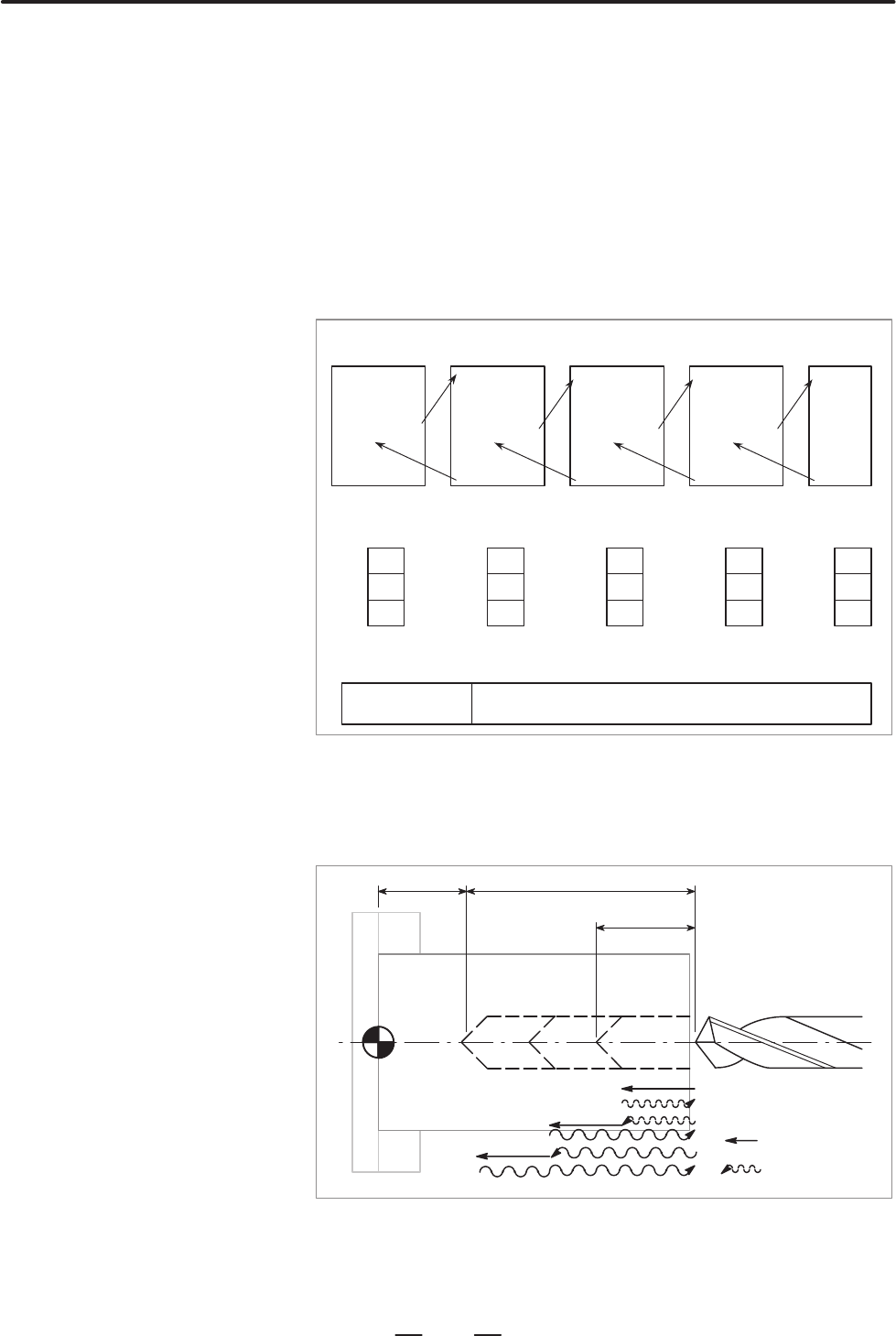

D Local variables from level 0 to 4 are provided for nesting.

D The level of the main program is 0.

D Each time a macro is called (with G65 or G66), the local variable level

is incremented by one. The values of the local variables at the previous

level are saved in the CNC.

D When M99 is executed in a macro program, control returns to the

calling program. At that time, the local variable level is decremented

by one; the values of the local variables saved when the macro was

called are restored.

O0001 ;

#1=1 ;

G65 P2 A2 ;

M30 ;

O0002 ;

G65 P3 A3 ;

M99 ;

O0003 ;

G65 P4 A4 ;

M99 ;

O0004 ;

G65 P5 A5 ;

M99 ;

O0005 ;

M99 ;

#1 1

#33

#1 2

#33

#1 3

#33

#1 4

#33

#1 5

#33

#100–, #500–

Main program

(level 0)

Macro (level 1) Macro (level 2) Macro (level 3)

Macro

(level 4)

Local variables

(level 0)

(Level 1) (Level 2) (Level 3) (Level 4)

Common variables

Variables that can be read from and written to by

macros at different levels

Move the tool beforehand along the X– and Z–axes to the position where

a drilling cycle starts. Specify Z or W for the depth of a hole, K for the

depth of a cut, and F for the cutting feedrate to drill the hole.

Cutting

Rapid traverse

D Local variable levels

Sample program

(Drill cycle)
