PROGRAMMING14. COMPENSATION FUNCTION

B–64114EN/01

248

NOTE

1 When an axis not included in the tool–tip radius

compensation plane is specified in a G28 or G30 command,

a vector perpendicular to the direction in which the tool

moves is created at the end of the preceding block and the

tool does not move. Offset mode is automatically resumed

from the next block (in the same way as when two or more

blocks specifying no movement are consecutively

executed).

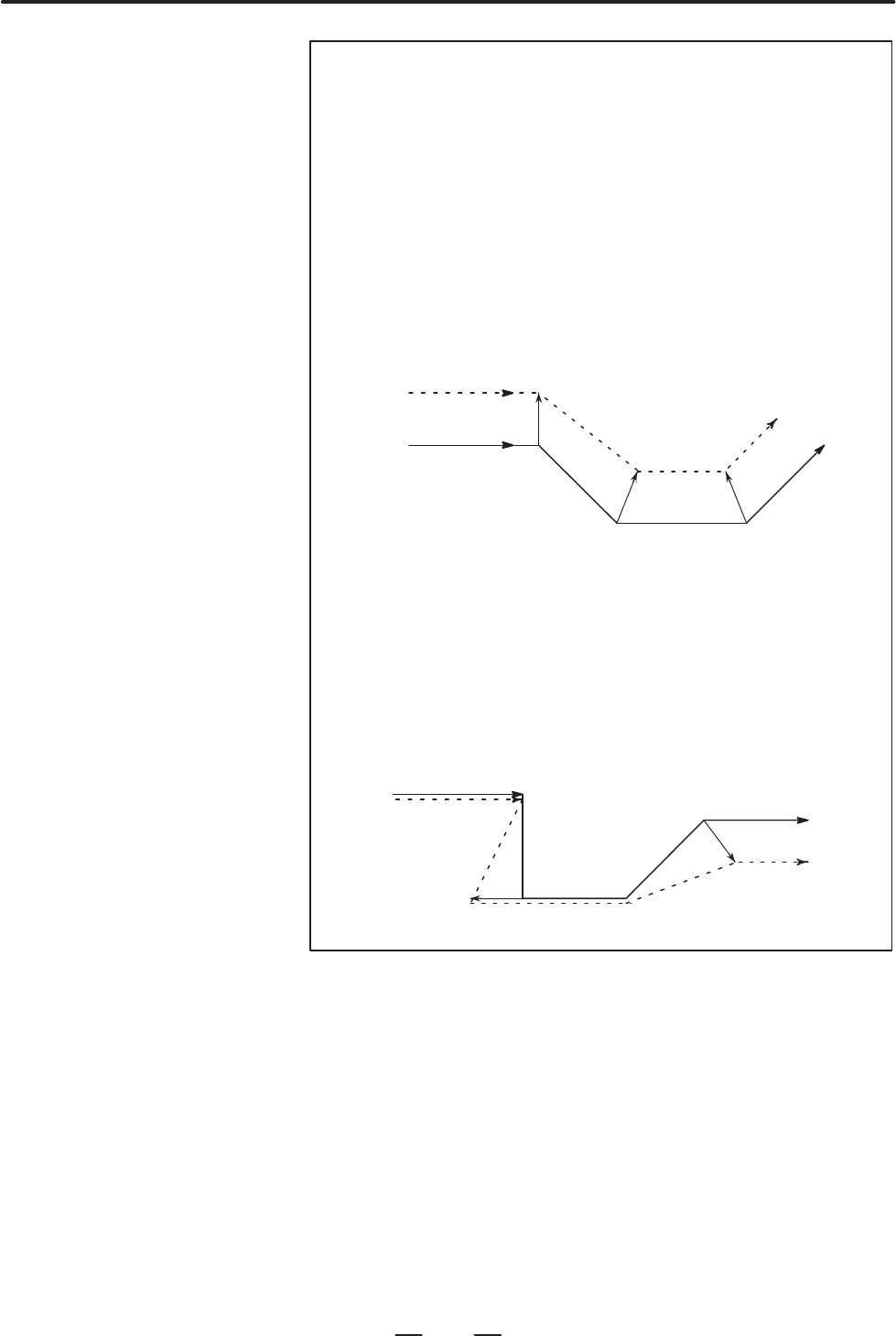

Example)

When bit 2 (CCN) of parameter No. 5003 is set to 1.

(G41 G01 X_ Z_)

G28(30)Y_

G01

[FS15 type]

2 When a G28 or G30 command is specified as a start–up

block, a vector perpendicular to the direction in which the

tool moves is created at the intermediate position. The

vector is then canceled at the reference position. The next

block creates an intersection vector.

Example 1)

When bit 2 (CCN) of parameter No. 5003 is set to 1.

G42 G28

G01

[FS15 type]

Reference position=

Intermediate position
