OPERATION

B–64114EN/01

11. SETTING AND DISPLAYING DATA

651

By pressing the MESSAGE function key, data such as alarms, alarm

history data, and external messages can be displayed.

For information relating to alarm display, see Section III.7.1. For

information relating to alarm history display, see Section III.7.2.

For information relating to external message display, see the relevant

manual supplied by the machine tool builder.

External operator messages can be preserved as history data.

Preserved history data can be displayed on the external operator message

history screen.

Procedure for external operator message history display

1 Press the

MESSAGE

function key.

2 Press the continuous menu key

, then press the chapter selection

soft key [MSGHIS]. The screen shown below appears.

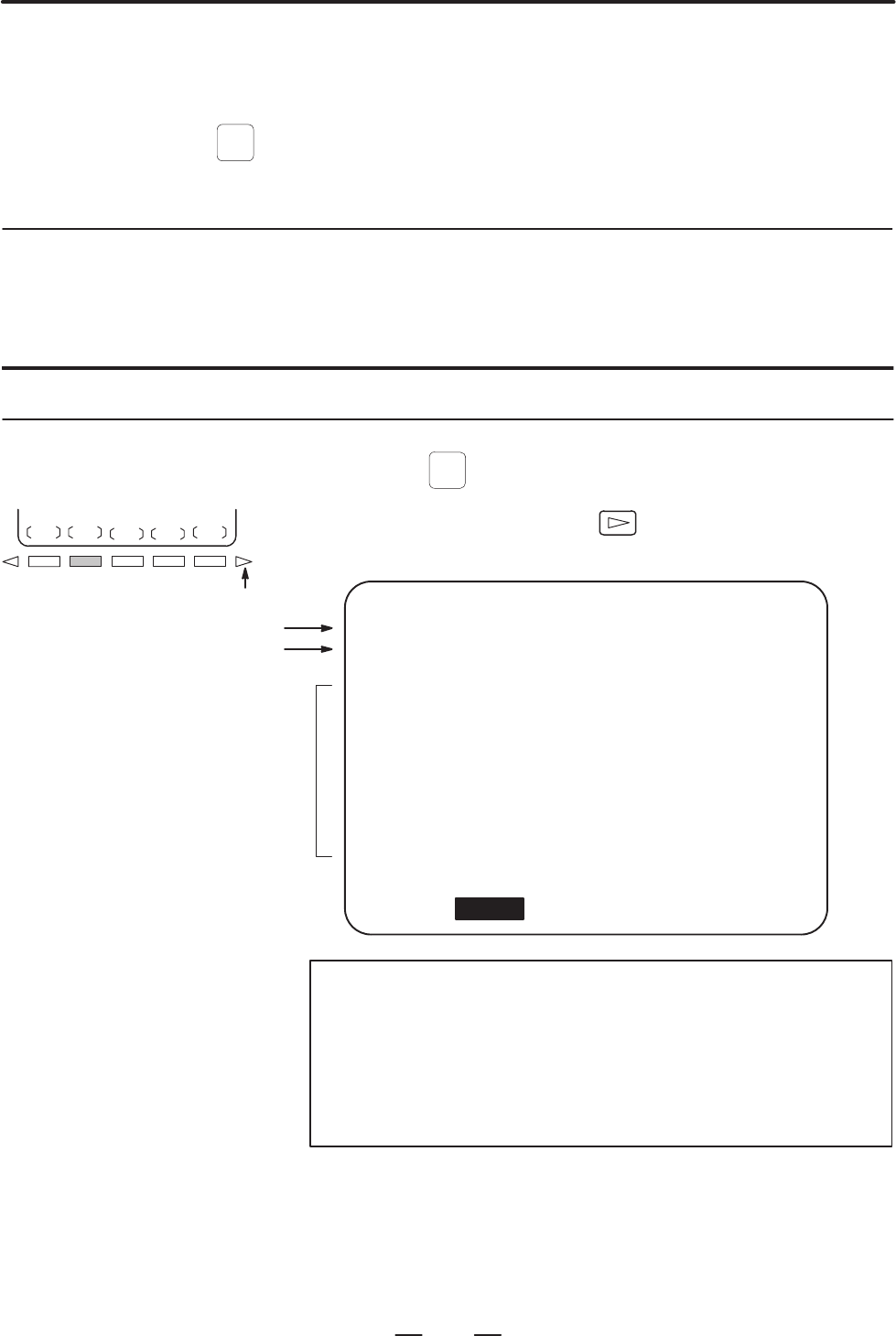

MESSAGE HISTORY O0000 N00000

01/01/01 17:25:00 PAGE:1

NO. ****

MEM STRT MIN FIN ALM 09:36:48

[ ][ MSGHIS ][ PUNCH ][ ][ (OPRT) ]

Date and Page number

Message nuumber

Display range

(Up to 255 characters)

NOTE

Up to 255 characters can be specified for an external

operator message. By setting MS1 and MS0 (bits 7 and 6

of parameter No. 3113), however, the number of characters

that can be preserved as external operator message history

data can be restricted, and the number of history data items

selected.

11.7

SCREENS

DISPLAYED BY

FUNCTION KEY

@mess

MESSAGE

11.7.1

External Operator

Message History

Display

Procedure

MSGHIS

Continuous menu key
