0i-TC Operators manual Page 69

Operators manual

Page of 848

/ 848

PROGRAMMING

B–64114EN/01

4. INTERPOLATION FUNCTIONS

The distance between an arc and the center of a circle that contains the arc

can be specified using the radius, R, of the circle instead of I, J, and K.

In this case, one arc is less than 180

°, and the other is more than 180° are

considered. An arc with a sector angle of 180

°or wider cannot be

specified. If Xp, Yp, and Zp are all omitted, if the end point is located at

the same position as the start point and when R is used, an arc of 0

°is

programmed

G02R ; (The cutter does not move.)

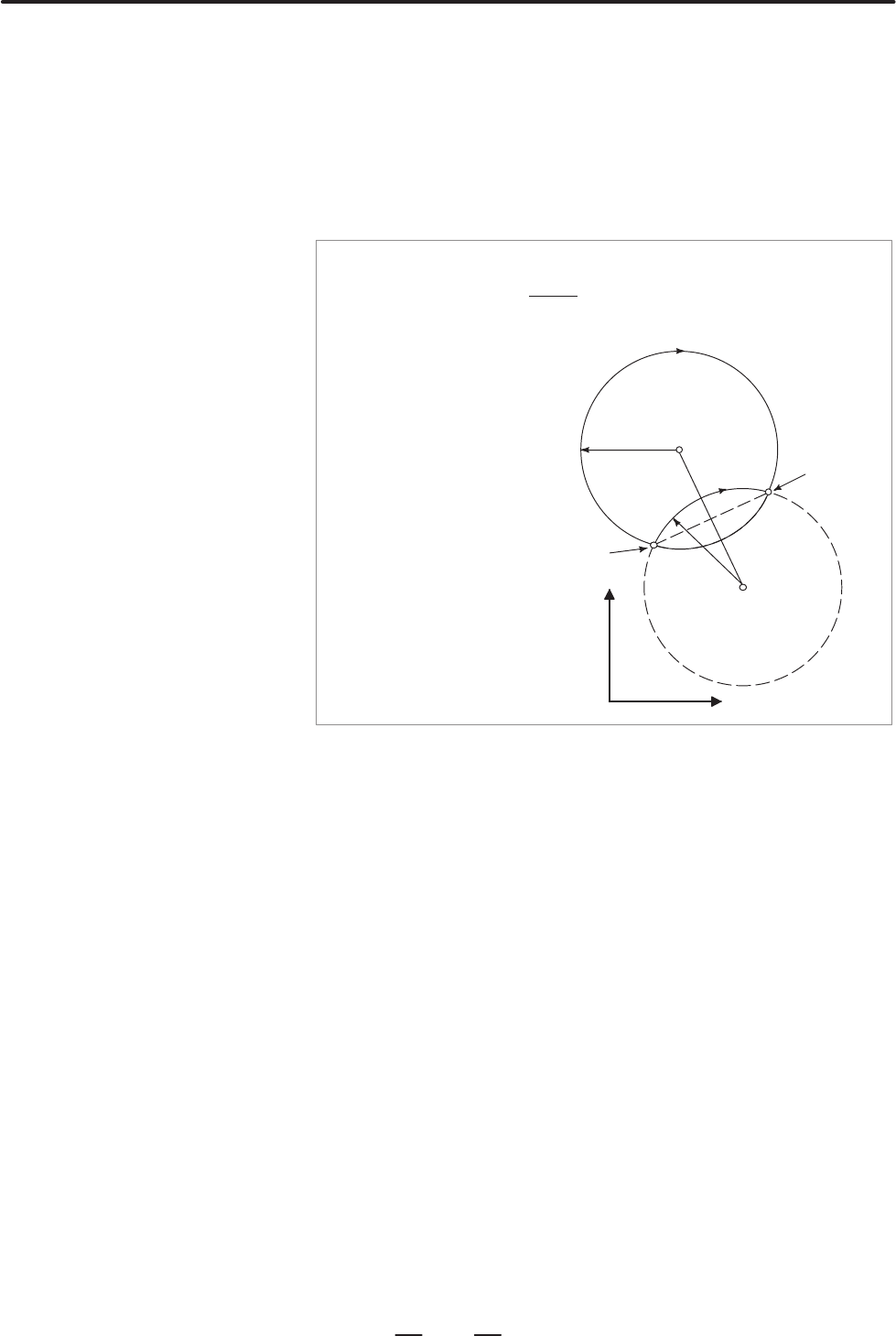

r=50mm

End point

Start point

r=50mm

For arc (1) (less than 180°)

G02 W60.0 U10.0 R50.0

F300.0 ;

For arc (2) (greater than 180°)

An arc with a sector angle of 180°

or wider cannot be specified

within a single block.

(2)

(1)

The feedrate in circular interpolation is equal to the feed rate specified by

the F code, and the feedrate along the arc (the tangential feedrate of the

arc) is controlled to be the specified feedrate.

The error between the specified feedrate and the actual tool feedrate is

±2% or less. However, this feed rate is measured along the arc after the

tool nose radius compensation is applied

If I, J, K, and R addresses are specified simultaneously, the arc specified

by address R takes precedence and the other are ignored.

If an axis not contained in the specified plane is commanded, an alarm

is displayed.

For example, when a ZX plane is specified in G–code B or C, specifying

the X–axis or U–axis (parallel to the X–axis) causes P/S alarm No. 028

to be generated.

If the difference in the radius between the start and end points of the arc

exceeds the value specified in parameter No. 3410, P/S alarm No. 020 is

generated.

If the end point is not on the arc, the tool moves in a straight line along

one of the axes after reaching the end point.

D Arc radius

D Feedrate

Restrictions

D Simultaneously

specifying R with I, J,

and K

D Specifying an axis that is

not contained in the

specified plane

D Difference in the radius

between the start and

end points
