PROGRAMMING4. INTERPOLATION FUNCTIONS

B–64114EN/01

Tools can move along a line.

F_: Speed of tool feed (Feedrate)

IP_: For an absolute command, the coordinates of an end

point , and for an incremental command, the distance

the tool moves.

G01 IP_F_;

A tools move along a line to the specified position at the feedrate

specified in F.

The feedrate specified in F is effective until a new value is specified. It

need not be specified for each block.

The feedrate commanded by the F code is measured along the tool path.

If the F code is not commanded, the feedrate is regarded as zero.

For feed–per–minute mode under 2–axis simultaneous control, the

feedrate for a movement along each axis as follows :

Ff ;

G01ααββ

Fa +

Feed rate of α axis direction :

L + a

) b

Feed rate of β axis direction :

< Diameter programming >

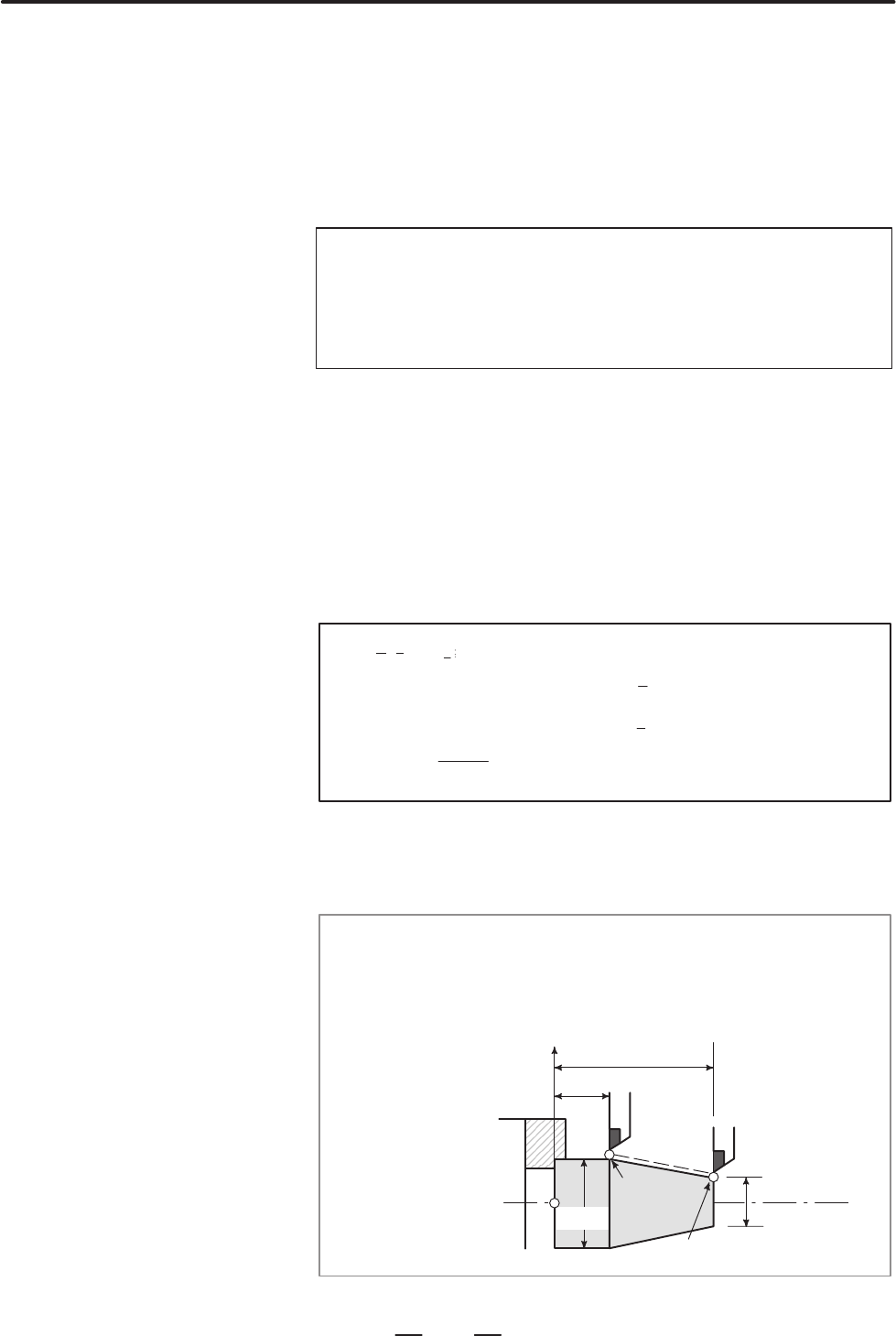

G01X40.0Z20.1F20 ; (Absolute command)

G01U20.0W–25.9F20 ; (Incremental command)

20.1

46.0

φ40.0

φ20.0

End point

Start point

4.2

LINEAR

INTERPOLATION

(G01)

Format

Explanations

Examples

D Linear interpolation
