5.7. Method of Exchanging LCD Backlight
Note) It is not possible to exchange a backlight of 15.0”LCD. Exchanging of Base Unit for maintenance
(A08B-0084-Dxxx) is available in case of 15.0”LCD.
5.7.1 Exchanging 10.4”LCD Backlight
(1) Make sure that PANEL i is turned off.
(2) Remove case cover (Refer to 5.2).
(3) Remove LCD backlight cable and LCD signal cable.
(4) If PANEL i has the Touch Panel, pull out flat cable for Touch Panel from CN1 on the Touch Panel Controller
PCB.
(5) Remove CPU holding plate and 2 screws. Then remove PCI holding plate and 2 screws(if PCI holding plate has
not removed).
Remove Softkey cable, PCMCIA cable, USB cable and 3 screws. Then remove Main Board.

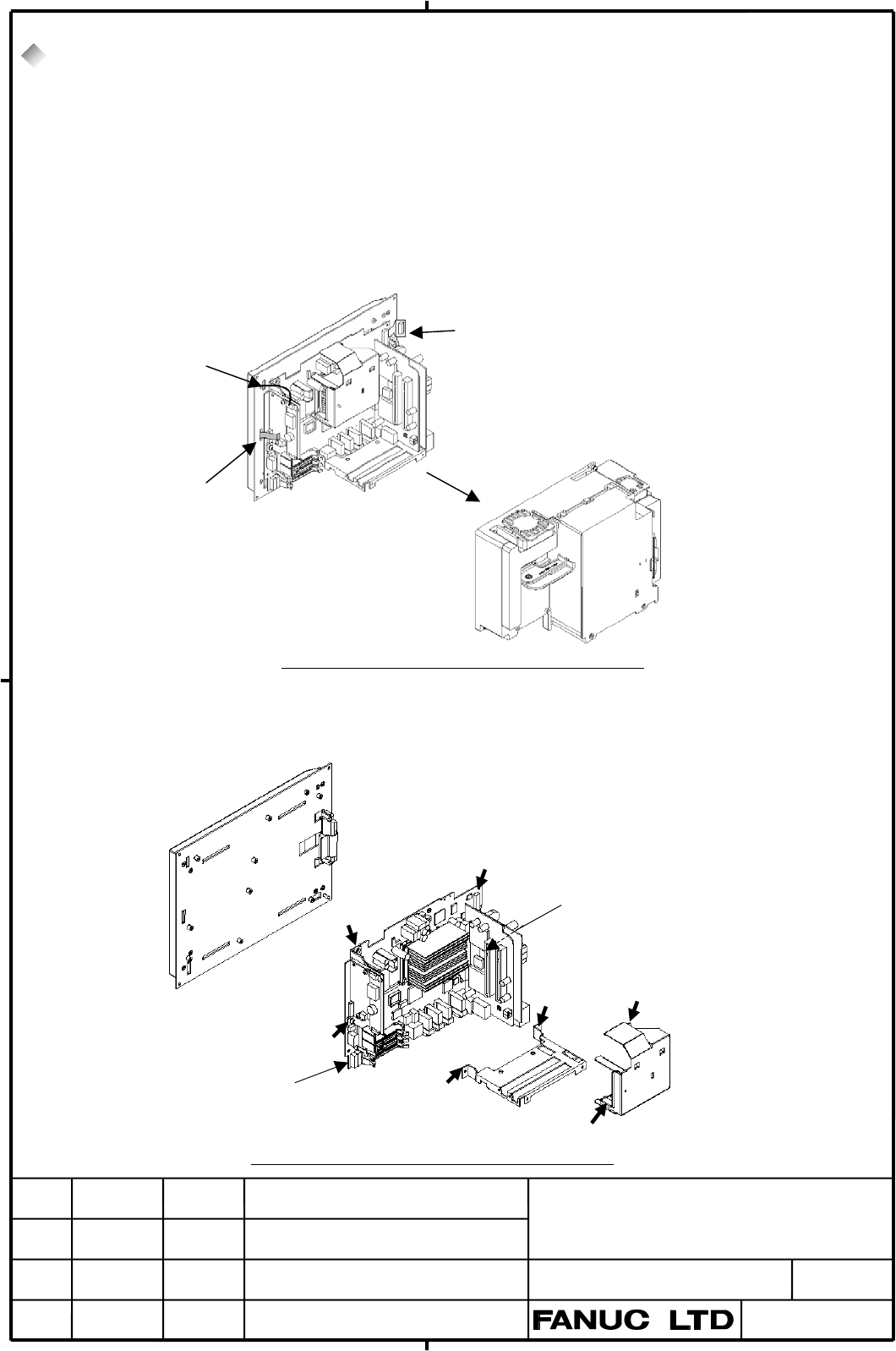

Figure: Exchanging LCD Backlight at 10.4”LCD -1-
Flat Cable for Touch
Panel
LCD Signal Cable
LCD Backlight
Cable.
CPU Holing Plate
PCI Holding Plate
2 Screws
2 Screws
3 Screws
Softkey Cable
PCMCIA Cable
USB Cable
Figure: Exchanging LCD Backlight at 10.4”LCD -2-
