FANUC PANEL i
Maintenance Manual
A
-83138E

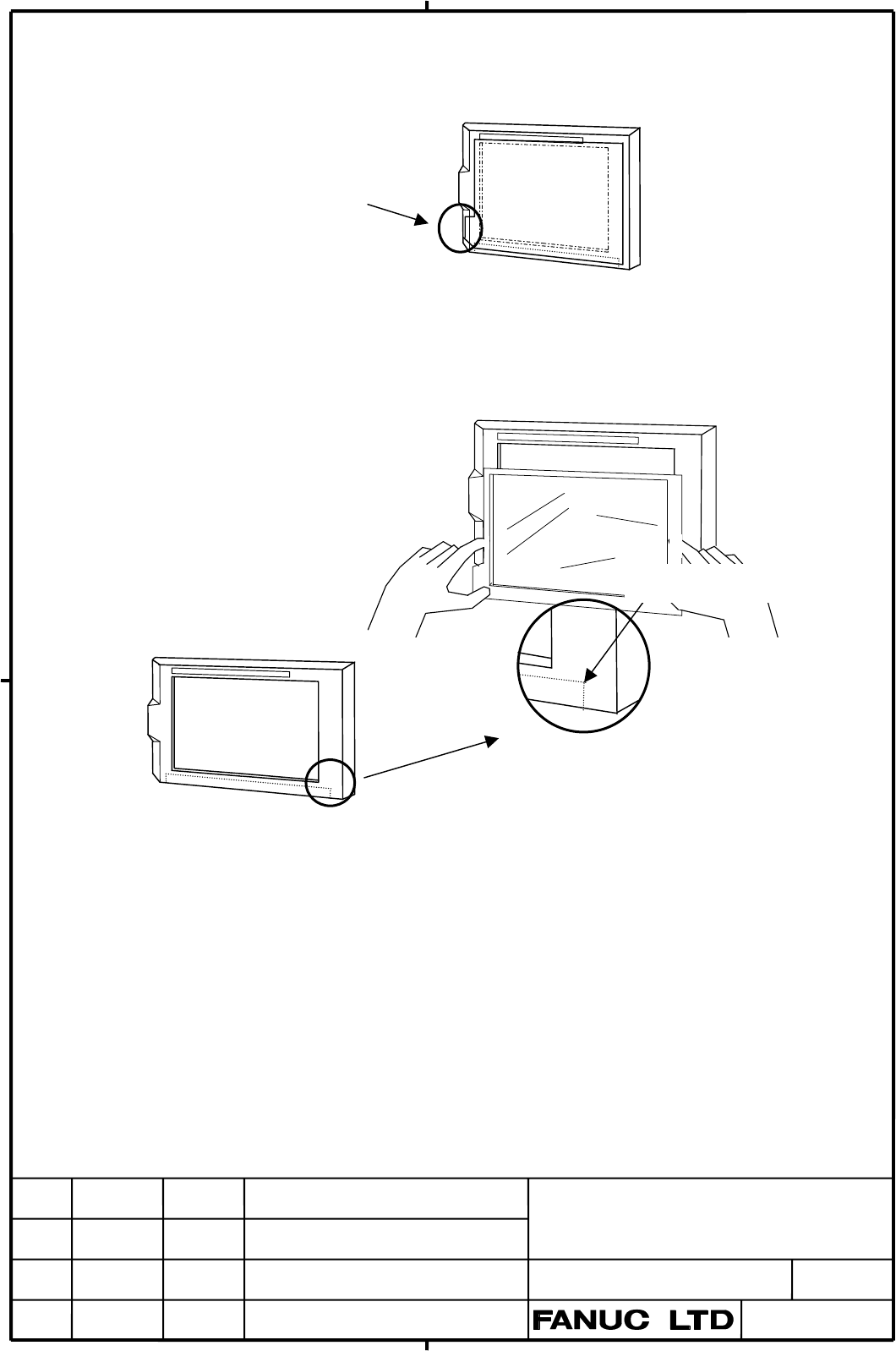

Method of exchanging Touch Panel Protection Sheet (A02B-0236-K130)
1. At first, strip the old Touch Panel Protection Sheet off.
2. Clean the face of the LCD well.
3. Strip the film on the back of the new Touch Panel Protection Sheet (this side is to stick on the LCD face.)
4. Put the tab of exchange on the lower left side of the new one, and stick the Touch Panel Protection Sheet. At
this time, align the overhang edge at bottom of the gray plastic frame with the overhang edge of the Touch
Panel Protection Sheet. In addition, prevent dust from entering between the LCD and the Touch Panel
Protection Sheet.
5. Stick the four sides while pushing out air between the touch panel and the Touch Panel Protection Sheet.
- Do not pull the Touch Panel Protection Sheet to correct its position with the part of the sheet kept stuck to the
touch panel.
6. Press the adhesive parts of the four sides, and stick the Touch Panel Protection Sheet completely.
- Check that the four corners and four sides of the Touch Panel Protection Sheet is not floating.
Tab for exchange
Guide position
