5.8. Method of Exchanging Touch Panel Protection Sheet
PANEL i has a Touch Panel Protection Sheet on the face of Touch Panel to protect the Touch Panel. When the
screen cannot be watched clearly because of some damages or stains, exchange the Touch Panel Protection Sheet.
Please prepare the following.
Name Specification
160 i /180 i /210i With Softkey
300 i
A02B-0236-K110 for 10.4”LCD
160 i /180 i /210i Without Softkey A02B-0236-K130
for 12.1”LCD A02B-0236-K118
Touch Panel
Protection Sheet
for 15.0”LCD A08B-0082-K020

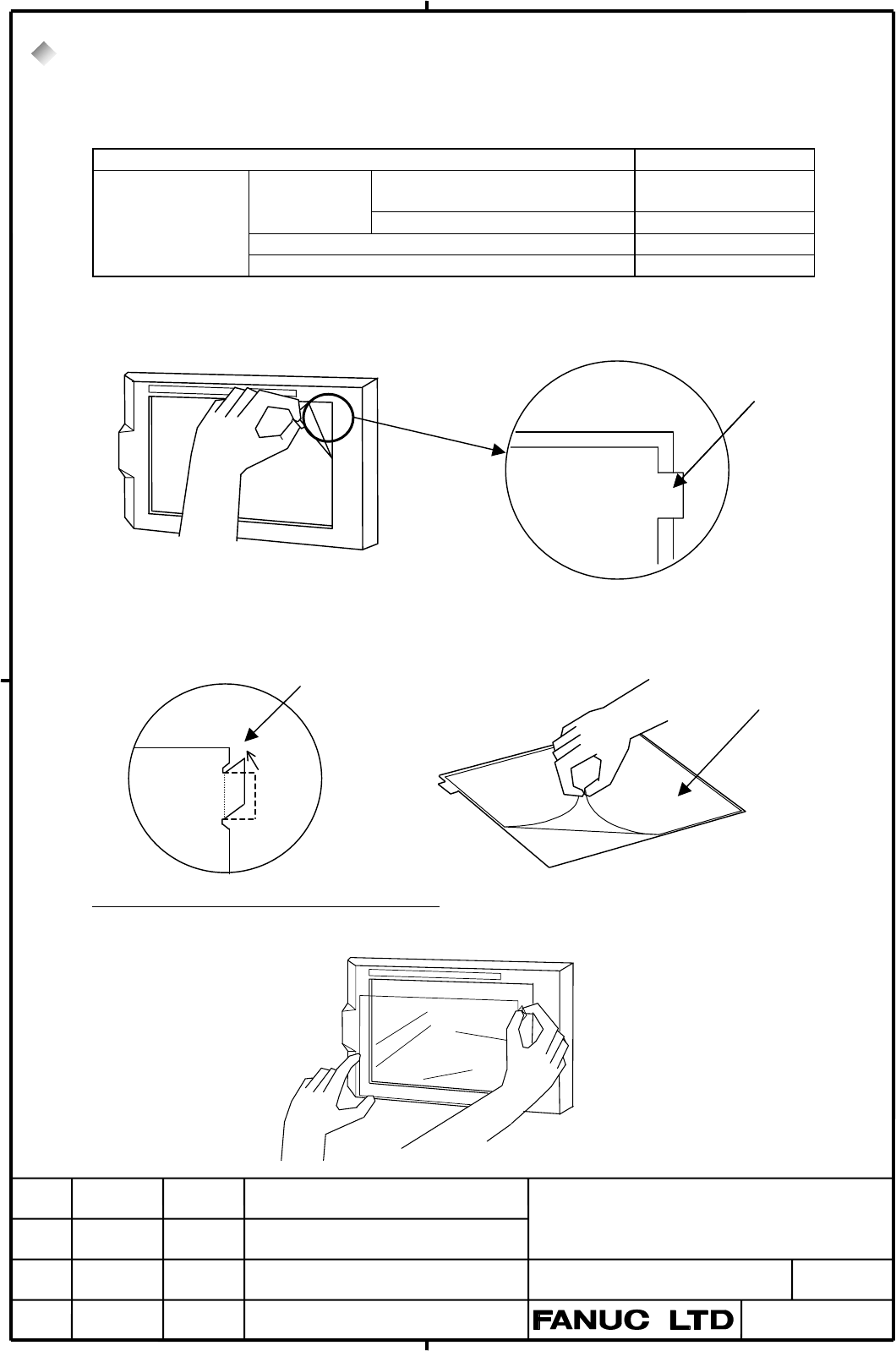

Method of exchanging Touch Panel Protection Sheet (except A02B-0236-K130)
(1) At first, strip the old Touch Panel Protection Sheet off.
(2) Clean the face of the LCD well.
(3) Bend a tab for exchange to surface side in accordance with the following left-side picture.(At an angle of about
60°)
(4) Strip the white film on the back of the new Touch Panel Protection Sheet (this side is to stick on the LCD face) off.
(5) Put the tab on the upper right side of the new one, and stick it on the face of the LCD with care not to be entered
the dust or etc. between the LCD and the Touch Panel Protection Sheet as it enters into the frame.
LCD side
Touch Panel
Protection Sheet
Tab for exchange
Previous page
Next page
