FANUC Series 16i/18i/21i Additional Manual Page 2

Additional Manual
2002/08/09 T.Inagaki E.Genma
1. Outline
By using optional function "
Linear scale I/F with absolute address referenced mark", we can
use "Linear scale I/F with absolute address referenced mark (A/B phase)", and "Linear scale
with distance-coded reference marks (serial)"
1.1 Linear scale I/F with absolute address referenced mark (A/B
phase)
The interval of each reference marks of linear scale I/F with absolute address
referenced mark (A/B phase) are variable. Accordingly, if the interval is determined,
the absolute position can be determined. The CNC measures the interval of
reference marks by axis moving of short distance and determines the absolute
position. Consequently the reference position can be established without moving to
reference position.

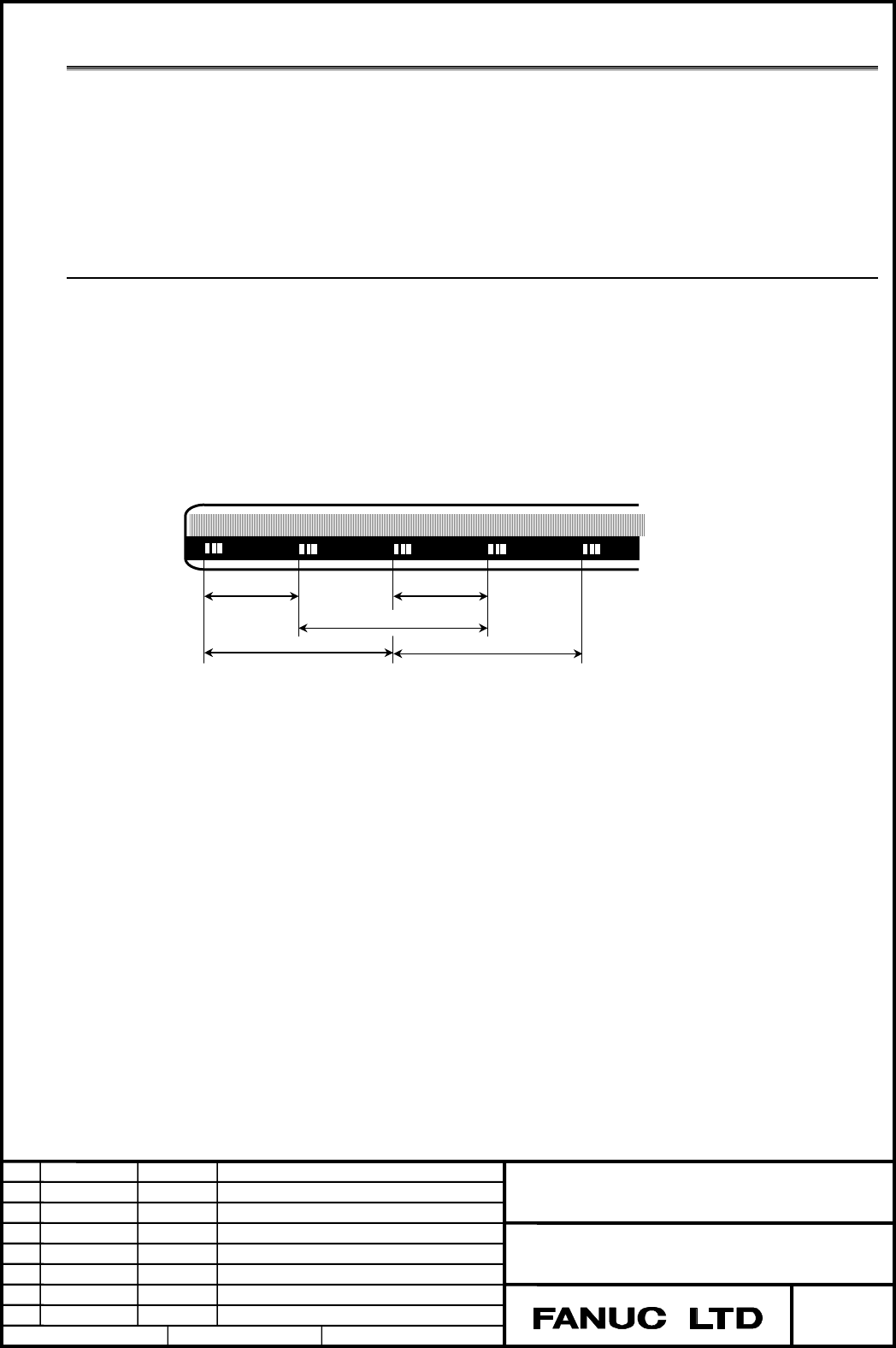

Fig.1 Example of linear scale I/F with absolute address referenced mark (A/B phase)
* This is an optional function.
Reference mark 1 Reference mark 2 Mark 2 Mark 1
Mark 1
20.00
20.00
20.0
2
10.04
10.0
2
A-78754EN
FANUC Series 16i/18i/21i –B, 0i –B/C
Linear scale I/F with absolute address referenced
mark / Distance coded scale
Drawing No.
Page
Descri
p
tionDate Edit
2/32
03 2004/11/30 T,Inagaki (3) is added or altered.
02 2002/11/18 T
,
Ina
g
aki
(
2
)
is added or altered. E.Genma
Title
Previous page
Next page

Contents Summary of FANUC Series 16i/18i/21i Additional Manual
