FANUC Series 16i/18i/21i Additional Manual Page 8

Additional Manual
2002/08/09 T.Inagaki E.Genma
A-78754EN
FANUC Series 16i/18i/21i –B, 0i –B/C
Linear scale I/F with absolute address referenced
mark / Distance coded scale
Title
Drawing No.
Page
Descri
p
tionDate Edit
8/32
03 2004/11/30 T,Inagaki (3) is added or altered.
02 2002/11/18 T
,
Ina
g
aki
(
2
)
is added or altered. E.Genma
9
.
6
4
9
.
98
9
.
96
1
.
.
.
.
9
.
9
4
20.00
20.00
20.00
A
B
C
b
a
(5) Rotary encoder with absolute address referenced mark (A/B phase)
(a) When the rotary encoder with absolute address referenced mark (A/B phase) is used,
please set a parameter No.1815#3 (DCR) to “1”.
In case of rotary encoder with absolute address referenced mark (A/B phase), the

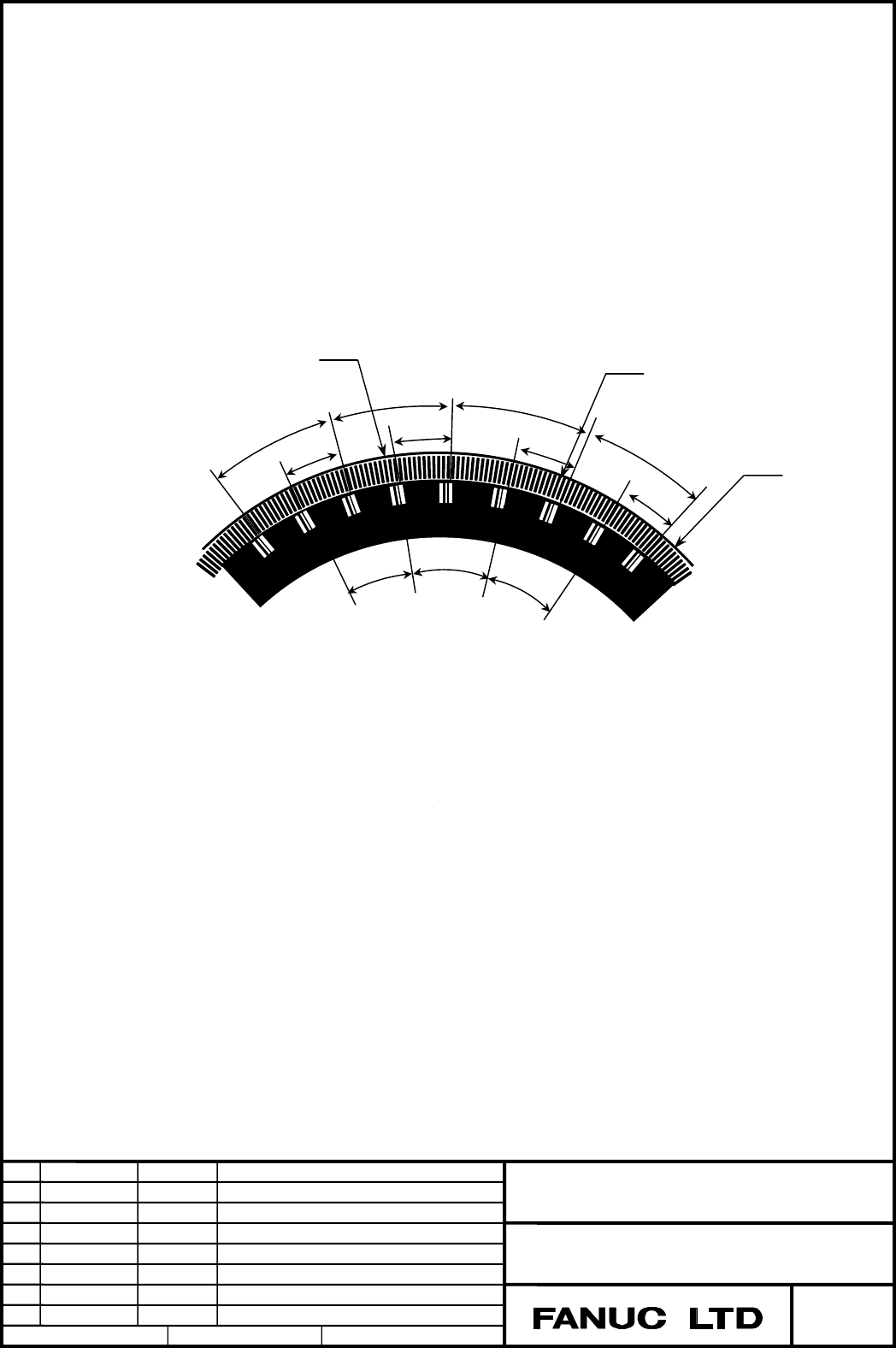

marker interval may be different from parameter setting value. (a-b section of the
following figure) When the reference point return is executed through this section, it
is not able to establish the reference point. Therefore, in case of rotary encoder with
absolute address referenced mark (A/B phase), if the reference point return is started
for B point from A point of below figure, the reference point is not established yet at B
point. The reference point return is re-started for C point. The reference point return
procedure is finished at C point.
.
(b) When the reference point return procedure is executed, the coordinate value are
rounded in 0 to 360 degree, even if a parameter No. 1006#1(ROS) is set to “1”
(Machine coordinate values are linear axis type).
(c) In case of rotary encoder with absolute address referenced mark (A/B phase), only
the measurement by three points or four points is possible. (parameter 1802#2(DC2)
is disregarded)
