FANUC Series 16i/18i/21i Additional Manual Page 5

Additional Manual
2002/08/09 T.Inagaki E.Genma
2.2 Simple synchronous axis
The function is available for only FS16i/18i/21i-MB,18i-MB5.
When the function is applied for simple synchronous axis, the following condition should
be kept.
(1) Linear scale I/F with absolute address referenced mark (A/B phase) with the same
reference marks at intervals should be applied for the master axis and the slave axis.
(2) The master axis scale and the slave axis scale should be installed in parallel direction.
(The zero positions should be faced the same direction.)
(3) To the parameters, which relates to this function (except No.1883, No.1884), the
same value must be set for the master axis and for the slave axis.
(4) During operating the establishment of reference position, the state of selecting the
manual feed axis for simple synchronous control signals (SYNCJn<G0140>) should
be kept.
Procedure for Reference Position Establishment by synchronous axis is as follows.
- When either reference mark of the master axis or the slave axis is detected, the both
axes stop. And the both axes are fed again at a Reference Position Return FL Feedrate.
- The above mentioned operations are repeated until the master axis and the slave axis
detect enough (3 or 4) reference marks.
- Absolute position of both axes are calculated and Reference Position Establishment
Signal (ZRF1,ZRF2,...) turns to "1".

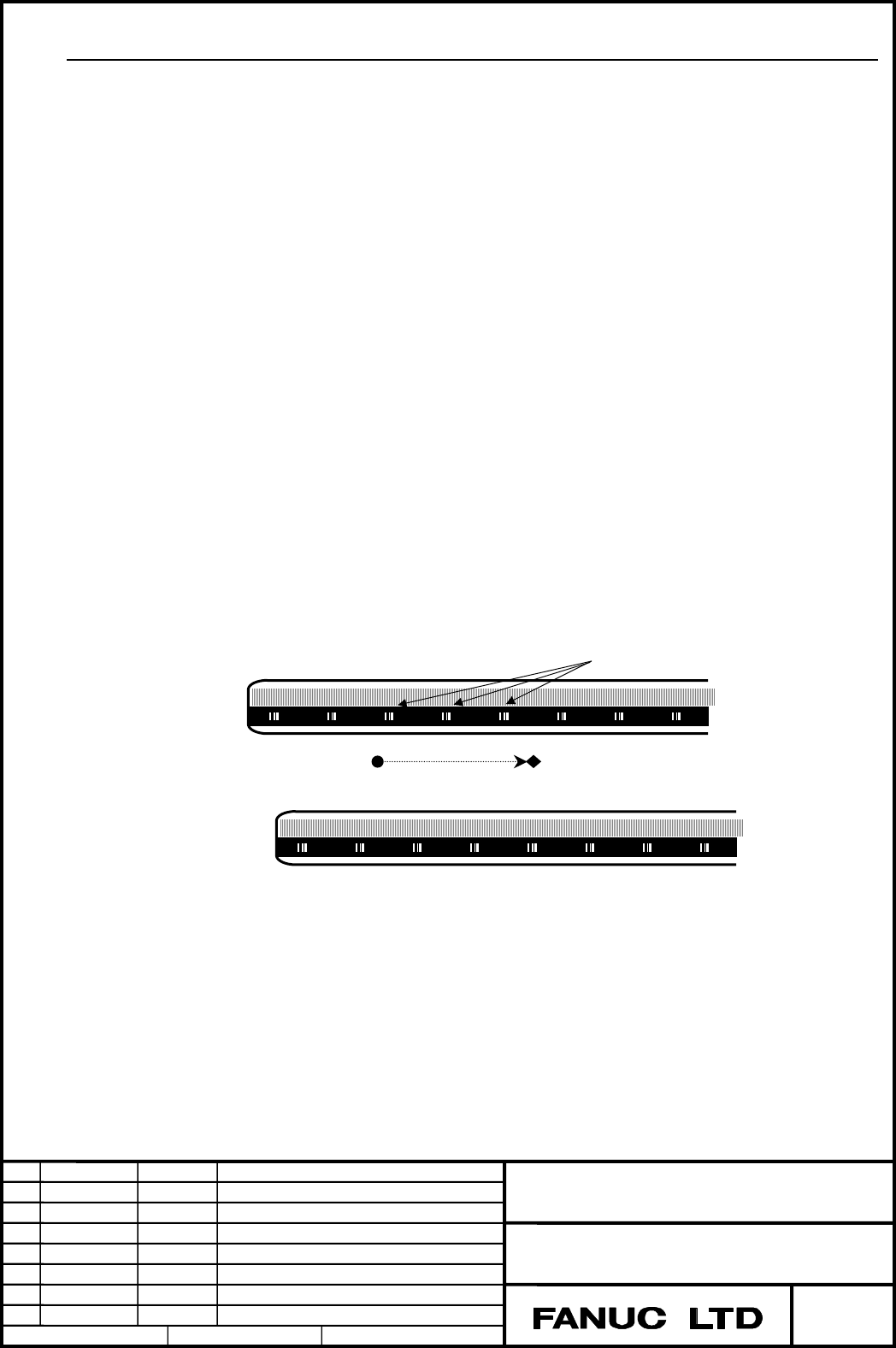

(Example of 3 points measurement system)
(b) (c)
(a)
Scale end
Reference mark
End Point Start point
(3) (1) (2)
Master axis
Slave axis
In the above example, the following sequence is executed.
a. When the reference mark (1) of the master axis is detected, both master axis and
slave axis stop.
b. Both the axes begin to move again at a Reference Position Return FL feedrate.
c. When the reference mark
(a) of the slave axis is detected, both axes stop again.
d. Both the axes begin to move again at FL feedrate.
e. Both axes repeat the operation until all point
((2) -> (b) ->(3) -> (c)) are detected.
f. When the slave axis detects the third reference mark (c), both the axes end the
Reference Position Establishment.
A-78754EN
FANUC Series 16i/18i/21i –B, 0i –B/C
Linear scale I/F with absolute address referenced
mark / Distance coded scale
Drawing No.
Page
Descri
p
tionDate Edit
5/32
03 2004/11/30 T,Inagaki (3) is added or altered.
02 2002/11/18 T
,
Ina
g
aki
(
2
)
is added or altered. E.Genma
