Series 0i - Model A Parameter manual Page 153

Parameter manual
B–63510EN/01
4. DESCRIPTION OF PARAMETERS
147
For 0i–TA, this parameter sets the return or clearance value in drilling
canned cycle G83.
Parameter No.5101 #2 RTR=0
(Peck drilling cycle)
Parameter No.5101 #2 RTR=0
(High speed peck drilling cycle)
q : Depth of cut
d : Return value
R point
Z point
q
q
q
d
d
q : Depth of cut
d : Clearance value
R point
Z point
q
q
q
d
d
G83 for 0i–TA

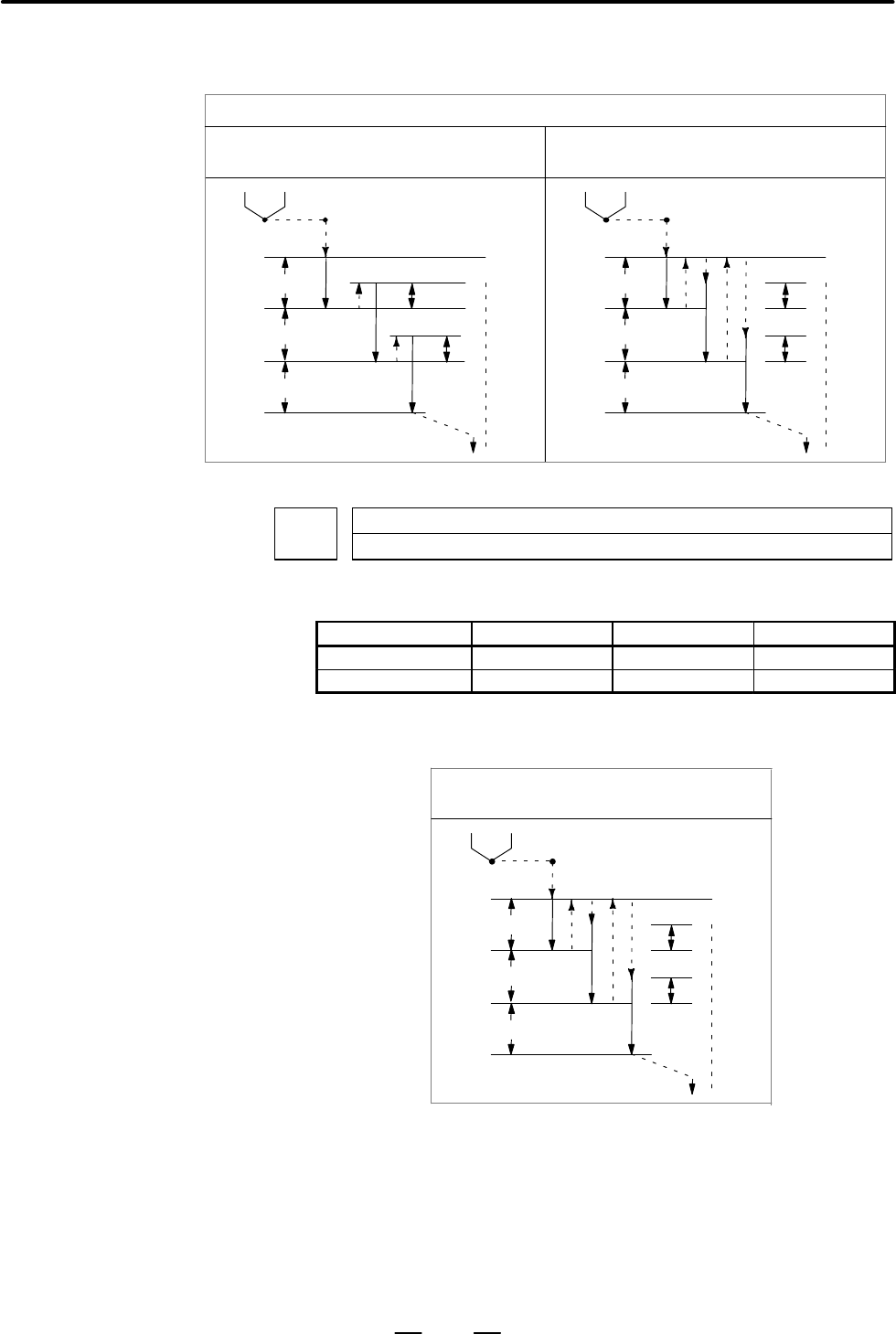

Fig.4.16.1 (b) Drilling Canned Cycle G83
5115
Clearance of canned cycle G83
[Data type] Word
[Unit of data]
Increment system IS-B IS-C Unit
Millimeter input 0.001 0.001 mm
Inch input 0.0001 0.0001 inch
[Valid data range] 0 to 32767
This parameter sets the clearance of peck drilling cycle G83.
G83 for 16–MC
q : Depth of cut
d : Clearance value
R point
Z point
q
q
q
d
d
Fig.4.16.1 (c) Peck drilling cycle G83
