The exhaust filter element should be installed securely. If it is
installed incorrectly, or the O–ring is not inserted accurately, oil
mist (white) will come out from the exhaust outlet.
B–70114EN/04
5. MAINTENANCE
132
Replace the filter every 3000 hours of operation or every year of use,
whichever is earlier. If the filter gets clogged, the pump output becomes
low.

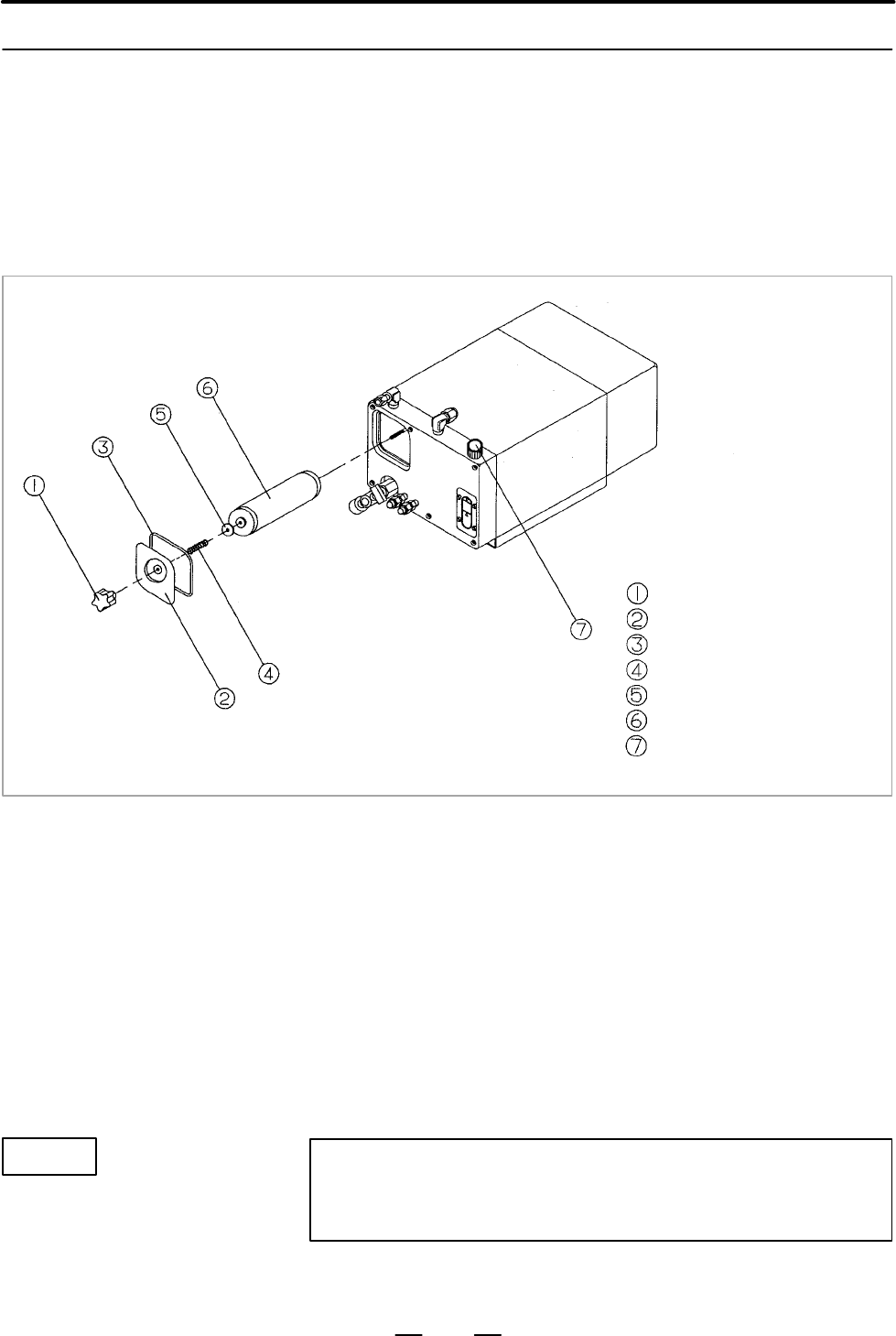

Fig. 5.3.4 shows where the filter of a exhaust pump is located.
SCREW KNOB
FILTER COVER
O–RING
SPRING
WASHER
EXHAUST FILTER ELEMENT
OIL INLET PLUG
Fig. 5.3.4 Exchange of exhaust pump filter
1. Stop the oscillator, and turn off the power.
2. Remove the maintenance panel.
3. Remove the black screw button from the pump.
4. Remove the filter cover and O–ring.
5. Remove the spring and washer.
6. Pull out the exhaust filter element.
7. Orient a new exhaust filter element correctly, and reverse the
procedure from step 5 to step 2. (An upward arrow is indicated on the
front surface of the filter element.)
8. Put the maintenance panel back in place, and turn on the power.
5.3.4
Exhaust Pump Filter
D Replacement method
Note
