5. MAINTENANCE
133
Replace the filter every 1500 hours of operation or every 6 months of use,
whichever is earlier. Fig. 5.3.5 shows the exhaust pipe filter. None of the
C1500B, C2000B, C3000C, C3000D, and C4000A is equipped with this
filter.
Clamp
Housing head
Housing
O–ring
(G90 or G85, depending on model; indicated on the housing surface)
Fastening nut
Cartridge filter
(manufactured by AdvanTech Toyo; TCG–045–SIFS)
Plate gasket

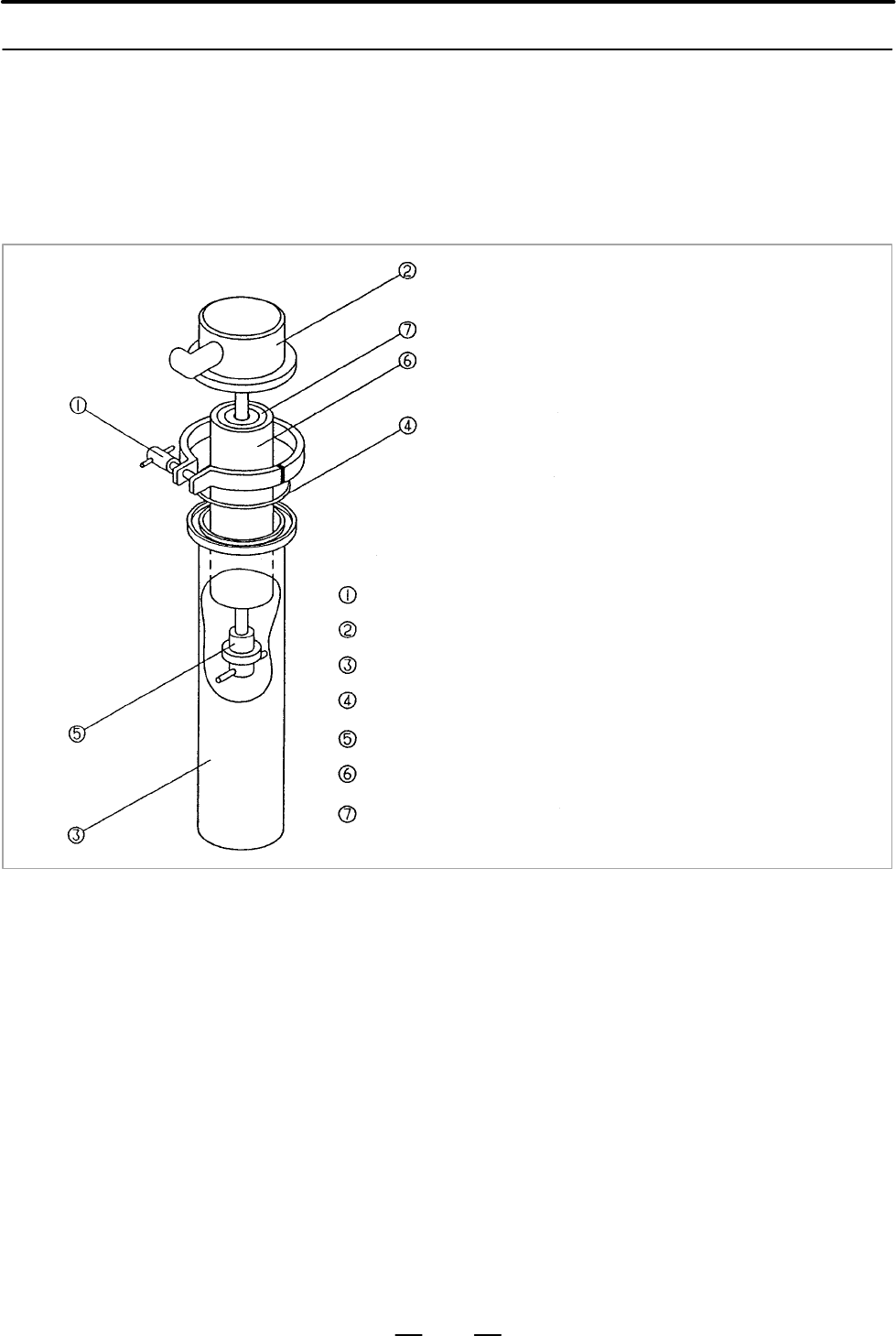

Fig. 5.3.5 Exhaust system filter
1. Stop the oscillator, and turn off the power.
2. Remove the maintenance panel.
3. Wipe the dust off the periphery of the housing and the clamp.
4 Wash your hands and wear clean vinyl gloves.
5. Loosen the clamp, and remove the housing head from the housing.
6. Loosen the fastening nut on the cartridge filter, and take out the filter.
7. Remove the O–ring, and clean it with lint–free paper dipped with
alcohol.
8. Clean the inner surface of the housing head and the O–ring groove with
lint–free paper dipped in alcohol, then let them dry.
9. Put the O–ring back in place. If the O–ring is deformed or deteriorated,
replace it with a spare, whose rating is indicated on the periphery of
the housing.
5.3.5
Exhaust System Filter
D Replacement method
Previous page
Next page
