7. TROUBLESHOOTING

B–63505EN/02

272

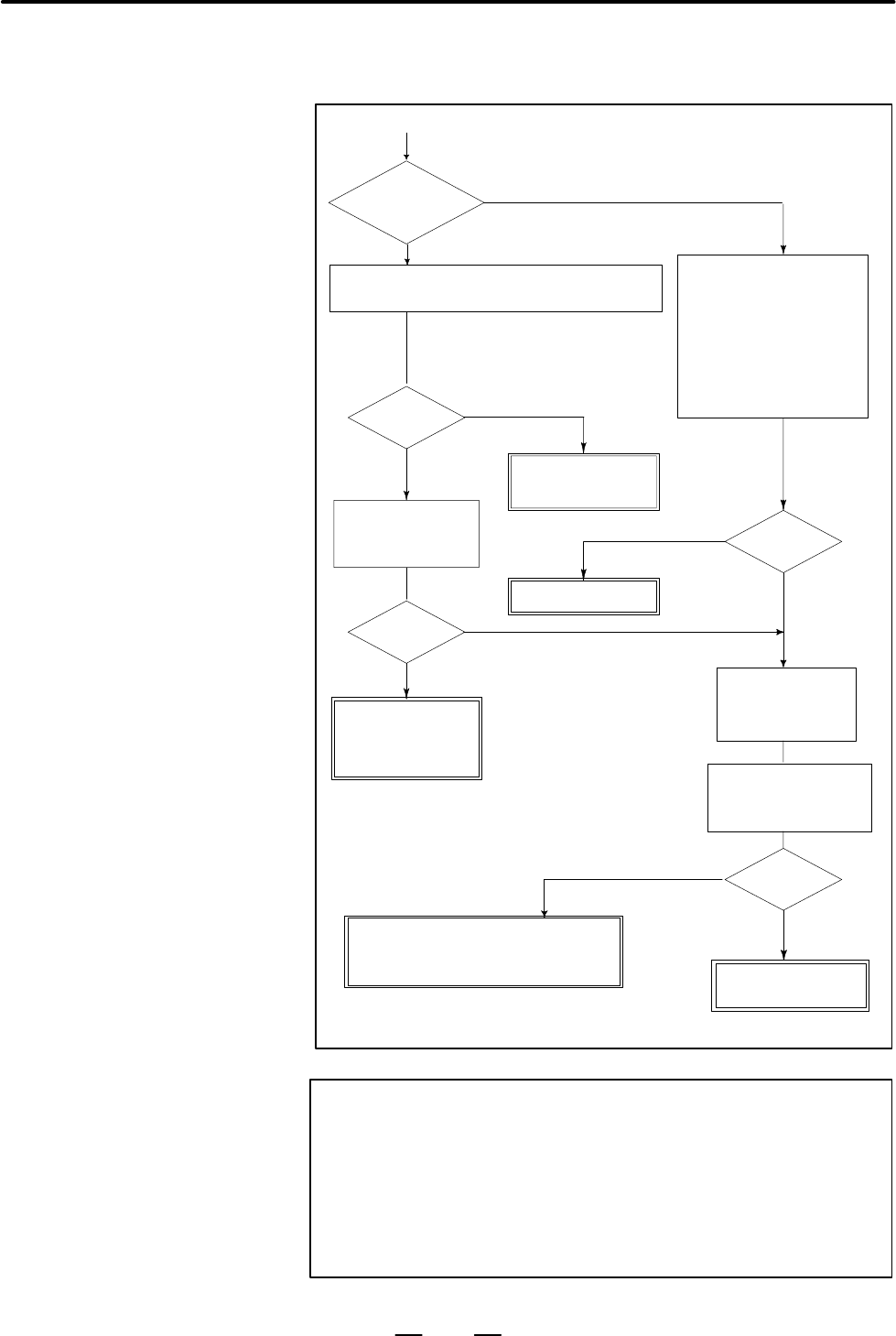

Position error amount at stop (DGN 300) exceeds a value set by parameter

No. 1829.

(START)

Is it vertical axis?

Check parameters 1825 and 1829 if they are cor-

rect (see parameter list attached)

Correct ?

Check servo off signal of

each axis. The servo off

function is valid when DGN

G126 bits 0 to 7 is 1.

Servo off funciton is used to

escape overload of an axis

when the axis is mechani-

cally clamped.

Set correct

parameters.

Perform initial setting

of servo parameters

“1” ?

Check PMC

Note)

Recovered ?

Turn off NC power

and remove power

line of motor then

turn on power

Set digital servo pa-

rameters according

to parameter list

Power

supplied?

S Servo amp. module is faulty.

S Servo module failure on main board:

S Main board or option 2 board is faulty.

Motor power line

is broken

Note) Save current CNC pa-

rameters in a floppy disk or

such before performing ini-

tial setting for safety.

Measure in DC range

Be carefull vertical

axis does not drop.

( No power ) ON

YES

Check the motor power

interphase voltage at ter-

minal block TB2 of the

power supply module.

NOTE

1 The configuration and mounting locations of the modules

vary with the specification of the main board. For details,

see Subsec. 2.2.1.

2 When the main board is replaced, all the data stored in

memory is lost. Set NC data again, referring to Chapter 3

“INPUT AND OUTPUT OF DATA”.

7.18

ALARM 410

(EXCESSIVE

POSITION ERROR

AMOUNT DURING

STOP)
