2. 15i SERIES HARDWARE
B–63785EN/01
170

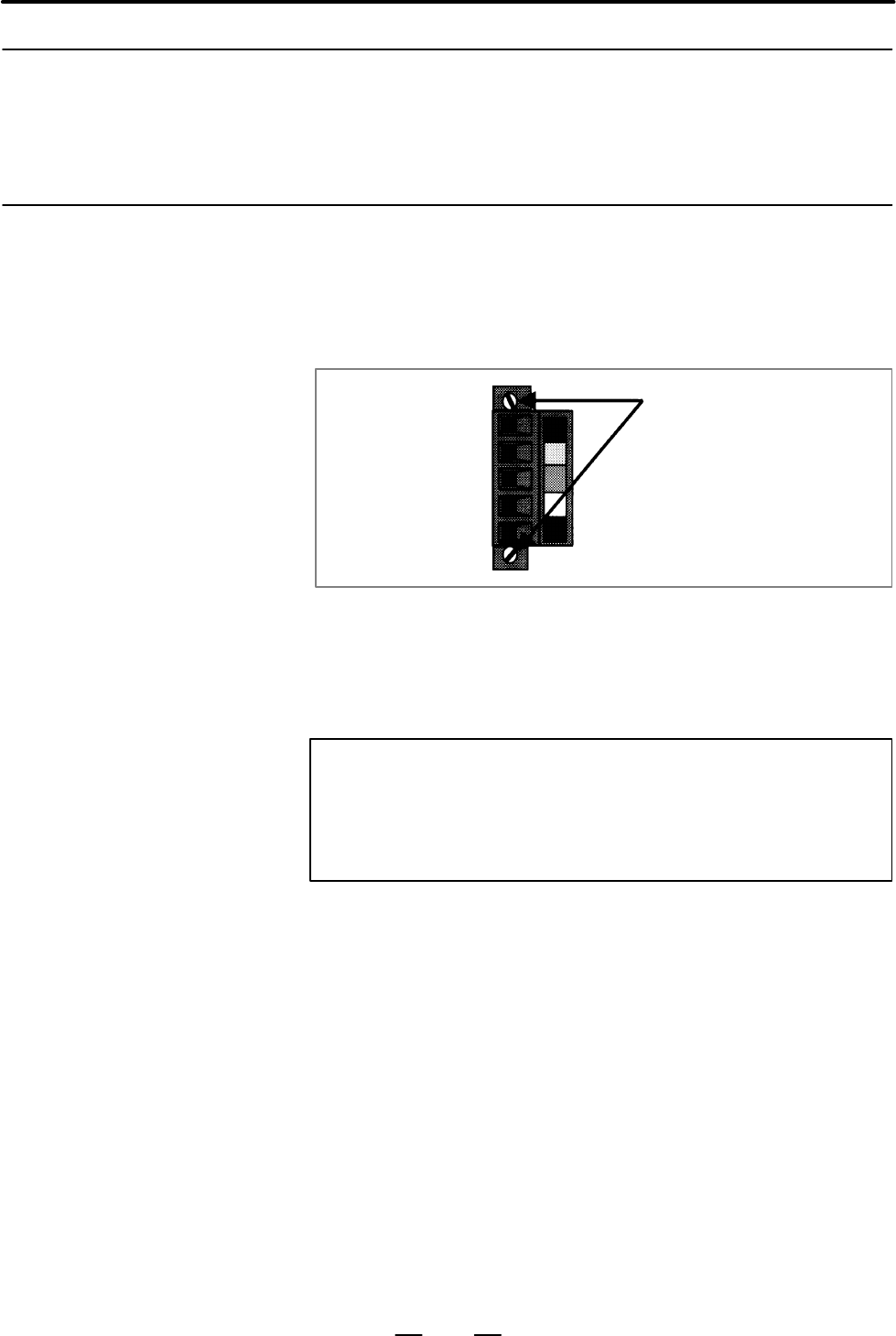

(1) Remove the terminal block from the connector on the DeviceNet
board. The terminal block can be pulled out after the screws on both
sides are loosened. The terminal block can be removed with cables
connected.
Screw
(2)Remove the main CPU board or additional axis board. The main CPU
board or additional axis board can be removed after the terminal block
of the DeviceNet connector is removed.
(3)While pressing the hook on the pull of the DeviceNet board, pull the
board toward you.
NOTE
The DeviceNet board can be removed after the main CPU
board or additional axis board is removed. If an attempt is
made to pull out the DeviceNet board without removing the
main CPU board, the printed board may be damaged.
2.5.3
Mounting and
Removing the
DeviceNet Board
2.5.3.1
Removing the board
