3. DATA INPUT/OUTPUT
273
The floppy directory screen provides the functions for using the FANUC
Floppy Cassette, FANUC FA Card, FANUC Handy File, and FANUC
PROGRAM FILE Mate connected to the serial interface (RS–232C or
RS–422) and a variety of utilities.
1 Output data such as part programs and parameters to an external device
2 Input data such as part programs and parameters from an external
device
3 List the files on an external unit
Follow either of the procedures described below to display the floppy
directory screen.
Method 1
(1)Press the
OFFSET
SETTING
function key several times, until the floppy
directory screen appears.
Method 2
(1)Press the
OFFSET
SETTING
function key.
(2)Click the [RS232C] soft key.

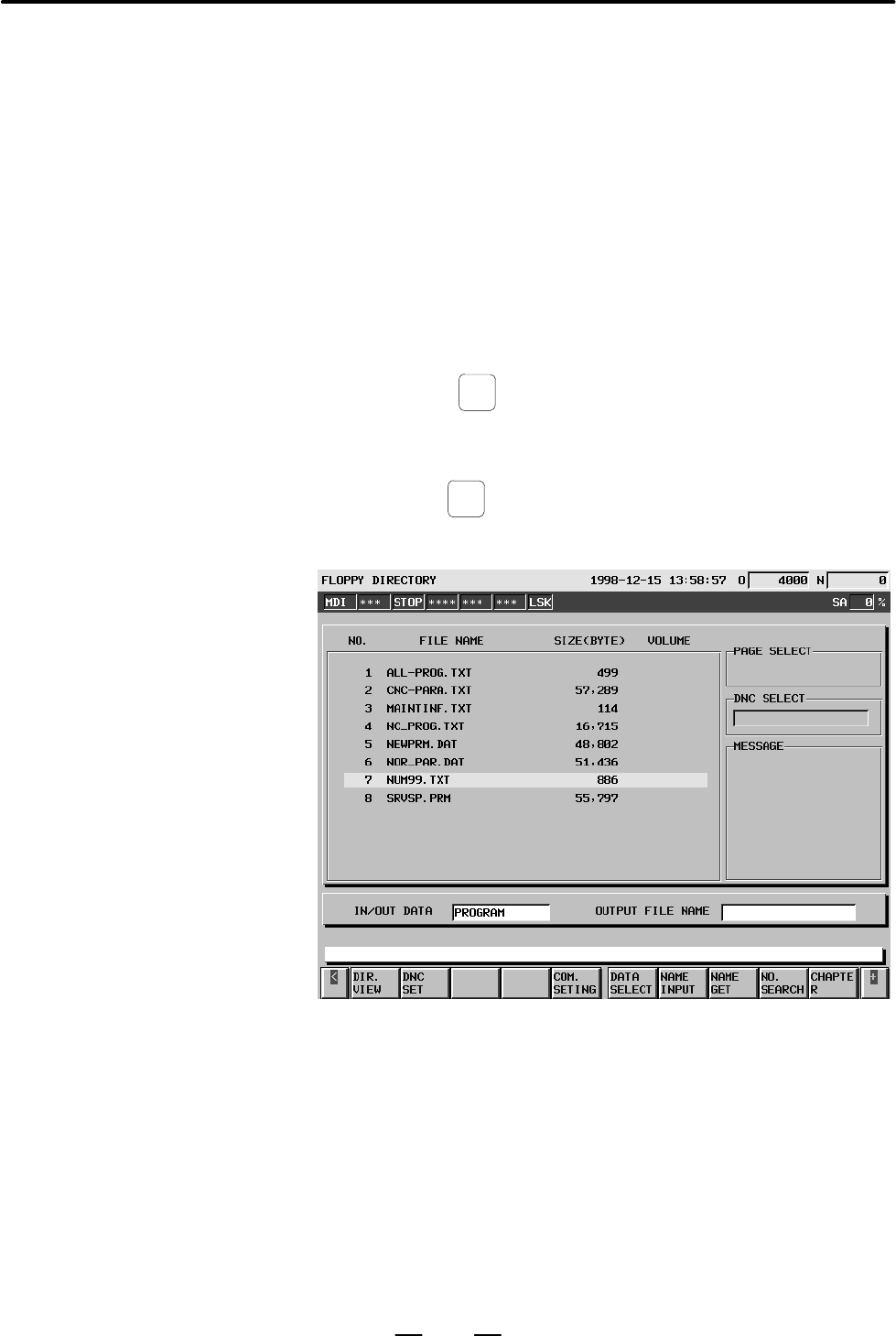

Fig. 3.3 Floppy directory screen
The files contained on the inserted floppy or FA card can be listed. Up
to 12 files can be listed per page.
NO.: File number
FILE NAME: File name
SIZE: File size (in bytes)
VOLUME: Volume number of a multivolume file
A multivolume file is a file stored on multiple floppies.
The volume numbers indicate the order of these floppies.
3.3
FLOPPY DIRECTORY
SCREEN
Display
D Listing the files on a
floppy
Previous page
Next page
