Series 15i/150i - Model B Maintenance manual Page 219

Maintenance manual
B–63785EN/01
2. 15i SERIES HARDWARE
197
Investigate the cause that fuse is blown out at first, then remove it.
Fuse is blown out when power lines are shorted in CNC display unit with PC functions. If the
fuse is blown out, check bellow points.
Any conductor is shorted to the main board.
Failure of PCI extended card or error at inserting PCI extended card.
Mis–connection of cables.
When fuse is blown out, any damage may be exist in the main board. And the damaged parts
must be exchanged.
(1) Make sure that CNC display unit with PC functions is turned off the
power.
(2) Enable to work from rear side of CNC display unit with PC functions
by taking it out from panel, etc.
(3) Remove the old fuse, and put a new fuse to the socket exactly.
(4) Mount CNC display unit with PC functions again.
(5) Turn on the power, then confirm that CNC display unit with PC
functions is turned on.
10.4”LCD
12.1”LCD
In case of
15” LCD
In case of
Fuse :
A02B–0236–K101
Fuse :
A08B–0082–K001

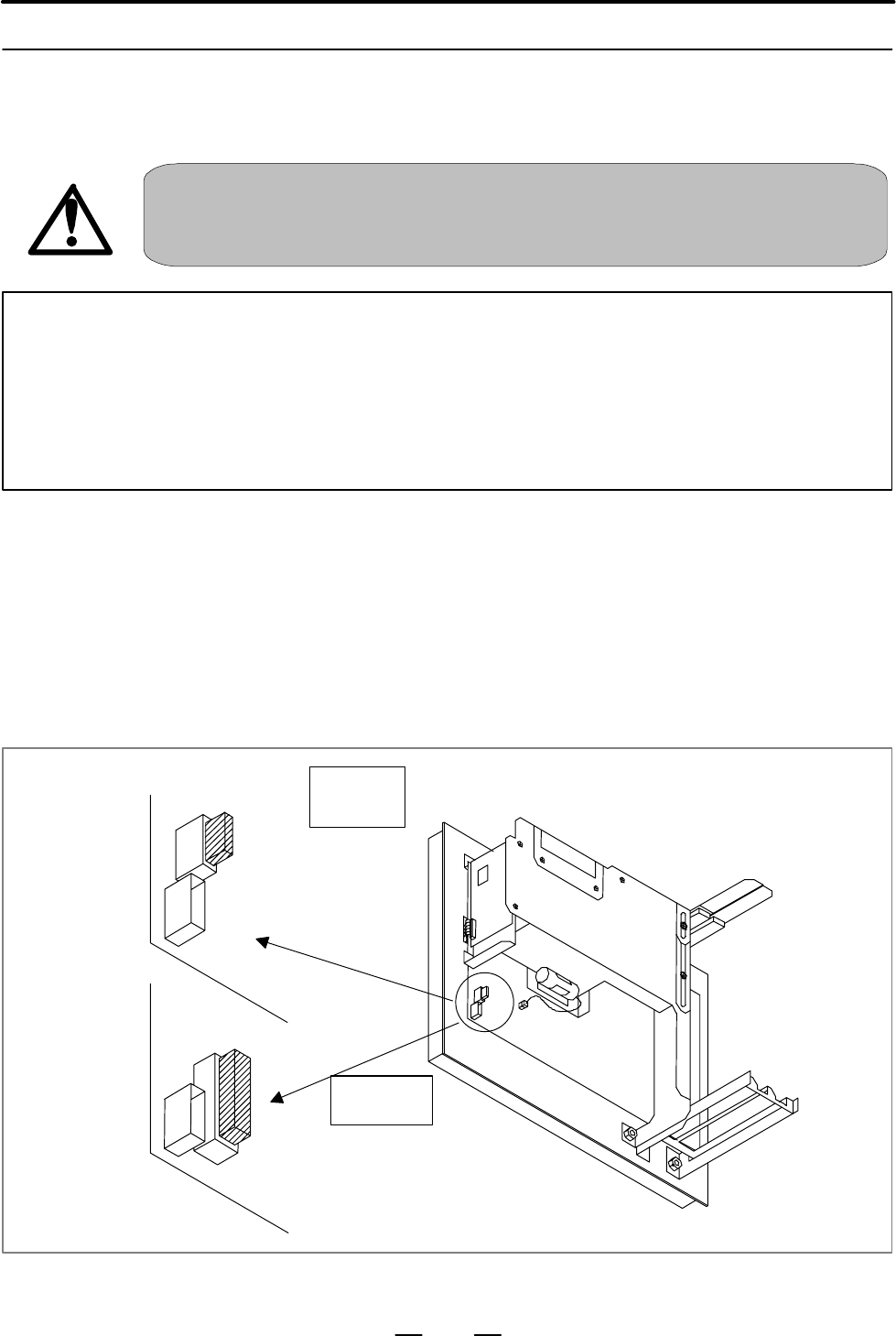

Fig. 2.15.3.2 Exchanging Fuse
2.15.3.2
Method of exchanging
fuse
