Series 15i/150i - Model B Maintenance manual Page 47

Maintenance manual
B–63785EN/01
1. SCREEN INDICATIONS AND OPERATIONS
25
(4) Program–editing state
The state of program editing is indicated.
READ:Being registered
PNCH: Program being output
VRFY: Being verified
SRCH: Being searched for
COND: Memory being rearranged
EDIT: Being edited in another way (such as INSERT or ALTER)
****:Editing is not performed.

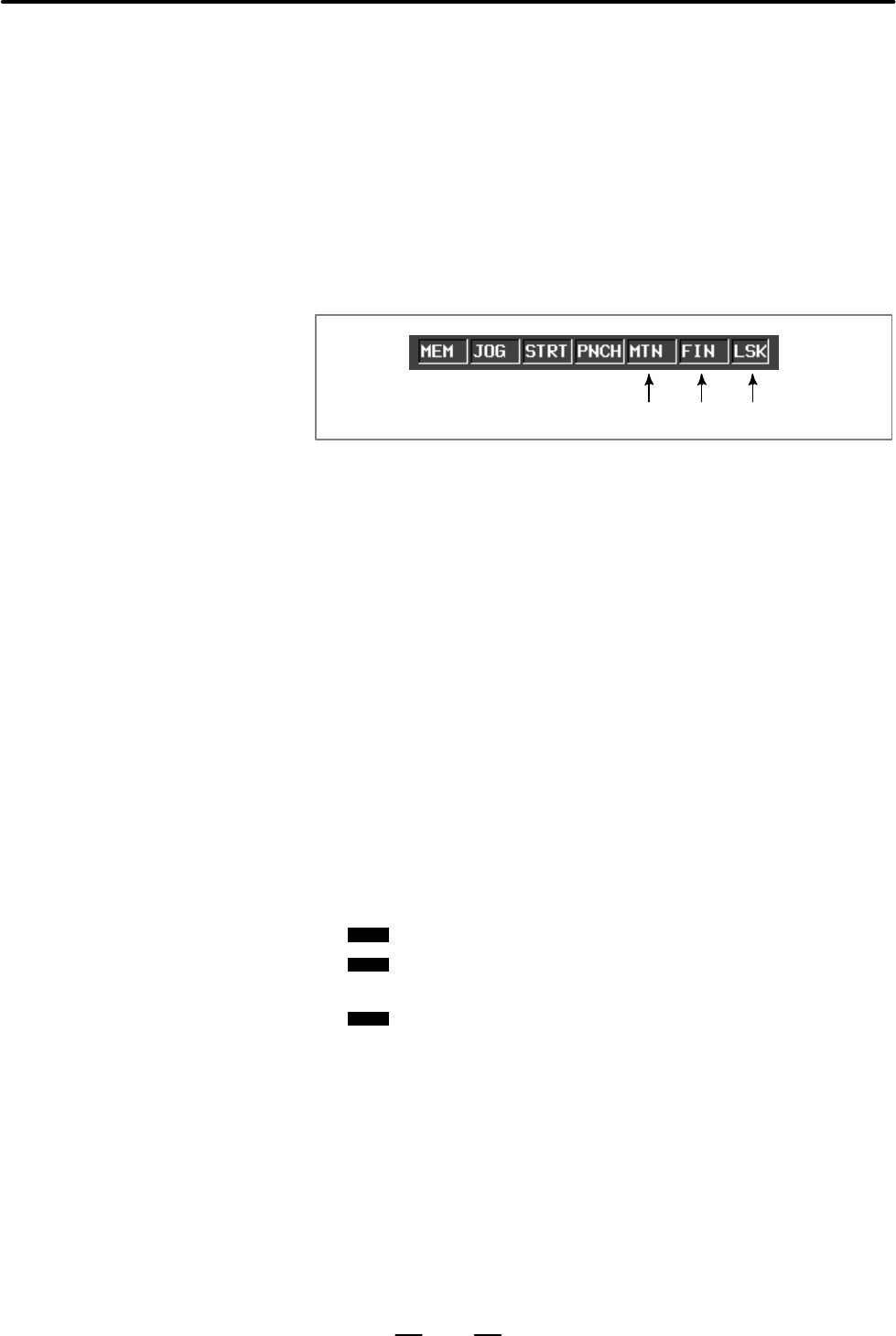

(5) (6) (7)
(5) State of movement along axis, dwell, or emergency stop
The state of movement along axis, dwell, or emergency stop is
indicated.
MTN: Being moved along the axis
DWL: During dwell
EMG: During emergency stop
***: None of the above states
(6) MSTB state
Whether a miscellaneous function such as MSTB is being executed
is indicated.
FIN: Miscellaneous function such as MSTB being executed (waiting
for a completion signal from the PMC)
***: Miscellaneous function such as MSTB not being executed
(7) Alarm state and label–skip state
The state of an alarm, a warning, the battery, or a label skip is
indicated.
ALM : Alarm being generated (reverse indication and blinking)
WRN : Warning message being indicated
(reverse indication and blinking)
BAT : Battery life nearly running out
(reverse indication and blinking)
LSK:Label–skip state in data input
(blank): None of the above states
