1. Fanuc
  2. Series 15i/150i - Model B

Series 15i/150i - Model B Maintenance manual Page 43

Maintenance manual
B–63785EN/01
1. SCREEN INDICATIONS AND OPERATIONS
21

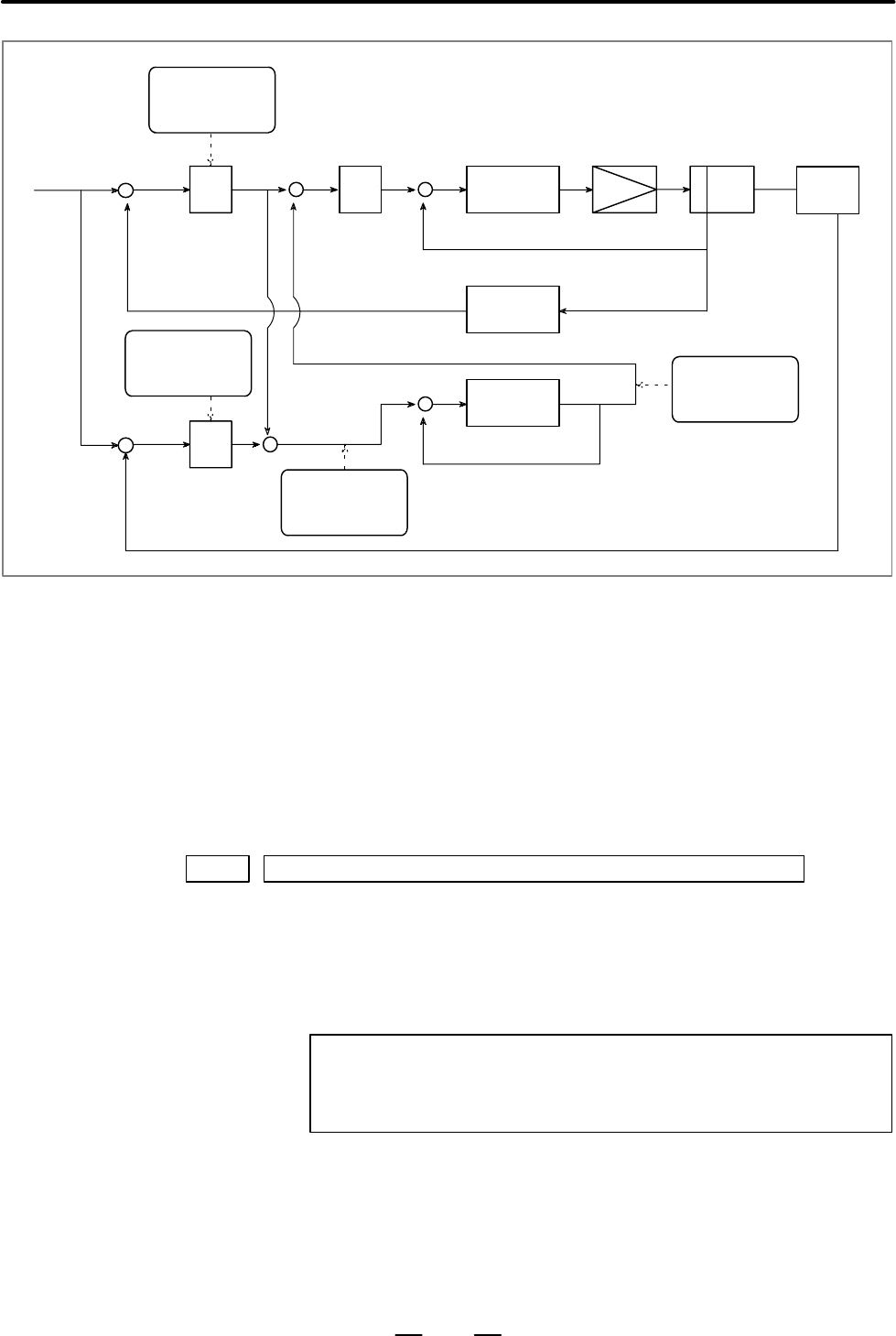

Semi–closed–
loop error
(No. 3513)
S
Kp
Speed
control
Machine
Conversion
coefficient
X time
constant
Closed–loop
error (No. 3512)
Closed–loop–
semi–closed–loop
error (No. 3510)
Dual position com-
pensation amount
(No. 3511)
Motor
Servo amplifier
(Parameters No. 1971 and No. 1972)
Parameter No. 1973
+
–
–
++
+
–
+
+
+
+
–
Command
Ps
S
The αi series servo motor contains thermistors instead of thermostats
contained in conventional models. This function can receive thermistor
data and convert it to a temperature (°C) to provide ”motor temperature”
information.
The αi servo motor has two thermistors: one for detecting the motor
winding temperature and the other for detecting the pulse coder
temperature. When the motor winding temperature reaches 140°C or the
temperature of the printed circuit board in the pulse coder reaches 100°C,
a motor overheat alarm is issued.
3520 Servo motor temperature information
[Data type] Integer axis
[Unit of data] °C
Displays the temperature of the winding of the αi servo motor. When the
temperature reaches 140°C, a motor overheat alarm is issued.
NOTE
The temperature at which an overheat alarm is issued may
have an error of up to 5°C.
D αi servo motor
temperature output
function
