PROGRAMMING

19. HIGH SPEED CUTTING

FUNCTIONS

B–63844EN/02

376

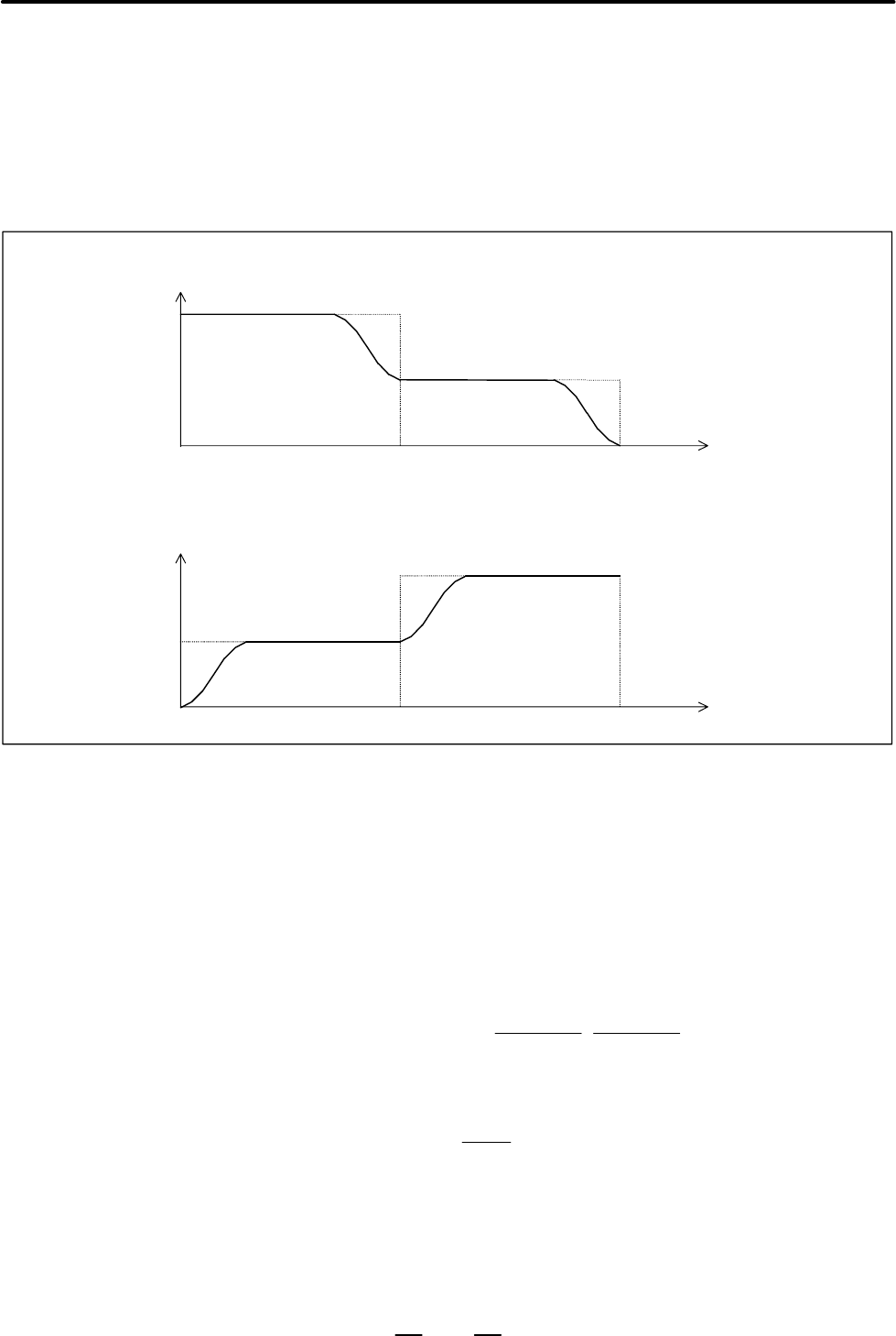

When the feedrate is changed, deceleration and acceleration are

performed as follows:

For deceleration: Bell–shaped deceleration is started in the preceding

block so that deceleration terminates by the beginning of the block in

which the feedrate is changed.

For acceleration: Bell–shaped acceleration is started after the

beginning of the block in which the feedrate is changed.

Deceleration

Time

N2N1

Acceleration

Feedrate

Time

N2N1

Between contiguous two blocks, the feedrate difference for an axis may

exceed the setting (parameter No. 1783). In this case, the feedrate at the

corner is calculated as follows based on the axis for which the ratio of the

actual feedrate difference to the allowable feedrate difference is the

largest. Deceleration is performed so that the feedrate is reached at the

interface of the blocks.

The change in the feedrate for each axis (Vx, Vy, ...) during movement at

the specified feedrate F is compared with the setting of parameter No.

1783 (Vprm–x, Vprm–y, ...). If the change in the feedrate for any axis

exceeds the setting of the parameter, the following expression is used:

Rmax + max

Vprm * x

Vprm * y

,,,

The required feedrate (Fc) is obtained as follows and deceleration is

performed at the corner:

Fc + F

Rmax

For example, assume that the tool move direction changes by 90 degrees

from movement along the X–axis to that along the Y–axis. Also assume

that the specified feedrate is 1000 mm/min and the allowable feedrate

difference (parameter No. 1783) is 500 mm/min. Deceleration is

performed as shown in the figure below:

D Automatic corner

deceleration
