Series 0i - MB Operators manual Page 794

Operators manual

Page of 901

/ 901

1.MANUAL GUIDE 0i MANUAL GUIDE 0i B-63844EN/02

- 770 -

1.5.4.4 Arc

As part of the auxiliary calculation for an arc, the end point

coordinate and center coordinate can be calculated. Furthermore, the

arc itself can be specified by entering the likes of three passing points.

The following soft-keys are displayed on the auxiliary calculation

menu screen.

[ENDPNT] : Menu screen for end point calculation is displayed

[CENTER] : Menu screen for center point calculation is displayed

[CIRCLE] : Menu screen for circle specifying is displayed

For the end point and center point calculation, they are quite similar

to those for the start point case, so refer to the preceding explanation.

Selecting type of calculation

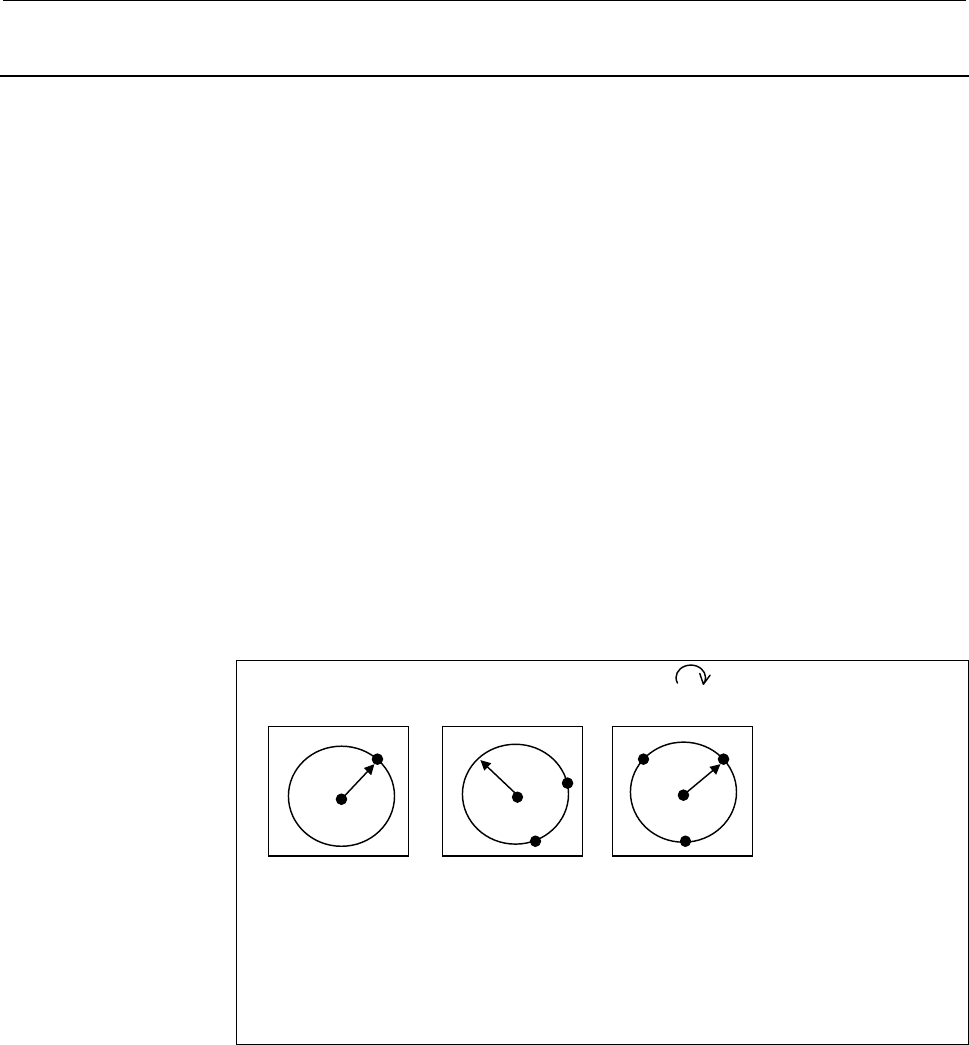

On the menu screen for auxiliary calculation of an arc, press

[CIRCLE]. The following menu screen for specifying a circle is

displayed.

By pressing the cursor keys, you can scroll through the menu items

until you find the item that you want to select. The currently

selected item is highlighted in yellow.

SELECT CALCULATION OF CIRCLE (ARC )

1. CIRCLE BY CENT. & POINT

[ ENDPNT ][ CENTER ][ CIRCLE ][ OK ][CANCEL ]

1. 2. 3.
