MAINTENANCE1. METHOD OF REPLACING BATTERY

B–63844EN/02

786

WARNING

1 When using the built–in batteries (A06B–6073–K001), do

not connect them to the BATL (B3) of connector

CXA2A/CXA2B.

The output voltages from different SVM batteries may be

short–circuited, resulting in the batteries becoming very hot.

2 Do not connect more than one battery to the same BATL

(B3) line. If the output voltage is different between the

batteries, they may be short–circuited, resulting in the

batteries becoming very hot.

3 Install the battery with correct polarity. If the battery is

installed with incorrect polarity, it may overheat, blow out, or

catch fire.

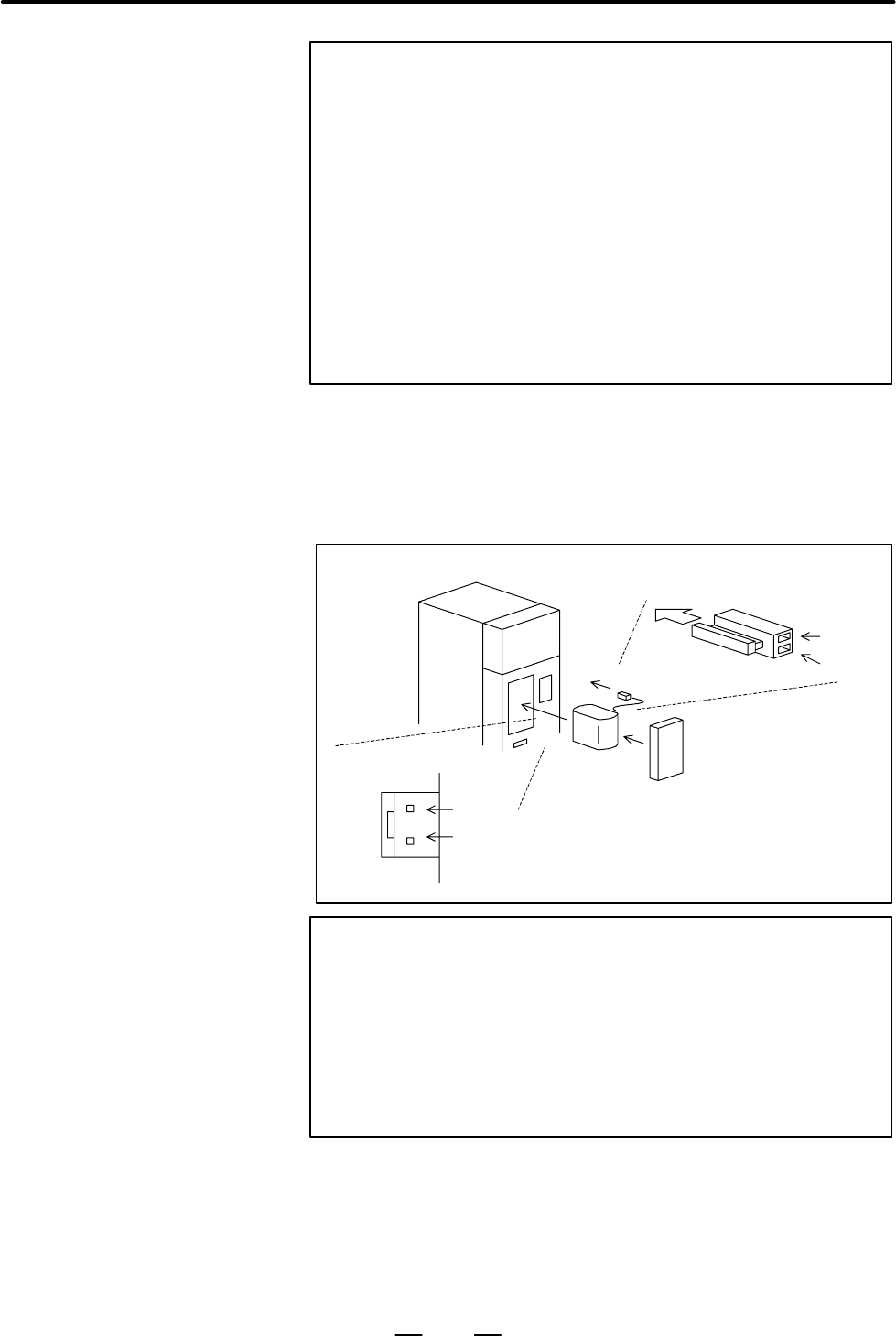

[Installation procedure for the battery]

(1)Remove the battery cover from the SVM.

(2)Install the battery in the SVM as shown in the figure below.

(3)Install the battery cover.

(4)Attach the battery connector to CX5X of the SVM.

Battery

SVM

Battery cover

Inserting direction

Red: +6 V

Black: 0 V

CX5X

+6 V

0 V

Connector

Cable side

CAUTION

1 When the battery is installed in the SVM from the side from

which the cable is drawn, the cable may be stretched tight,

which can lead to a poor contact condition. Therefore, install

the battery so that the cable is not extended tightly.

2 Be careful when handling the connector. See [Caution No.

2 for battery replacement] at the end of this section for

details.
