OPEN CNC (Machining Status Monitoring Package) Operators manual Page 124

Operators manual
5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE B-63364EN/03
- 108 -
The data in the assistance lists is reflected in the cells, and the monitor
item for monitoring the "Cycle Start Lamp signal (STL)" is registered.
3. Using the same steps, register the monitor item for monitoring the "Feed
Hold Lamp signal (SPL)" of the CNC machine on row 7 of the
worksheet.
The details of the "Feed Hold Lamp signal (SPL)" to be monitored are:
Item type : Machine Signal
Monitor item name : "SPL"
Source of monitoring : Bit 4 of the machine signal (F0000)
Monitoring condition : None (monitoring at the sampling interval)
Data acquisition type : Acquisition of the current value

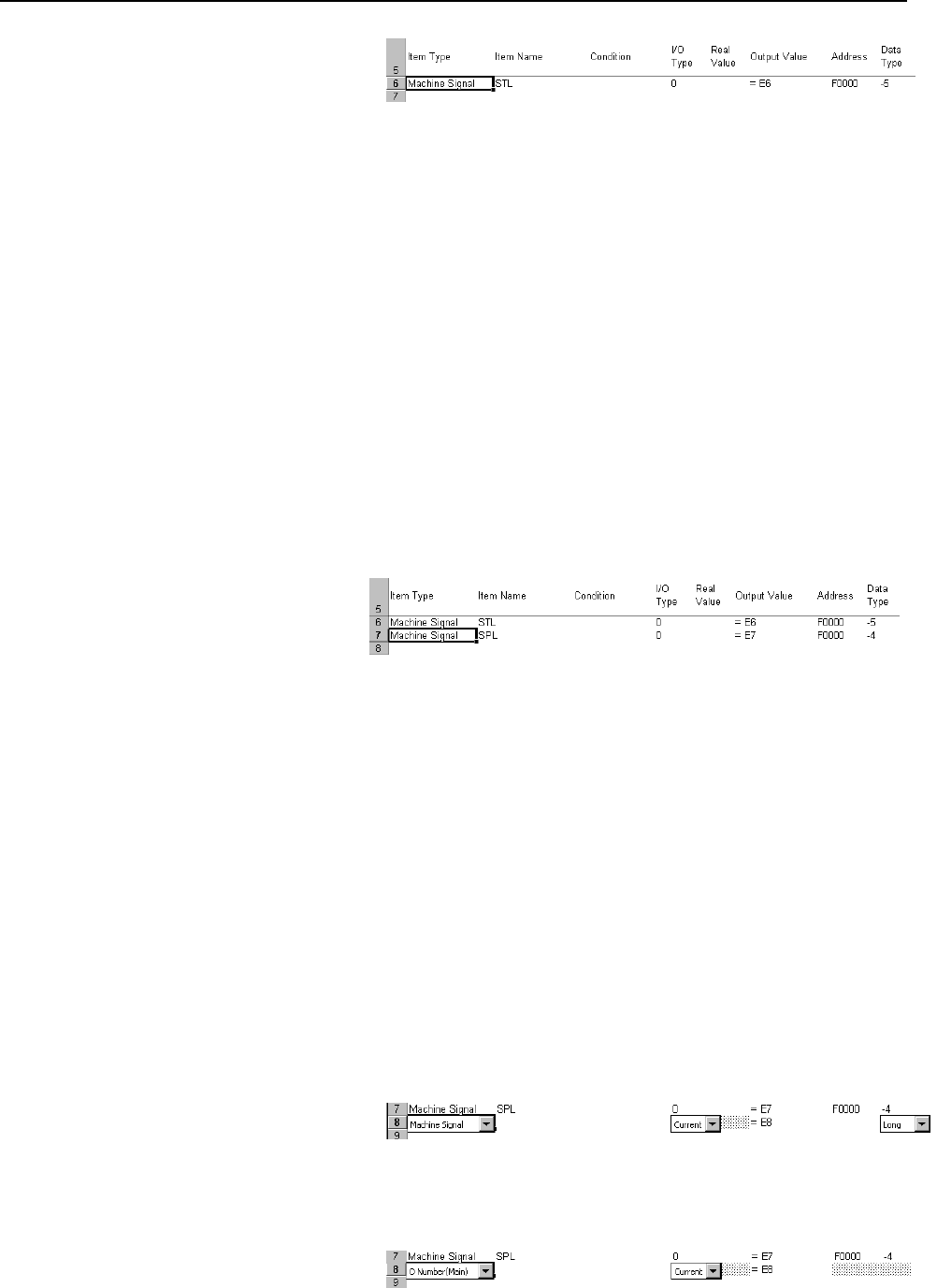

The figure below shows the monitor item registered for the "Feed Hold
Lamp signal (SPL)."
4. Using the monitor values of the already registered STL and SPL signals,
register the monitor items for monitoring main program information
(main program number, start time, end time, execution time, and
processing results).
Register the monitor item for monitoring the main program number.
The details of the main program number to be monitored are:
Item type : O Number (Main)
Monitor item name : "Main Program No."
Monitoring condition: Start of the program
Data acquisition type: Acquisition of the current value
Double-click the area of cell A8.
The lists assisting in registration appear on row 8.
• Item Type
Select "O Number (Main)."
Previous page
Next page
