OPEN CNC (Machining Status Monitoring Package) Operators manual Page 143

Operators manual
B-63364EN/03 5. SETTING AND REGISTERING DATA FOR EACH CNC MACHINE
- 127 -
5.2.5 Facilitating Registration and Modification by Displaying
Assistance Lists (Log Output Items)
When log output items are to be registered, assistance lists can be displayed to
facilitate registration and modification. Assistance lists enable the interactive
registration of log output items.
Procedure
To register a new log output item

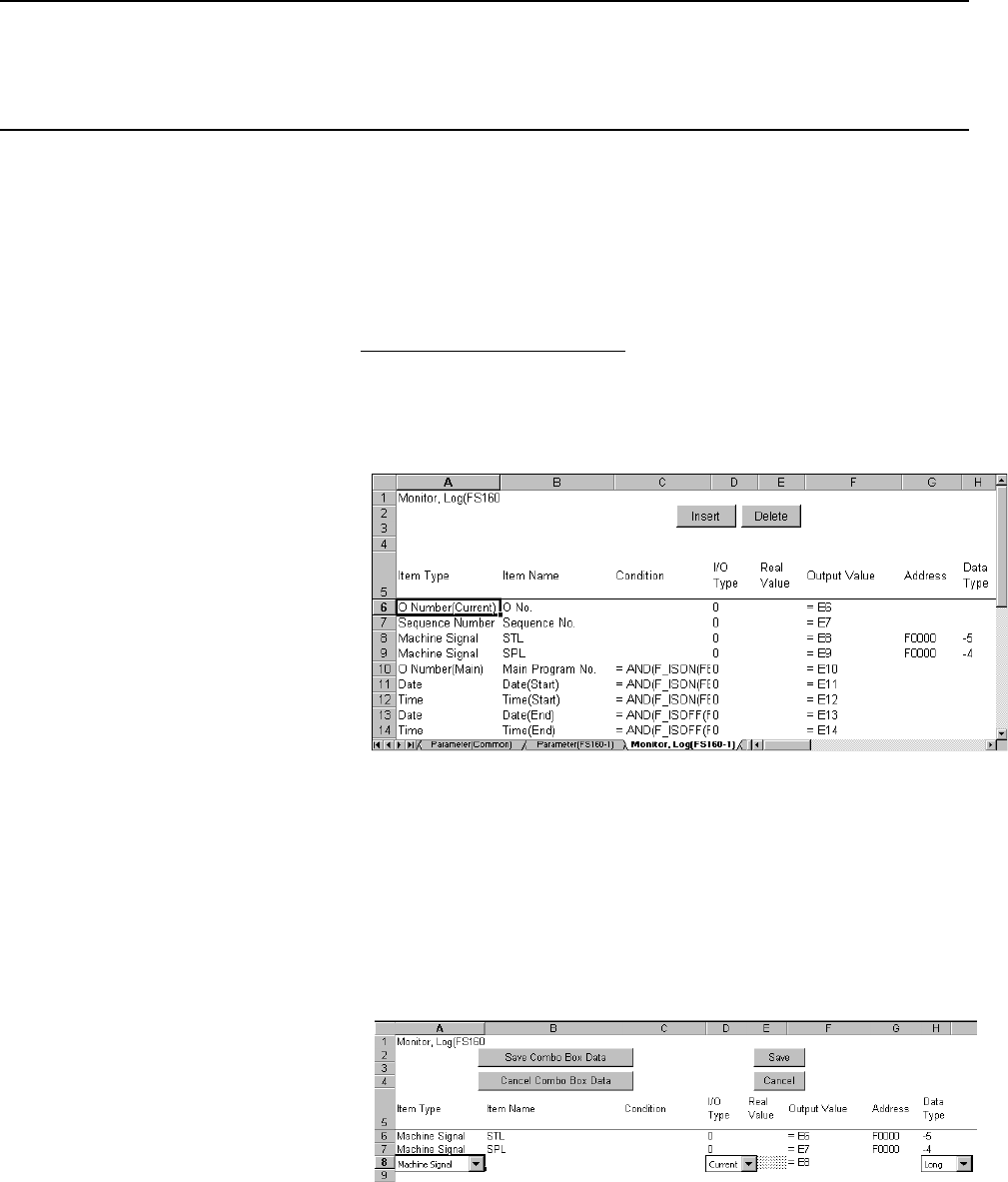

1. Select the [Monitor, Log(FS160-1)] worksheet.
(This worksheet is for registering monitor items and log output items
for the CNC machine named "FS160-1.")
2. Double-click a cell in a monitor item column on the row on which a
new log output item is to be registered.
For example, if a log output item is to be registered on row 8,
double-click the area of cell A8.
Assistance lists, the <Save Combo Box Data> button, and the <Cancel
Combo Box Data> button appear.
In the item type list, the "Machine Signal" item is selected.
3. From the item type list, select "Log Output." The assistance lists and
cell hatching change according to item type "Log Output."
The <Aux. Screen Display> button appears.
